5-Axis probe systems are probe heads that articulate in 2-axis using the CMM 3-axis simultaneously available with tactile sensor or scanning sensor measuring faster than conventional probe systems.
Function
A 5-axis probe system delivers unprecedented measuring speed and flexibility without conceding any accuracy. Unlike conventional CMM measuring probes and techniques, a 5-axis probe system avoids the speed versus accuracy compromise, boosting throughput of more accurate workpieces. 5-axis probe uses an articulating head that moves in two rotary axes as it measures, reducing acceleration inertial deflections in the machine structure that leads to measurement errors.
- 5-axis probe motion also eliminates time spent indexing the head

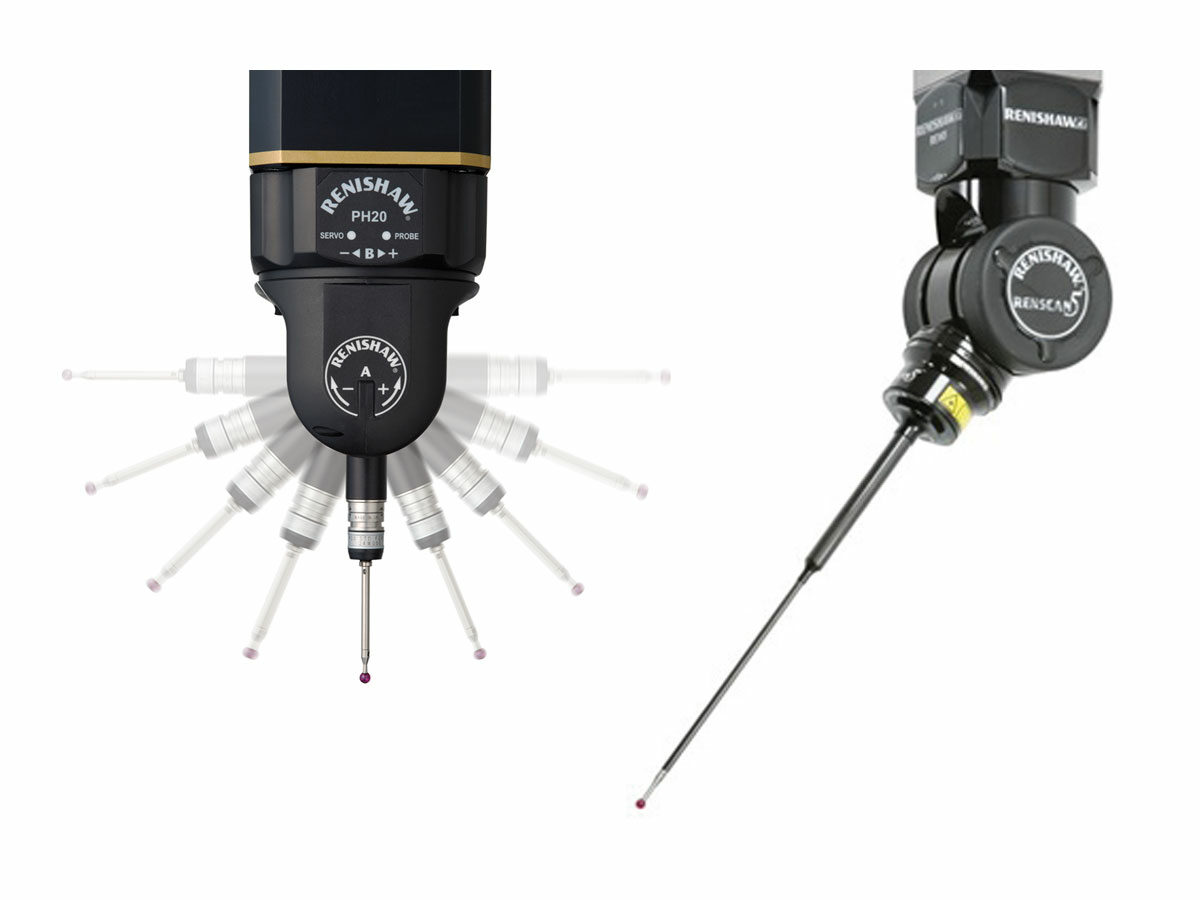

- Mitutoyo offers the REVO scanning 5-axis probe and the PH20 tactile 5-axis probe for CNC CMMs
- The REVO is ideal for surface finish measurements and dimensional inspections
- The PH20 uses unique head touches to allow measurement points to be taken by moving only the head, rather than the CMM structure
Product List
| Order No.: | 5-Axis Probe: |
Sensing Technology: |
Probe Mount: |
CMM Type: |
Software Required: |
Probe Sensors Supported: |
Head Axis Range: |
Angular Resolution: |
Movement Speed: |
Automatic Probe Changing: |
Automatic Module Changing: |
Change Rack System: |
Key Features: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A-5518-1095 | REVO | Scanning | Quill | CNC | MCOSMOS+Scanpak | RSP2 - High-speed 5-axis scanning RSP3~4, 6 - 3-axis scanning (SP25) SF2 - Surface finish measurement | A: 220° (+120~-100°) B: 360° ∞ (Ifinite) |
0.002 arc sec | 3 revs/sec | Yes | Yes | RCP TC-2, RCP2 | Infinite positioning, Rapid 5-axis moves, Multiple sensors |
| A-5669-0001 | PH20 | Tactile | Quill | CNC | MCOSMOS | Light, Standard, Medium, 6-Way, EM1, and EM2 modules | A: 230° (+115~-115°) B: 360° ∞ (Ifinite) |
0.4 μRadians | 3 revs/sec | No | Yes | TCR20 | Infinite positioning, Rapid head touches, Rapid 5-axis moves |
