Optical probes are non-contact sensors that utilizes a camera optics to do automatic focusing and edge detection tools to gather points used to generate geometry for measurement evaluation.
Features & Benefits

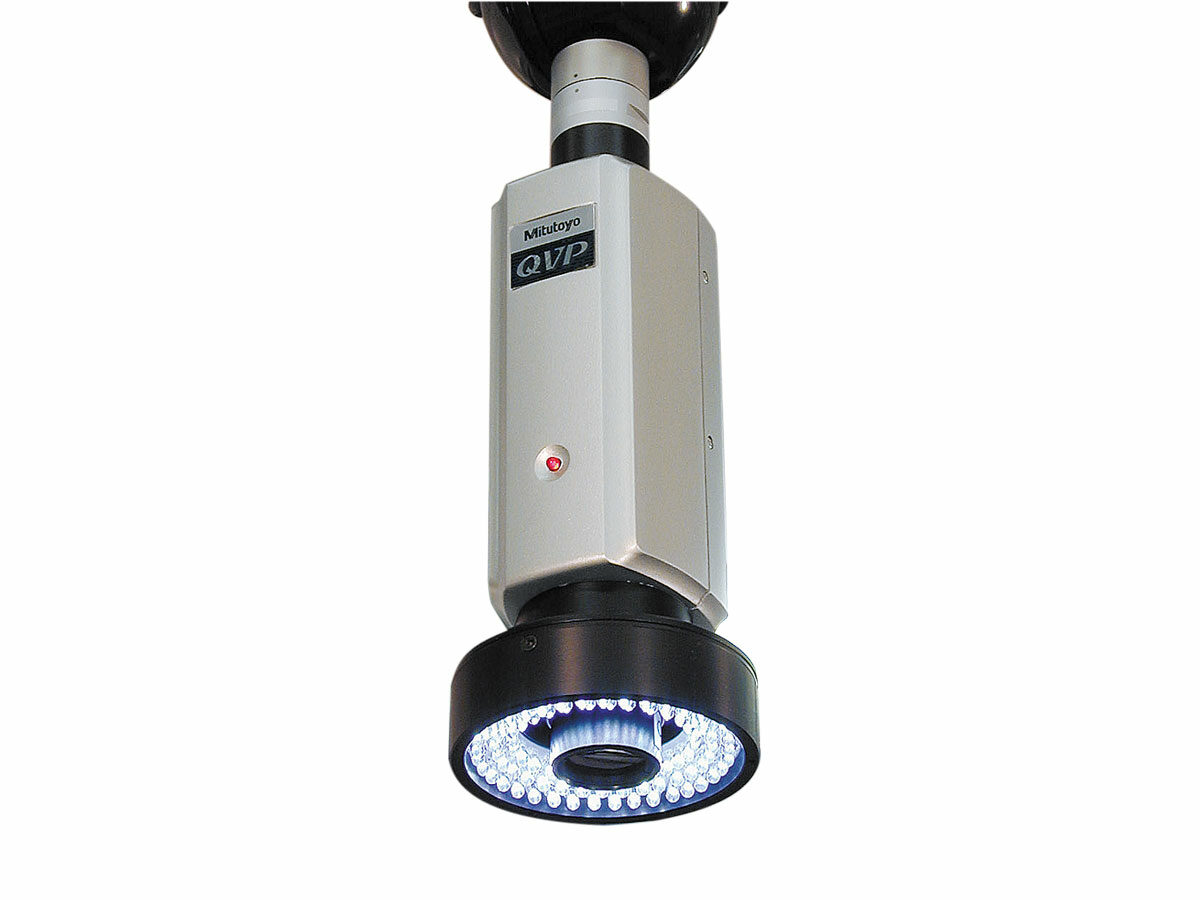

The Quick Vision Probe for Coordinate Measuring Machines is a vision probe developed on Mitutoyo state-of-the-art vision measurement technology to enable full automation of image measurement with a CNC CMM. The QVP probe performs form measurement by image processing micro geometry that cannot be measured by a contact probe. This optical, non-contact measurement method is ideal for measuring flexible bodies that are easily deformed by slight measuring forces of conventional touch probes.
- The QVP probe automatically detects workpiece edges using dedicated VISIONPAK software
- Various calculations process, ie: dimensions and geometrical deviations are performed by general purpose GEOPAK software
- Standard adjustable co-axial light in the lens system and white light LED ring illumination eliminates the need for auxiliary illumination
- The QVO can mount on an automatic probe changer for fully automated measurement
Product List
| Order No.: | Optical Probe: |
Probe Head: |
Probe Mount: |
CMM Type: |
Software Required: |
Sensing Technology: |
Optical Tube Magnification: |
Co-axial Illumination: |
Ring Illumination: |
Objective Magnification: |
Observation Range: |
Working Distance: |
Depth of Focus: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 359-051-6A | QVP | PH10M, PH10MQ, PH6M | Autojoint Connector | CNC | MCOSMOS+Visionpak | 1/2" CCD (B/W) | 0.5X | White Light LED | White Light LED | Standard: 3X Optional: 1X, 5X, 10X |
Standard: 3.2x4.3mm Optional: 9.6x12.8, 1.9x2.6, 1x1.3mm |
Standard: 72.3mm Optional: 59, 59.5, 44 mm |
Standard: 56mm Optional:306, 23, 8 mm |
