Mitutoyo developed a surface roughness sensor to allow a CNC CMM to be used to measure surface roughness measurements, eliminating workpiece changeover to a second measurement device.
Features & Benefits

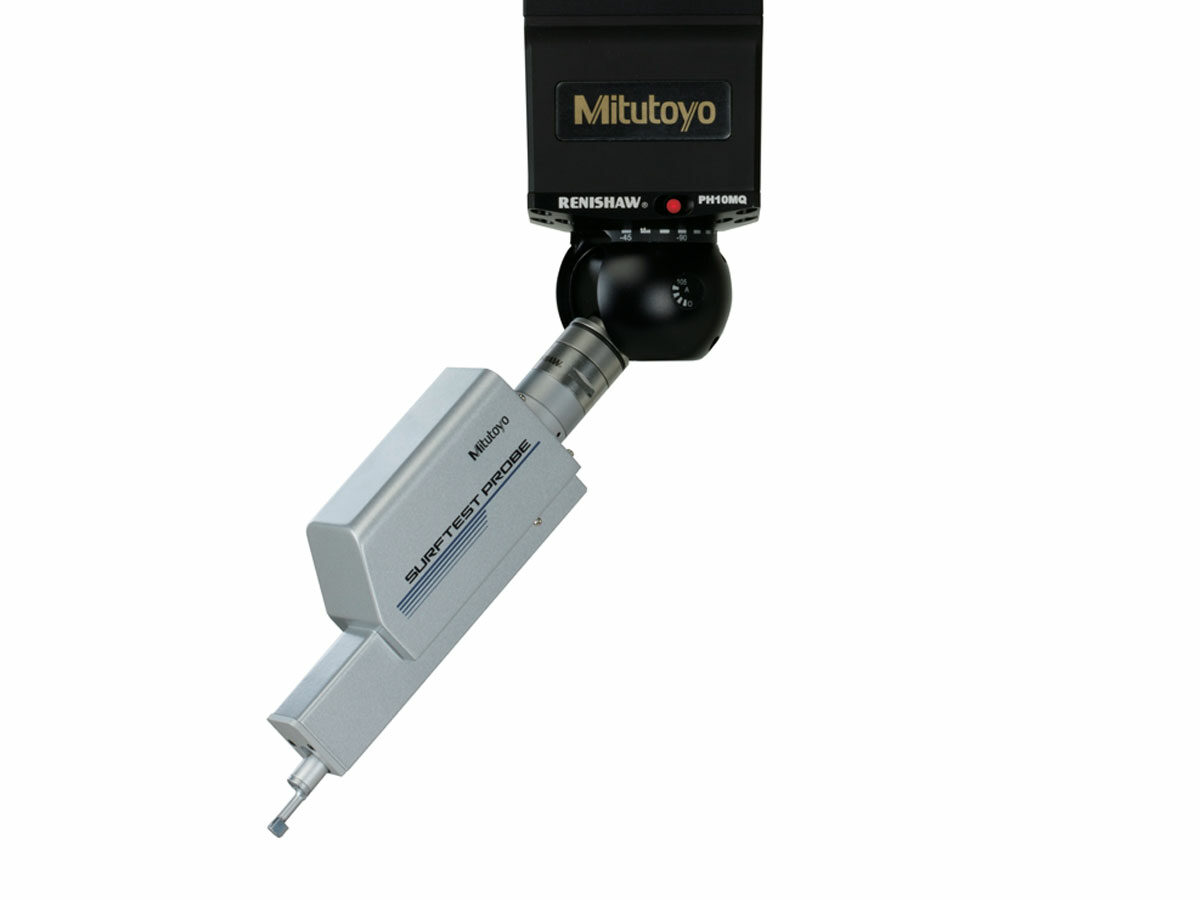

Mitutoyo made surface roughness measurements possible on a Coordinate Measuring Machine with a CMM Surftest probe. Derived from the successful Mitutoyo SJ-210/310 series of portable surface finish units, the Mitutoyo Surftest probe can execute roughness analysis without the need of moving the workpiece to a second machine. The Surftest probe requires dedicated SURFPAK-SP software and either the PH10M or PH10MQ probe head.
- Can be attached to our CNC CMM (Retro-fitting is possible depending on the model)
- The auto joint-probe system allows probe changing automatically between scanning (SP25M) and the CMM Surftest surface analysis probe. The measurement and evaluation of size, shape androughness, is completely automated with auto joint-probe changing.*
- PH10M(Q) allows surface roughness measurement for features requiring rotation
* Requires ACR3 change rack (OPTION)
Product List
| Order No.: | Roughness Probe: |
Probe Head: |
CMM Type: |
Software Required: |
Sensing Technology: |
Probe Mount: |
Measurement Range: |
Driving Range: |
Measurement Speed: |
Measuring Force: |
Supported Detectors: |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 64PKA116 | Surftest | PH10M, PH10MQ, PH6M | CNC | MCOSMOS+Surfpak-SP | Skidded | Autojoint Connector | AUTO 25, 100, 360μm | 17.5mm | 0.25, 0.5, 0.75 mm/sec | Standard: 4mN Option: 0.75mN |
Standard, Small Hole, Extra Small Hole, Deep Groove, Gear Tooth Surface |
