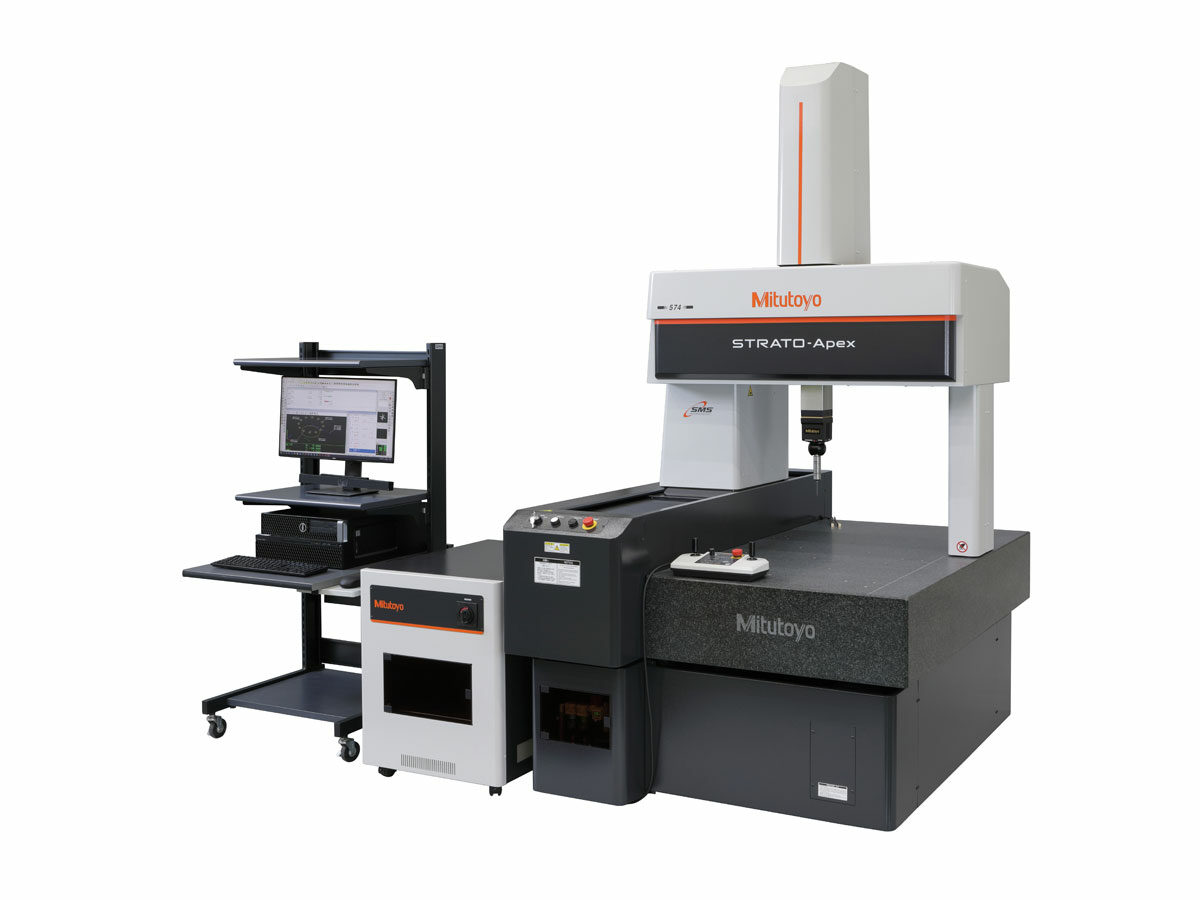

The Mitutoyo state-of-the-art STRATO Apex Series of CNC Coordinate Measuring Machines delivers high-accuracy measurements with smooth, high-speed operation for top scanning performance.
Features & Benefits
The STRATO-Apex series of CNC CMMs is available in several different model sizes, each offering high-drive speed and acceleration for top scanning performance with high-accuracy measurements. An innovative built-in, high-performance controller uses a digital servo system to process all control loops for position, speed and current as digital signals, reducing drift and deterioration. Improved structural rigidity and new compensation technology helps the STRATO-Apex series CMMs achieve high-performance and accuracy with minimal probing errors.
- Temperature compensation guarantees accuracy within the range of 18 to 22°C (STRATO APEX 574 19 to 21°C), without a temp-controlled room
- Vibration-damping unit prevents floor vibrations from reaching the main unit; detects load changes caused by movement of individual axes
- Ultra-high precision glass scales combined with high-performance reflective linear encoder creates ultra-high accuracy measurement on each axis
Technical Data
| Technology: | Coordinate Measuring Machine - CNC |
|---|---|
| Units: | Inch, Metric |
| Resolution: | 0.00000078" (0.00002mm) |
| Guide Method: | Air bearing on each axis |
| Worktable Material: |
Granite |
| Worktable Tapped Inserts: | M8 x 1.25mm |
| Environment: | 64.4-71.6°F 18-22°C |
| Vibration Stand: | Standard |
| Probe System: | PH10MQ |
| Touch Trigger Probe: | TP200 |
| Scanning Probe: | MPP, SP25, SP80 |
| Laser Probe: | SurfaceMeasure |
| Optical Probe: |
QVP |
| Surface Roughness Probe: | SurfTest |
| Product Image: | - |
Product List
| Order No.: | Product Image: | CMM Model: |
Range X-Axis: |
Range Y-Axis: |
Range Z-Axis: |
Worktable Size: |
Workpiece Max Height: |
Workpiece Max Load: |
Machine Mass: |
Machine Dimensions: |
Air Supply: |
Air Consumption: |
Air Source: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 355-702 |  |
STRATO APEX 574 |
19.68" (500mm) |
27.55" (700mm) |
15.74" (400mm) |
26.61 x 55.90" (676 x 1420mm) |
22.04" (560mm) |
396lbs (180kg) |
3,373lbs (1530kg) |
49.99x66.92x94.88" (1270x1700x2410mm) |
58.0PSI (0.4MPa) |
2.11CFM (60L/min) |
4.23CFM (120L/min) |
| 355-705-10 |  |
STRATO APEX 776 |
27.55" (700mm) |
27.55" (700mm) |
23.62" (600mm) |
33.93 x 55.90" (862 x 1420mm) |
30.31" (770mm) |
1,102lbs (500kg) |
4,177lbs (1895kg) |
57.48x75.19x111.41" (1460x1910x2830mm) |
58.0PSI (0.4MPa) |
2.11CFM (60L/min) |
4.23CFM (120L/min) |
| 355-707-10 |  |
STRATO APEX 7106 |
27.55" (700mm) |
39.36" (1000mm) |
23.62" (600mm) |
33.93 x 67.71" (862 x 1720mm) |
30.31" (770mm) |
1,763lbs (800kg) |
4,806lbs (2180kg) |
57.48x87.00x111.41" (1460x2210x2830mm) |
58.0PSI (0.4MPa) |
2.11CFM (60L/min) |
4.23CFM (120L/min) |
| 355-709-10 |  |
STRATO APEX 9106 |
35.43" (900mm) |
39.36" (1000mm) |
23.62" (600mm) |
41.81 x 67.71" (1062 x 1720mm) |
30.31" (770mm) |
1,763lbs (800kg) |
5,313lbs (2410kg) |
65.35x87.00x111.41" (1660x2210x2830mm) |
58PSI (0.4MPa) |
2.11CFM (60L/min) |
4.23CFM (120L/min) |
| 355-712-10 | |
STRATO APEX 9166 |
35.43" (900mm) |
62.99" (1600mm) |
23.62" (600mm) |
41.81 x 91.33" (1062 x 2320mm) |
30.31" (770mm) |
2,645lbs (1200kg) |
6,801lbs (3085kg) |
65.35x110.62x111.41" (1660x2810x2830mm) |
58.0PSI (0.4MPa) |
2.11CFM (60L/min) |
4.23CFM (120L/min) |
| 355-714 | - | STRATO APEX 162012 |
62.99" (1600mm) |
78.74" (2000mm) |
47.24" (1200mm) |
72.8 x 127.9" (1850 x 3280mm) |
53.14" (1350mm) |
7,716lbs (3500kg) |
24,581lbs (11150kg) |
110.43x147.24x170.86" (2805x3740x4340mm) |
58.0PSI (0.4MPa) |
3.53CFM (100L/min) |
8.82CFM (250L/min) |
| 355-716 | - | STRATO APEX 163012 |
62.99" (1600mm) |
118.11" (3000mm) |
47.24" (1200mm) |
72.8 x 167.3" (1850 x 4280mm) |
53.14" (1350mm) |
8,818lbs (4000kg) |
33,730lbs (15300kg) |
110.43x186.61x172.83" (2805x4740x4390mm) |
58.0PSI (0.4MPa) |
3.53CFM (100L/min) |
8.82CFM (250L/min) |
| 355-718 | - | STRATO APEX 162016 |
62.99" (1600mm) |
78.74" (2000mm) |
62.99" (1600mm) |
72.8 x 127.9" (1850 x 3280mm) |
68.89" (1750mm) |
7,716lbs (3500kg) |
24,691lbs (11200kg) |
110.43x147.24x202.36" (2805x3740x5140mm) |
58.0PSI (0.4MPa) |
3.53CFM (100L/min) |
8.82CFM (250L/min) |
| 355-721 | - | STRATO APEX 163016 |
62.99" (1600mm) |
118.11" (3000mm) |
62.99" (1600mm) |
72.8 x 167.3" (1850 x 4280mm) |
68.89" (1750mm) |
8,818lbs (4000kg) |
33,840lbs (15350kg) |
110.43x186.61x204.33" (2805x4740x51+J590mm) |
58.0PSI (0.4MPa) |
3.53CFM (100L/min) |
8.82CFM (250L/min) |
