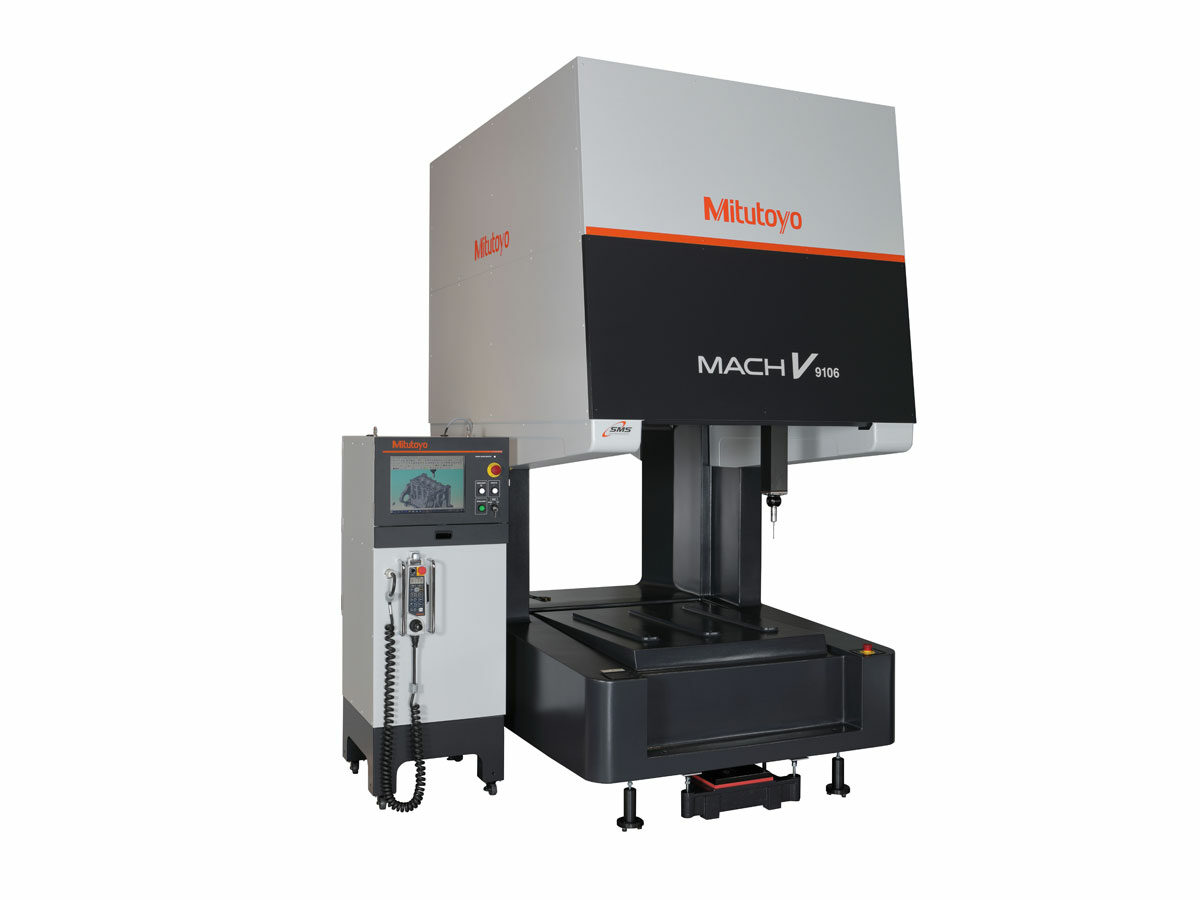

The MACH-V is the world’s fastest vertical axis near-line/in-line CNC CMM making it an optimal, flexible measuring system that replaces dedicated gauge measurement in a production line without sacrificing accuracy.
Features & Benefits
The Mitutoyo MACH-V Coordinate Measuring Machine provides great measurement flexibility in a space-saving design. Its barycentric drive system minimizes slide rotation to provide higher speed and throughput with minimum accuracy deterioration compared with other commonly used CMMs. The MACH-V system can be incorporated into or near the manufacturing line and provide pre/post machining feedback to your machine tools for machining adjustments to maximize machining operations.
- The world’s fastest vertical-axis in-line CNC CMM with 8,840mm/s² acceleration
- Open access to the measuring area from the front, back, left or right increases flexibility in loading workpieces
- Improved structural design, air-free operations and improved dust resistance reduces maintenance
- Temperature compensation guarantees accuracy within the range of 41 to 95°F (5 to 35°C) without a temp-controlled room
Technical Data
| Technology: | Coordinate Measuring Machine - CNC |
|---|---|
| Units: | Inch, Metric |
| Resolution: | 0.000004" (0.0001mm) |
| Guide Method: | Linear guide each axis |
| Vibration Stand: | Not Applicable |
| Probe System: | PH10MQ |
| Touch Trigger Probe: | TP7 |
| Scanning Probe: | SP25 |
| Laser Probe: | SurfaceMeasure |
| Optical Probe: |
QVP |
| Surface Roughness Probe: | SurfTest |
Product List
| Order No.: | Model: | Range X-Axis: |
Range Y-Axis: |
Range Z-Axis: |
Worktable Size: |
Workpiece Max Height: |
Workpiece Max Load: |
Machine Mass: |
Machine Dimensions: |
Air Supply: |
Air Consumption: |
Air Source: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 360-224-10 | MACH-V 9106 | 35.43" (900mm) |
39.37" (1000mm) |
23.624" (600mm) |
41.96 x 35.62" (1066 x 905mm) |
31.50" (800mm) |
300lbs (150kg) |
9105lbs (4130kg) |
58.14x115.82x114.17" (1477x2942x2900mm) |
Air not required | Air not required | Air not required |
