The highly versatile CRYSTA-Apex V series CNC Coordinate Measuring Machines offer multi-sensor flexibility with vision, laser, surface finish and scanning probe technologies for fast and accurate measurements.
Features & Benefits
The CRYSTA-Apex V series is a new generation CNC CMM that delivers great versatility and speed while leveraging IoT technologies for smart factory opportunities. Available in a size range of 400mm to 4000mm (15.7″ to 157.47″), the CRYSTA-Apex V provides accuracy that is unmatched by any previous general purpose measuring machine for small to mid-sized workpieces.
• SMS (Smart Measuring System) – system for on-line monitoring and operational status of a measuring machine with data visualization to enable product quality improvement
• Real-time CMM and workpiece temperature compensation (standard feature)
• High-speed optimal path scanning with high-speed active scanning
• Multi-sensor support with an array of contact and non-contact probes that includes tactile, scanning, laser, optical, surface finish measuring
Technical Data
| Technology: | Coordinate Measuring Machine - CNC |
|---|---|
| Units: | Inch, Metric |
| Resolution: | 0.000004" (0.0001mm) |
| Guide Method: | Air bearing on each axis |
| Worktable Material: |
Granite |
| Worktable Tapped Inserts: | M8 x 1.25mm |
| Environment: | 64.4-71.6°F 18-22°C |
| Vibration Stand: | Optional |
| Scanning Probe: | MPP, SP25, SP80 |
| Laser Probe: | SurfaceMeasure |
| Surface Roughness Probe: | SurfTest |
Product List
| Order No.: | CMM Model: |
Range X-Axis: |
Range Y-Axis: |
Range Z-Axis: |
Worktable Size: |
Workpiece Max Height: |
Workpiece Max Load: |
Machine Mass: |
Machine Dimensions: |
Air Supply: |
Air Consumption: |
Air Source: |
Probe System: | Touch Trigger Probe: | Optical Probe: |
Accessories: | Required Accessories: | Optional Accessories: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

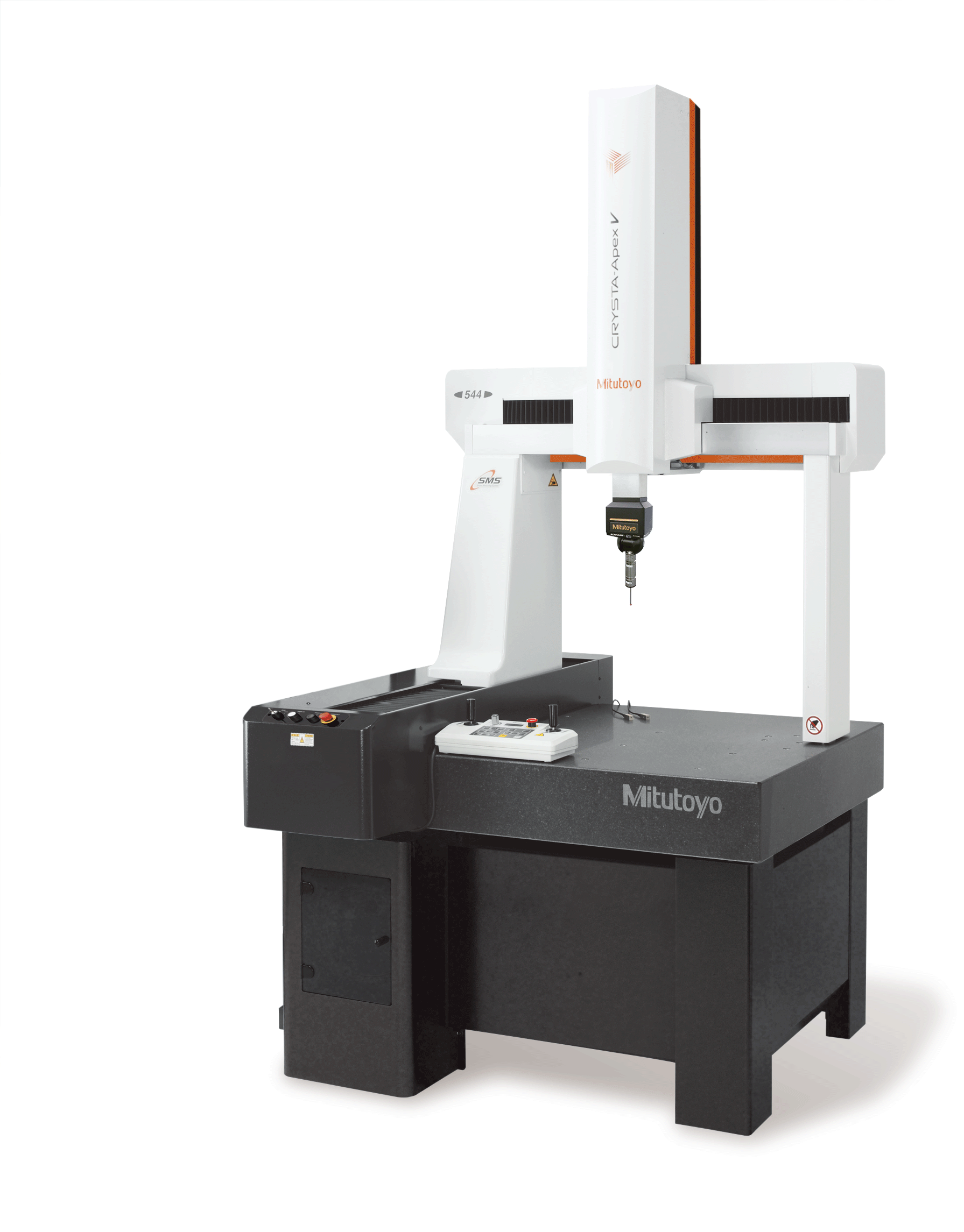

| 191-121 | CRYSTA-APEX V544 |
19.68" (500mm) |
15.74" (400mm) |
15.74" (400mm) |
25.11 x 33.86" (638 x 860mm) |
21.45" (545mm) |
396lbs (180kg) |
1,135lbs (515kg) |
42.60x46.88x86.02" (1082x1191x2185mm) |
58PSI (0.4MPa) |
1.76CFM (50L/min) |
3.53CFM (100L/min) |
PH20/PH10MQ | TP20/TP200 | QVP | Accessories | Accessories | Accessories |
| 191-125 | CRYSTA-APEX V574 |
19.68" (500mm) |
27.55" (700mm) |
15.74" (400mm) |
25.11 x 45.67" (638 x 1160mm) |
21.45" (545mm) |
396lbs (180kg) |
1,377lbs (625kg) |
42.60x60.94x86.02" (1082x1548x2185mm) |
58.0PSI (0.4MPa) |
1.76CFM (50L/min) |
3.53CFM (100L/min) |
- | - | - | Accessories | Accessories | Accessories |
| 191-481 | CRYSTA-APEX V121210 |
47.24" (1200mm) |
47.24" (1200mm) |
39.36" (1000mm) |
55.90 x 67.71" (1420 x 2165mm) |
47.24" (1200mm) |
4,409lbs (2000kg) |
8,928lbs (4050kg) |
86.61x102.16x143.50" (2200x2595x3645mm) |
1200PSI (8.27MPa) |
3.53CFM (100L/min) |
5.29CFM (150L/min) |
- | - | - | - | - | |
| 191-485 | CRYSTA-APEX V122010 |
47.24" (1200mm) |
78.74" (2000mm) |
39.36" (1000mm) |
55.90 x 116.73" (1420 x 2965mm) |
47.24" (1200mm) |
5,511lbs (2500kg) |
13,558lbs (6150kg) |
86.61x133.66x143.50" (2200x3395x3645mm) |
1200PSI (8.27MPa) |
3.53CFM (100L/min) |
5.29CFM (150L/min) |
- | - | - | - | - | |
| 191-489 | CRYSTA-APEX V123010 |
47.24" (1200mm) |
118.11" (3000mm) |
39.36" (1000mm) |
55.90 x 156.10" (1420 x 3965mm) |
47.24" (1200mm) |
6,613lbs (3000kg) |
20,084lbs (9110kg) |
86.61x173.03x143.50" (2200x4395x3645mm) |
1200PSI (8.27MPa) |
3.53CFM (100L/min) |
5.29CFM (150L/min) |
- | - | - | - | - | |

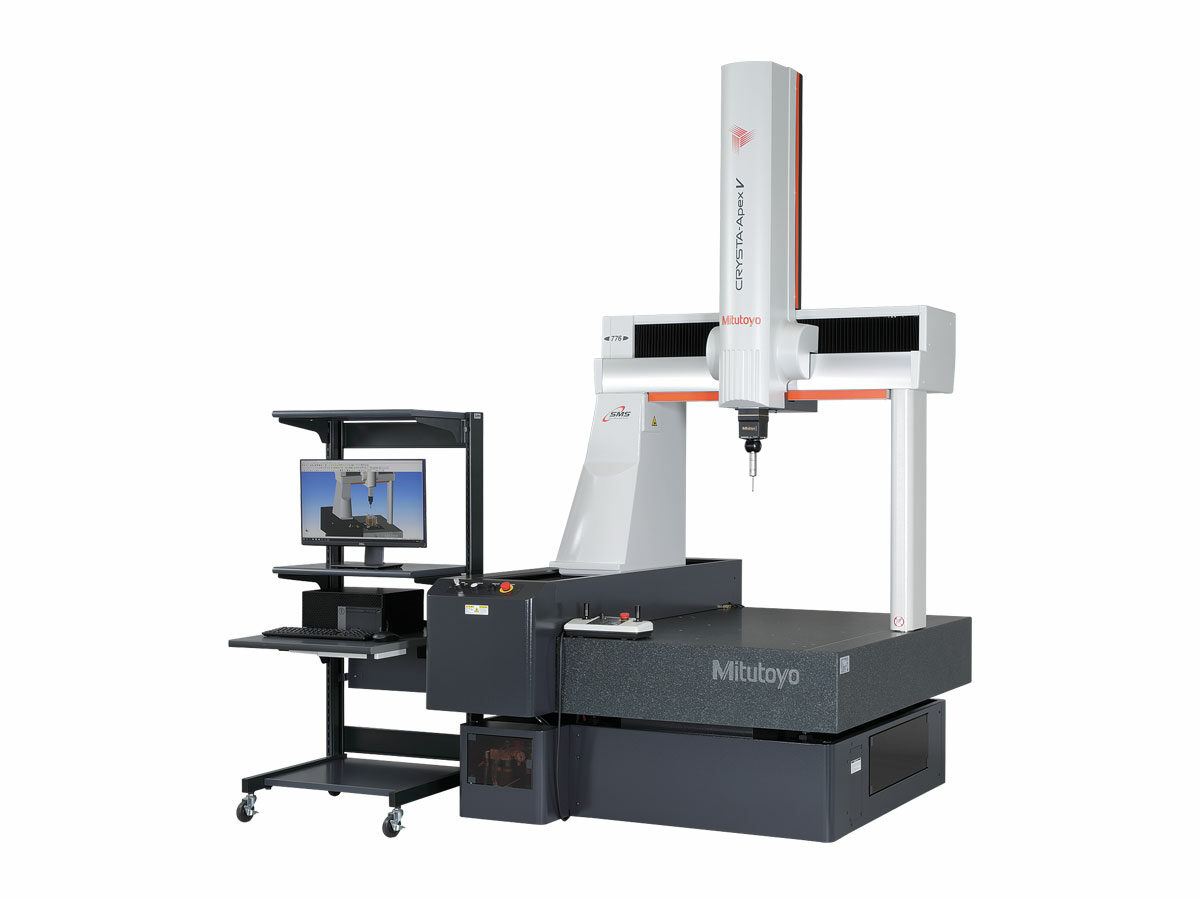

| 191-561 | CRYSTA-APEX V776 |
27.55" (700mm) |
27.55" (700mm) |
23.62" (600mm) |
34.64 x 55.90" (880 x 1420mm) |
31.49" (800mm) |
1,763lbs (800kg) |
3,692lbs (1675kg) |
57.87x66.92x107.48" (1470x1700x2730mm) |
58PSI (0.4MPa) |
2.11CFM (60L/min) |
4.23CFM (120L/min) |
PH20/PH10MQ | TP20/TP200 | QVP | Accessories | Accessories | Accessories |
| 191-565 | CRYSTA-APEX V7106 |
27.55" (700mm) |
39.36" (1000mm) |
23.62" (600mm) |
34.64 x 67.71" (880 x 1720mm) |
31.49" (800mm) |
2,204lbs (1000kg) |
4,301lbs (1951kg) |
57.87x78.73x107.48" (1470x2000x2730mm) |
58PSI (0.4MPa) |
2.11CFM (60L/min) |
4.23CFM (120L/min) |
PH20/PH10MQ | TP20/TP200 | QVP | Accessories | Accessories | Accessories |

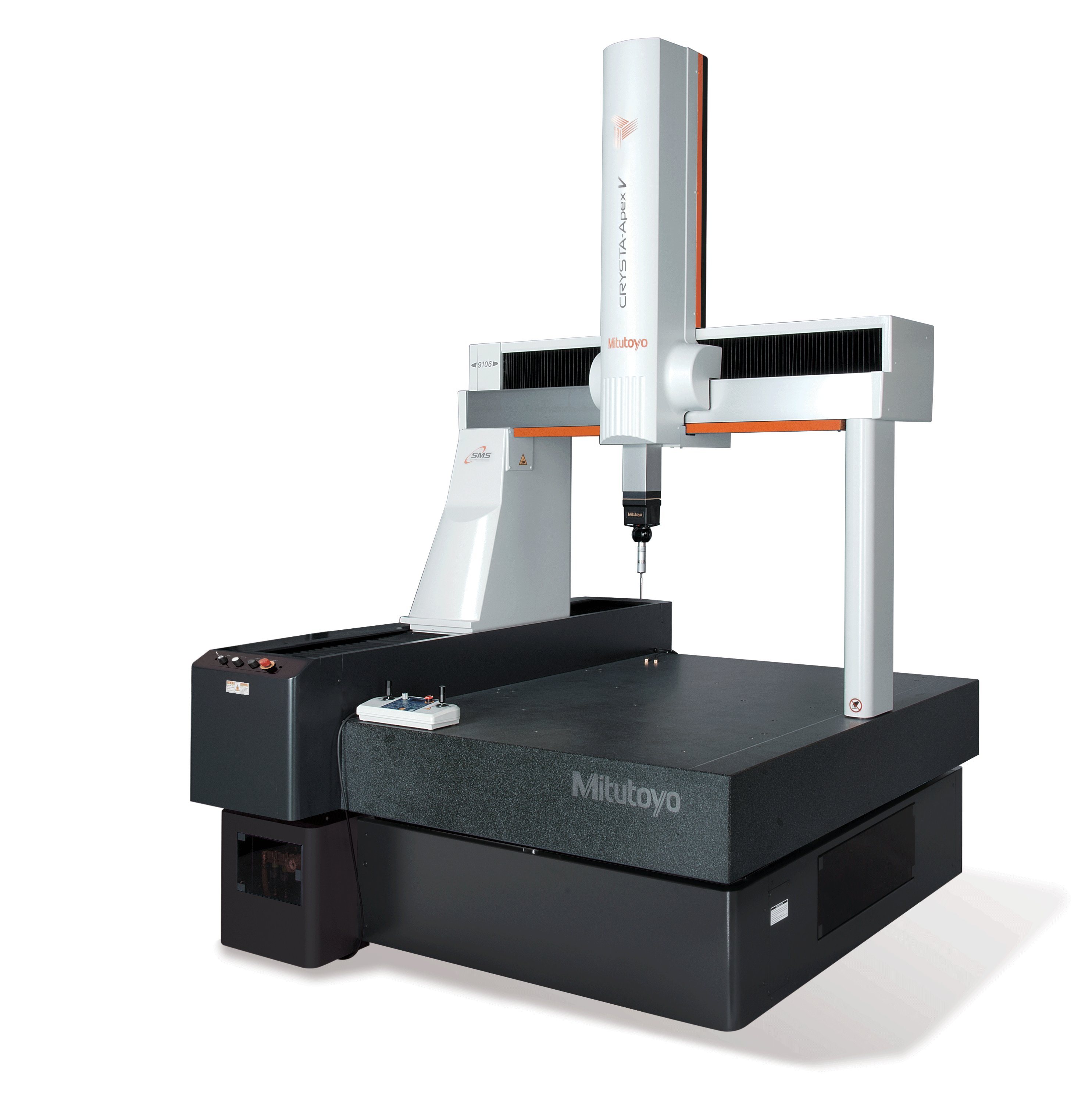

| 191-569 | CRYSTA-APEX V9106 |
35.43" (900mm) |
39.36" (1000mm) |
23.62" (600mm) |
42.51 x 67.71" (1080 x 1720mm) |
31.49" (800mm) |
2,645lbs (1200kg) |
4,918lbs (2231kg) |
65.74x78.73x107.48" (1670x2000x2730mm) |
58PSI (0.4MPa) |
2.11CFM (60L/min) |
4.23CFM (120L/min) |
PH20/PH10MQ | TP20/TP200 | QVP | Accessories | Accessories | Accessories |
| 191-574 | CRYSTA-APEX V9166 |
35.43" (900mm) |
62.99" (1600mm) |
23.62" (600mm) |
42.51 x 91.33" (1080 x 2320mm) |
31.49" (800mm) |
3,306lbs (1500kg) |
6,322lbs (2868kg) |
65.74x107.87x107.48" (1670x2740x2730mm) |
58PSI (0.4MPa) |
2.11CFM (60L/min) |
4.23CFM (120L/min) |
PH20/PH10MQ | TP20/TP200 | QVP | Accessories | Accessories | Accessories |
| 191-578 | CRYSTA-APEX V9206 |
35.43" (900mm) |
78.73" (2000mm) |
23.62" (600mm) |
42.51 x 107.08" (1080 x 2720mm) |
31.49" (800mm) |
3,968lbs (1800kg) |
8,624lbs (3912kg) |
65.74x126.77x107.48" (1670x3220x2730mm) |
58PSI (0.4MPa) |
2.11CFM (60L/min) |
4.23CFM (120L/min) |
PH20/PH10MQ | TP20/TP200 | QVP | Accessories | Accessories | Accessories |
| 191-583 | CRYSTA-APEX V9108 |
35.43" (900mm) |
39.36" (1000mm) |
31.49" (800mm) |
42.51 x 67.71" (1080 x 1720mm) |
39.36" (1000mm) |
2,645lbs (1200kg) |
4,985lbs (2261kg) |
65.74x78.73x123.22" (1670x2000x3130mm) |
58PSI (0.4MPa) |
2.11CFM (60L/min) |
4.23CFM (120L/min) |
PH20/PH10MQ | TP20/TP200 | QVP | Accessories | Accessories | Accessories |
| 191-587 | CRYSTA-APEX V9168 |
35.43" (900mm) |
62.99" (1600mm) |
31.49" (800mm) |
42.51 x 91.33" (1080 x 2320mm) |
39.36" (1000mm) |
3,306lbs (1500kg) |
6,389lbs (2898kg) |
65.74x107.87x123.22" (1670x2740x3130mm) |
58PSI (0.4MPa) |
2.11CFM (60L/min) |
4.23CFM (120L/min) |
PH20/PH10MQ | TP20/TP200 | QVP | Accessories | Accessories | Accessories |
| 191-592 | CRYSTA-APEX V9208 |
35.43" (900mm) |
78.74" (2000mm) |
31.49" (800mm) |
42.51 x 107.08" (1080 x 2720mm) |
39.36" (1000mm) |
3,968lbs (1800kg) |
8,691lbs (3942kg) |
65.74x126.77x123.22" (1670x3220x3130mm) |
58PSI (0.4MPa) |
2.11CFM (60L/min) |
4.23CFM (120L/min) |
PH20/PH10MQ | TP20/TP200 | QVP | Accessories | Accessories | Accessories |
| 191-812H | CRYSTA-APEX 203016 |
78.74" (2000mm) |
118.11" (3000mm) |
62.99" (1600mm) |
86.61 x 165.55" (2200 x 4205mm) |
70.86" (1800mm) |
8,818lbs (4000kg) |
31,085lbs (14100kg) |
122.04x183.07x196.45" (3100x4650x4990mm) |
58PSI (0.4MPa) |
5.29CFM (150L/min) |
7.06CFM (200L/min) |
PH10MQ | TP200 | - | - | - | |
| 191-816H | CRYSTA-APEX 204016 |
78.74" (2000mm) |
157.47" (4000mm) |
62.99" (1600mm) |
86.61 x 204.92" (2200 x 5205mm) |
70.86" (1800mm) |
11,023lbs (5000kg) |
42,769lbs (19400kg) |
122.04x222.44x198.42" (3100x5650x5040mm) |
58PSI (0.4MPa) |
5.29CFM (150L/min) |
7.06CFM (200L/min) |
PH10MQ | TP200 | - | - | - | |
| 191-848 | CRYSTA-APEX 162012 |
62.99" (1600mm) |
78.74" (2000mm) |
47.24" (1200mm) |
70.86 x 126.18" (1800 x 3205mm) |
55.11" (1400mm) |
6,613lbs (3000kg) |
20,502lbs (9300kg) |
106.29x143.70x162.99" (2700x3650x4140mm) |
58PSI (0.4MPa) |
5.29CFM (150L/min) |
7.06CFM (200L/min) |
- | - | - | - | - | |
| 191-848H | CRYSTA-APEX 162012 |
62.99" (1600mm) |
118.11" (3000mm) |
47.24" (1200mm) |
70.86 x 126.18" (1800 x 3205mm) |
55.11" (1400mm) |
7,716lbs (3500kg) |
23,368lbs (10600kg) |
106.29x183.07x162.99" (2700x4650x4140mm) |
58PSI (0.4MPa) |
5.29CFM (150L/min) |
7.06CFM (200L/min) |
- | - | - | - | - | |
| 191-853 | CRYSTA-APEX 164012 |
62.99" (1600mm) |
157.47" (4000mm) |
47.24" (1200mm) |
70.86 x 126.18" (1800 x 3205mm) |
55.11" (1400mm) |
9,920lbs (4500kg) |
32,628lbs (14800kg) |
106.29x222.44x164.96" (2700x5650x4190mm) |
58PSI (0.4MPa) |
5.29CFM (150L/min) |
7.06CFM (200L/min) |
- | - | - | - | - | |
| 191-853H | CRYSTA-APEX 162016 |
62.99" (1600mm) |
78.74" (2000mm) |
62.99" (1600mm) |
70.86 x 126.18" (1800 x 3205mm) |
70.86" (1800mm) |
6,613lbs (3000kg) |
20,613lbs (9350kg) |
106.29x143.70x194.48" (2700x3650x4940mm) |
58PSI (0.4MPa) |
5.29CFM (150L/min) |
7.06CFM (200L/min) |
- | - | - | - | - | |
| 191-857 | CRYSTA-APEX 163016 |
62.99" (1600mm) |
118.11" (3000mm) |
62.99" (1600mm) |
70.86 x 126.18" (1800 x 3205mm) |
70.86" (1800mm) |
7,716lbs (3500kg) |
23,479lbs (10650kg) |
106.29x183.07x194.48" (2700x4650x4940mm) |
58PSI (0.4MPa) |
5.29CFM (150L/min) |
7.06CFM (200L/min) |
- | - | - | - | - | |
| 191-857H | CRYSTA-APEX 164016 |
62.99" (1600mm) |
157.47" (4000mm) |
62.99" (1600mm) |
70.86 x 126.18" (1800 x 3205mm) |
70.86" (1800mm) |
9,920lbs (4500kg) |
32,738lbs (14850kg) |
106.29x222.44x196.45" (2700x5650x4990mm) |
58PSI (0.4MPa) |
5.29CFM (150L/min) |
7.06CFM (200L/min) |
- | - | - | - | - |
