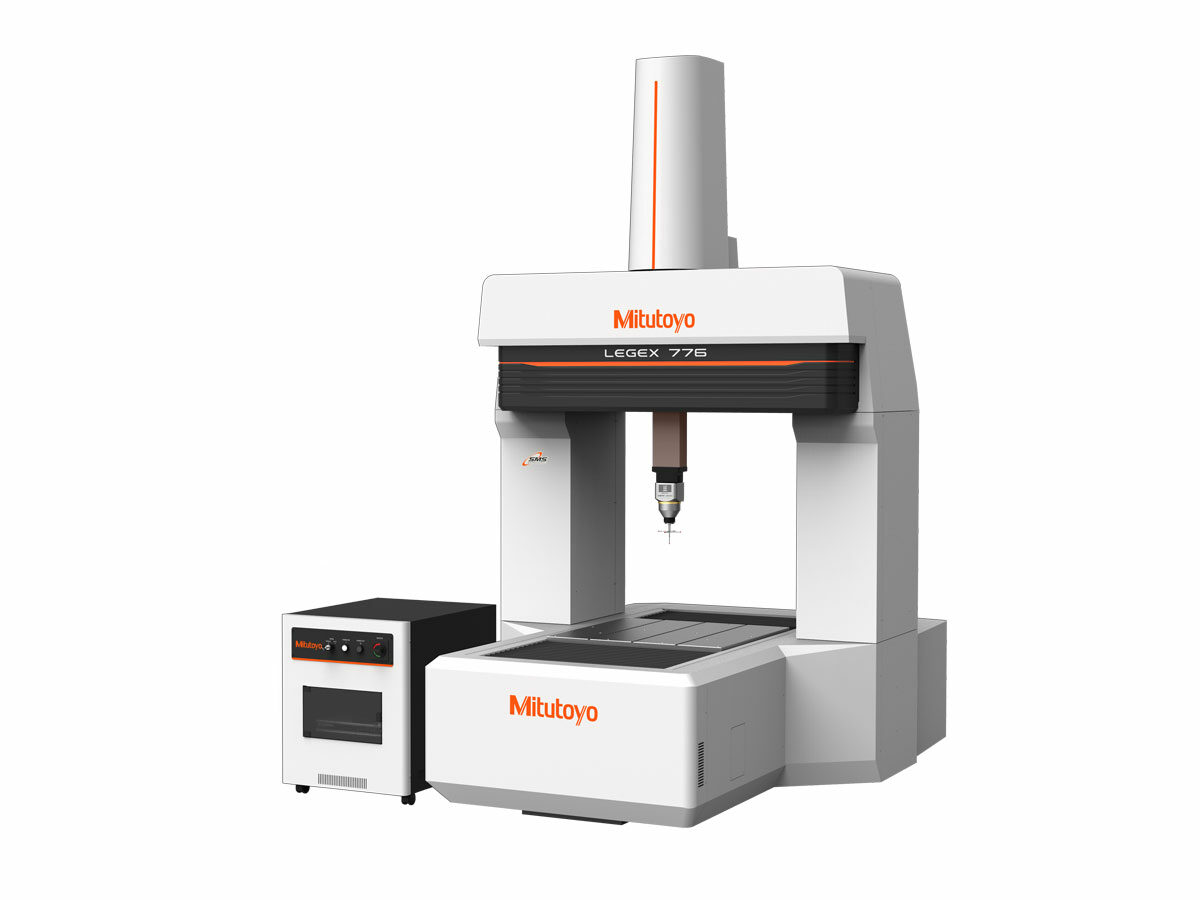

The Mitutoyo LEGEX Series ultra-high accuracy fixed-bridge CNC CMM is the ultimate in the world’s high-accuracy measurement technology. LEGEX series CMMs are suitable for complex small-to medium-sized workpieces that require dimensional accuracies with small tolerances like gears, bearings, lenses and precision dies.
Features & Benefits
The Mitutoyo LEGEX series CMMs incorporates an ultra-high accuracy scale unit with crystallized glass scales (thermal expansion coefficient of 0.01×10-6/K) and a high-resolution, high-performance reflection linear encoder providing premium positioning performance. The fixed-bridge design allows the X- and Y-axis to operate independently of each other while eliminating pitch and yaw errors. The LEGEX’s “center of gravity” drive system allows for very high speed while taking ultra-accurate measurements.
- Air-damped spring isolators with an auto-leveling function eliminates factory floor vibrations from the machine
- Rigid, durable construction with fixed-bridge design eliminates measurement fluctuations due to axis movement
- FEM structure analysis simulation, guarantees geometric motion accuracy has minimal errors from fluctuations in the load and other variables
Technical Data
| Technology: | Coordinate Measuring Machine - CNC |
|---|---|
| Units: | Inch, Metric |
| Resolution: | 0.0000004" (0.00001mm) |
| Guide Method: | Air bearing on each axis |
| Vibration Stand: | Standard |
| Probe System: | PH10MQ |
| Touch Trigger Probe: | TP7 |
| Scanning Probe: | MPP, SP25 |
| Laser Probe: | SurfaceMeasure |
| Optical Probe: |
QVP |
| Surface Roughness Probe: | SurfTest |
Product List
| Order No.: | Product Image: | Model: | Range X-Axis: |
Range Y-Axis: |
Range Z-Axis: |
Worktable Size: |
Workpiece Max Height: |
Workpiece Max Load: |
Machine Mass: |
Machine Dimensions: |
|---|---|---|---|---|---|---|---|---|---|---|
| 356-407 |  |
LEGEX 574 | 19.68" (500mm) |
27.55" (700mm) |
15.74" (400mm) |
21.65 x 29.52" (550 x 750mm) |
27.55" (700mm) |
551lbs (250kg) |
551lbs (250kg) |
57.87x95.66x103.54" (1470x2430x2630mm) |
| 356-417 |  |
LEGEX 774 | 27.55" (700mm) |
27.55" (700mm) |
15.74" (400mm) |
29.52 x 29.52" (750 x 750mm) |
27.55" (700mm) |
1,102lbs (500kg) |
1,102lbs (500kg) |
65.74x95.66x103.54" (1670x2430x2630mm) |
| 356-427 |  |
LEGEX 776 | 27.55" (700mm) |
27.55" (700mm) |
23.62" (600mm) |
29.52 x 29.52" (750 x 750mm) |
33.46" (850mm) |
1,102lbs (500kg) |
1,102lbs (500kg) |
65.74x95.66x115.35" (1670x2430x2930mm) |
| 356-437 |  |
LEGEX9106 | 35.43" (900mm) |
35.43" (1000mm) |
23.62" (600mm) |
37.40 x 41.33" (950 x 1050mm) |
33.46" (850mm) |
1,763lbs (800kg) |
1,763lbs (850kg) |
73.62x119.29x120.07" (1870x3030x3050mm) |
