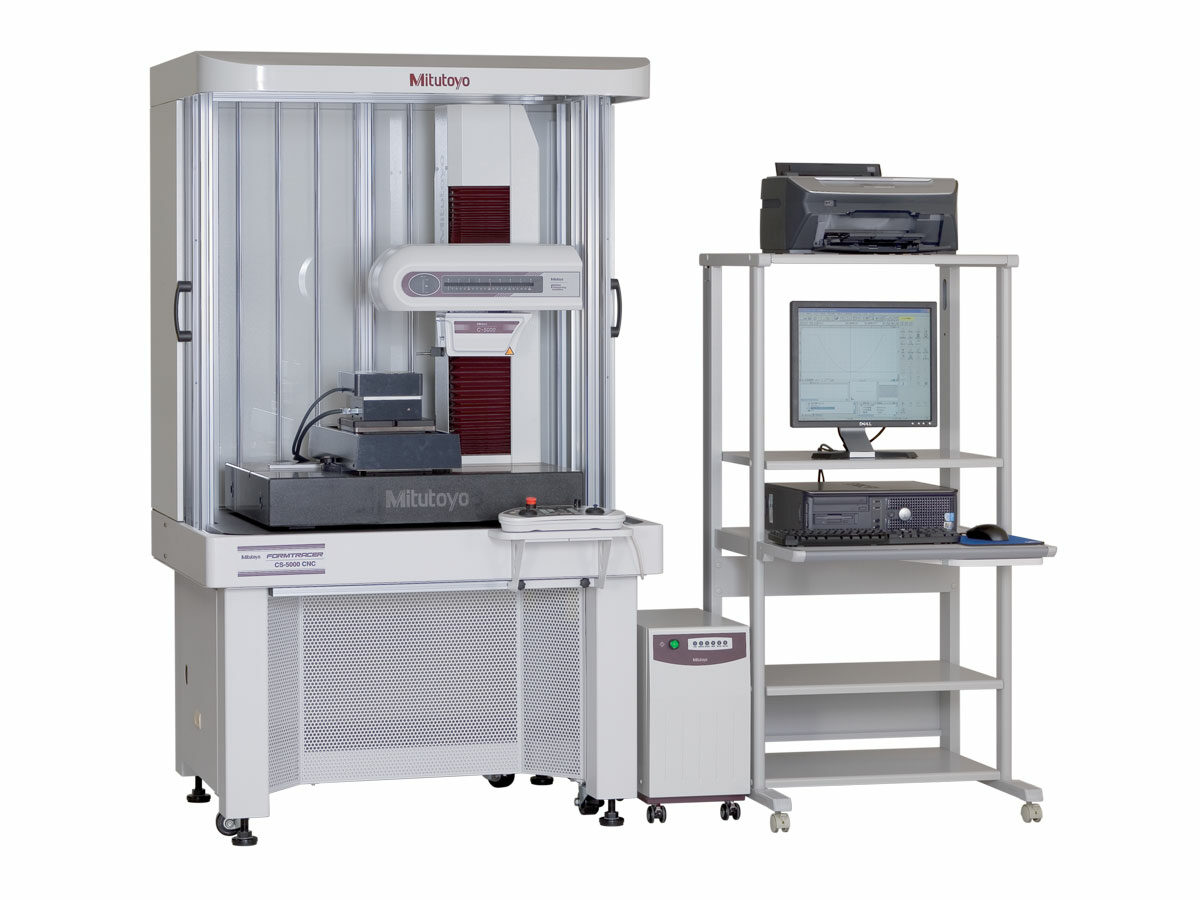

The Formtracer Extreme CS-5000CNC/ CS-H5000CNC measuring instrument simultaneously measures surface roughness and contour in a single measurement trace at high speeds and high-accuracy.
Features & Benefits
The Formtracer Extreme CS-5000CNC/ CS-H5000CNC measuring instrument incorporates a Mitutoyo Laser Holoscale in the X1- and Z1-axes for high resolution of simultaneous surface roughness and contour measurements. Z1-Axis detector employs an active control method to implement a wide range of measurement capabilities where variation in dynamic measuring force is restricted. The unit’s high drive speeds on its X1- and Z2 axes enable high-speed positioning and increases throughput for highly accurate measurements on multiple-profile and multiple workpieces.
- Anti-collision safety device on Z1-axis detector automatically stops the machine if the main body collides with a workpiece
- For models with the a-axis, power tilting the detector unit enables continuous measurement over horizontal and inclined surfaces
- For models with the Y axis table, positioning in the Y-axis direction expands the measuring range for multiple workpieces
- Remote control unit enables safe, easy and fast measurements
- Icons conveniently displayed on the key top allows operators to easily identify current axis selection
Technical Data
| Alpha-axis: | Installed |
|---|---|
| Range X-Axis: | 8" / 200mm |
| Resolution X-Axis: | .2μin / .005μm |
| Measurement method (X-axis): | Laser Holoscale |
| X-axis Drive speed (software): | 0 - 1.57 in/s / 0 - 40 mm/s |
| Measuring speed (Surface): | .00078 - .008in/s / .02 - .2mm/s |
| Measuring speed (Contour): | .0008 - .08in/s / .02 - 2mm/s |
| Measuring direction (Surface): | Forward/Backward |
| Alpha-axis resolution: | .000225° |
| Alpha-axis rotating speed: | 1rpm |
| Column resolution: | 1.97μin |
| Column Resolution: | .05μm |
| Z2-axis Measuring Method: | RT Linear encoder |
| Column Z2-axis drive speed (Software): | 0 - 7.87in/s / 0 - 200mm/s |
| Z2-axis drive speed (manual joystick): | 0 - 1.97in/s / 0 - 50mm/s |
| Detector Z-Resolution (Standard Stylus): | .47in / 12mm / .03μin / .008μm |
| Detector Z-Resolution (Using 2x Stylus): | .94in / 24mm / .06μin / .0016μm |
| Z1-axis Detecting method: | Laser holoscale |
| Measuring force (Standard stylus): | 4mN |
| Measuring force (Using 2x stylus): | .75mN |
| Standard Stylus tip (Diamond, angle °/ tip radius μm): | 40/5 (Diamond, angle °/ tip radius μm) |
| Stylus tip (Sapphire, tip radius mm) (Standard ball-tip): | .25(Sapphire, tip radius mm)(Standard ball-tip) |
| Stylus tip (Diamond, angle °/ tip radius μm) (Using 2x stylus): | 40/5(Diamond, angle °/ tip radius μm) |
| Stylus tip (Sapphire, tip radius mm) (Using 2x ball-tip stylus): | .25(Sapphire, tip radius mm)(Using 2x ball-tip stylus) |
| Granite base: | 29.5x23.6" / 750x600mm |
| Main Unit Dimensions: | 31.5x24.4x39.4" / 800x620x1000mm |
| Main Unit Mass: | 529lbs / 240kg |
| Vibration isolation stand method: | Diaphragm air spring |
| Vibration isolation stand natural frequency: | Vertical: 2.5 to 3.5Hz |
| Vibration isolation stand damping mechanism: | Orifice |
| Vibration isolation stand leveling mechanism: | Automatic control with mechanical sensor |
| Vibration isolation stand air supply pressure: | .4Mpa |
| Vibration isolation stand loading capacity mass: | 771.6lbs / 350kg |
| Vibration isolation stand dimensions: | 42.5x39.2x28.1" / 1080x995x715mm |
| Vibration isolation stand mass: | 694lbs / 315kg |
Product List
| Order No.: | Product Image: | Y-axis table: | Column vertical travel: | Y-axis table measuring range: | Y-axis table Detecting method: | Y-axis drive speed (software): | Y-axis drive speed (manual joystick): | Y-axis max. load capacity: | Y-axis table size: | Y-axis Dimensions: | Y-axis unit Mass: | Main Unit Dimensions: | Machine cover mass: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 525-706-13 | - | Not installed | 19.7" / 500mm | - | - | - | - | - | - | - | - | 42.5x33.9x51.2" / 1080x860x1300mm | 123.4lbs / 56kg |
| 525-707-13 | - | Installed | 19.7" / 500mm | 8" / 200mm / 1.97μin / .05μm | RT Linear encoder | 0 - 7.87in/s / 0 - 200mm/s | 0 - 1.97in/s / 0 - 50mm/s | 44lbs / 20kg | 8x8" / 200x200mm | 12.6x25.4x4.1"/ 320x646x105mm | 77lbs / 35kg | 42.5x33.9x51.2" / 1080x860x1300mm | 123.4lbs / 56kg |
| 525-727-13 | - | Not installed | 11.8" / 300mm | - | - | - | - | - | - | - | - | 42.5x33.9x43.3" / 1080x860x1100mm | 112lbs / 51kg |
| 525-729-13 | - | Installed | 11.8" / 300mm | 8" / 200mm / 1.97μin / .05μm | RT Linear encoder | 0 - 7.87in/s / 0 - 200mm/s | 0 - 1.97in/s / 0 - 50mm/s | 44lbs / 20kg | 8x8" / 200x200mm | 12.6x25.4x4.1"/ 320x646x105mm | 77lbs / 35kg | 42.5x33.9x43.3" / 1080x860x1100mm | 112lbs / 51kg |
| 525-747-13 | - | Not installed | 19.7" / 500mm | - | - | - | - | - | - | - | - | 42.5x33.9x51.2" / 1080x860x1300mm | 123.4lbs / 56kg |
| 525-749-13 | - | Installed | 19.7" / 500mm | 8" / 200mm / 1.97μin / .05μm | RT Linear encoder | 0 - 7.87in/s / 0 - 200mm/s | 0 - 1.97in/s / 0 - 50mm/s | 44lbs / 20kg | 8x8" / 200x200mm | 12.6x25.4x4.1"/ 320x646x105mm | 77lbs / 35kg | 42.5x33.9x51.2" / 1080x860x1300mm | 123.4lbs / 56kg |
| 525-776-13 | - | Not installed | 11.8" / 300mm | - | - | - | - | - | - | - | - | 42.5x33.9x43.3" / 1080x860x1100mm | 112lbs / 51kg |
| 525-777-13 | - | Installed | 11.8" / 300mm | 8" / 200mm / 1.97μin / .05μm | RT Linear encoder | 0 - 7.87in/s / 0 - 200mm/s | 0 - 1.97in/s / 0 - 50mm/s | 44lbs / 20kg | 8x8" / 200x200mm | 12.6x25.4x4.1"/ 320x646x105mm | 77lbs / 35kg | 42.5x33.9x43.3" / 1080x860x1100mm | 112lbs / 51kg |
