Roundtracer Flash

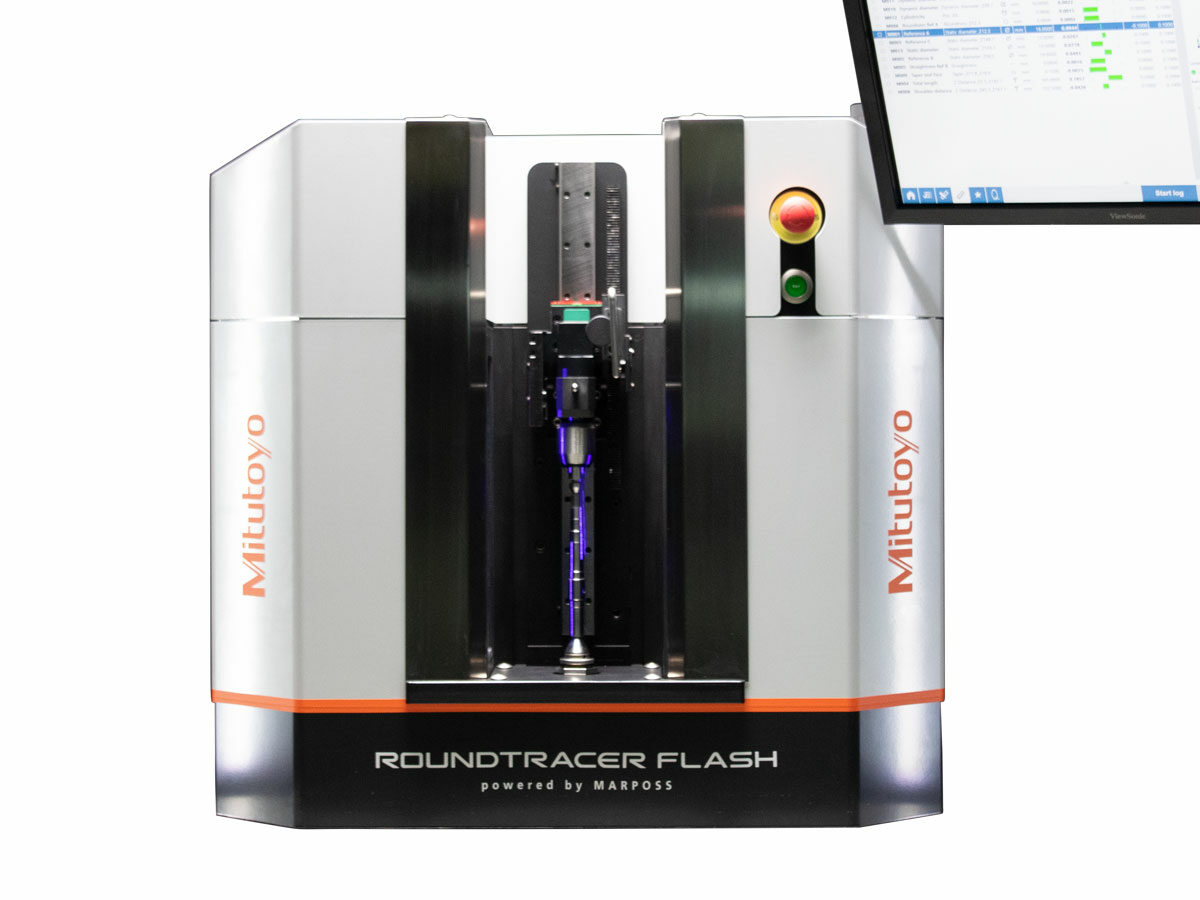

The all-in-one Mitutoyo Roundtracer Flash uses multiple image sensors integrated into fixed positions across the product structure to cover the entire measurement range. The sensors capture multiple images and generate one single image of a part with zero discontinuities and no gaps at the stitching edges. This allows the Roundtracer Flash to measure parts up to 300mm in length without any vertical movement of the sensors or part. With the absence of Z-axis motion, the optical acquisition of the complete part – which consumes time on other systems – is performed almost instantaneously on the Roundtracer Flash for impressively fast cycle times.

• Executes 100 static measurements in just 2 seconds irrespective of how the measurement sections are distributed along the shaft length
• Thru-holes measurement: only a few milliseconds are necessary between the image acquisition and the thru-hole measurement execution
• Fixed position sensors mean there is no mechanical stress for better durability
• Metrological performance of the Roundtracer Flash is consistent and stable over millions of cycles with minimal maintenance requirements
• Screws, pins, or rivets can be easily and quickly measured with the Roundtracer Flash
• The standard measurement toolkit includes threads analysis: maximum and minimum diameter, pitch diameter, pitch value, thread angle, thread linearity, total thread length
