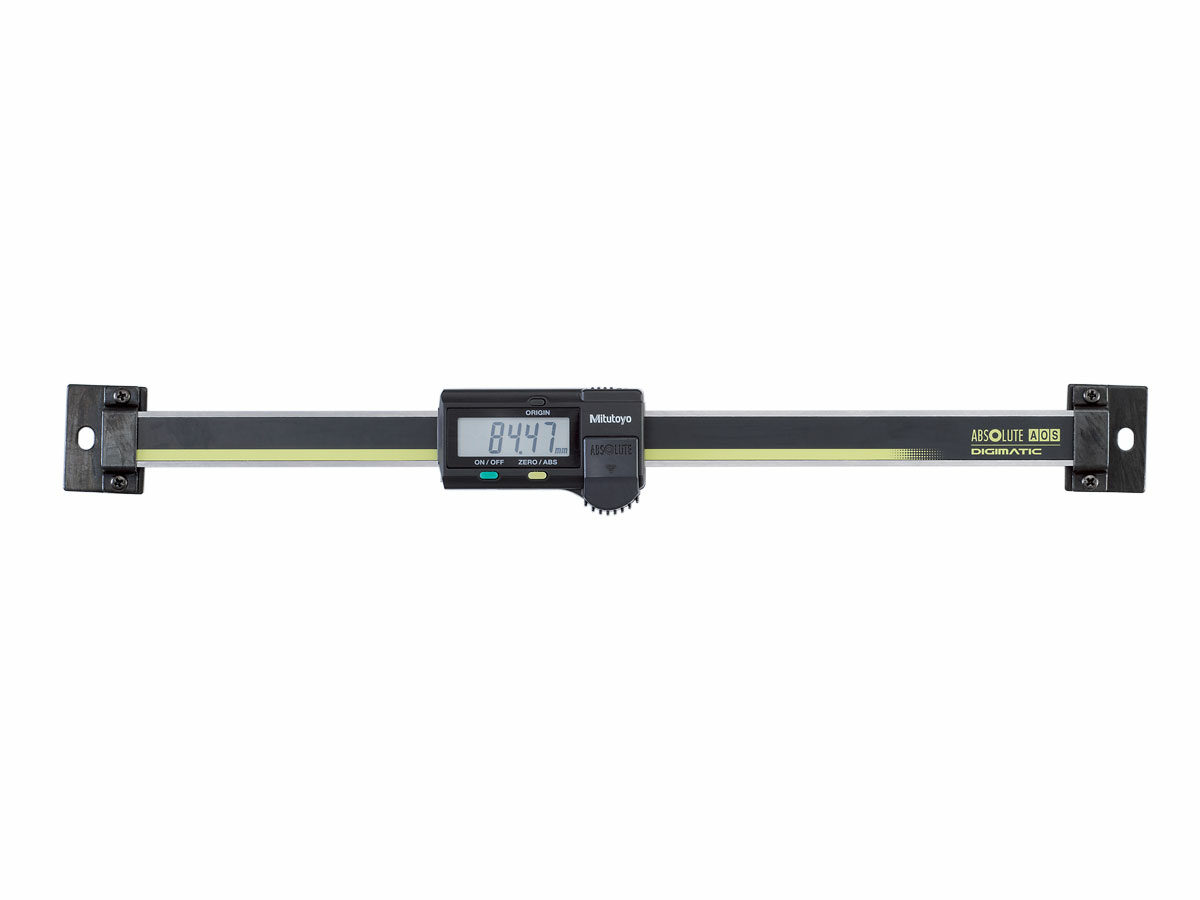

The Mitutoyo ABSOLUTE Digimatic scale provides accurate linear measurements with digital data output capabilities.
Features & Benefits
The SD-D Digimatic scale facilitates mounting on jigs, tools and small machine tools to enable accurate positioning. A built-in ABSOLUTE scale is also included, using the Mitutoyo ABS point, which doesn’t require zero-set when powered on. In addition, overspeed errors have been eliminated which improves reliability.
- ORIGIN key allows setting of an absolute zero point to be used as reference in subsequent measurements
- Horizontal display according to the scale mounting direction
- Long battery life for easier maintenance
- Equipped with an output port to transfer measurement data to implement in control and gaging systems
- EC counters are available as external display units
Technical Data
| Type: | Horizontal single-function type |
|---|---|
| Display: | LCD |
| Optional Accessories: | 959149, 959150 |
| SPC Output: | Yes |
| Resolution: | 0.01mm |
| Repeatability: | 0.01mm |
Product List
| Order No.: | Product Image: | Model: | Units: | Battery: | Range: | Resolution: | Accuracy: | Repeatability: | L1: | L2: | Depth including the screw on the rear of the display: | Mass: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 572-200-20 | - | SD-10DX | Metric | SR44 (1 pc.) 938888 | 0-100mm | - | 0.03mm | - | 209mm | 185mm | Less than 2mm | 230g |
| 572-201-20 | - | SD-15DX | Metric | SR44 (1 pc.) 938889 | 0-150mm | - | 0.03mm | - | 259mm | 235mm | Less than 2mm | 250g |
| 572-202-20 | - | SD-20DX | Metric | SR44 (1 pc.) 938890 | 0-200mm | - | 0.03mm | - | 311mm | 287mm | Less than 2mm | 270g |
| 572-203-10 | - | SD-30D | Metric | SR44 (1 pc.) 938891 | 0-300mm | - | 0.04mm | - | 444mm | 420mm | Less than 2mm | 370g |
| 572-210-20 |  |
SD-4"DX | Inch/Metric | SR44 (1 pc.) 938892 | 0-100mm / 0-4" | .0005" | 0.03mm / .001" | .0005" | 209mm | 185mm | Less than 2mm | 250g |
| 572-211-20 | - | SD-6"DX | Inch/Metric | SR44 (1 pc.) 938893 | 0-150mm / 0-6" | .0005" | 0.03mm / .001" | .0005" | 259mm | 235mm | Less than 2mm | 280g |
| 572-212-20 | - | SD-8"DX | Inch/Metric | SR44 (1 pc.) 938894 | 0-200mm / 0-8" | .0005" | 0.03mm / .001" | .0005" | 311mm | 287mm | Less than 2mm | 310g |
| 572-213-10 | - | SD-12"D | Inch/Metric | SR44 (1 pc.) 938895 | 0-300mm / 0-12" | .0005" | 0.04mm / .002" | .0005" | 444mm | 420mm | Less than 2mm | 370g |
