SD-F ABSOLUTE Digimatic Scale Units

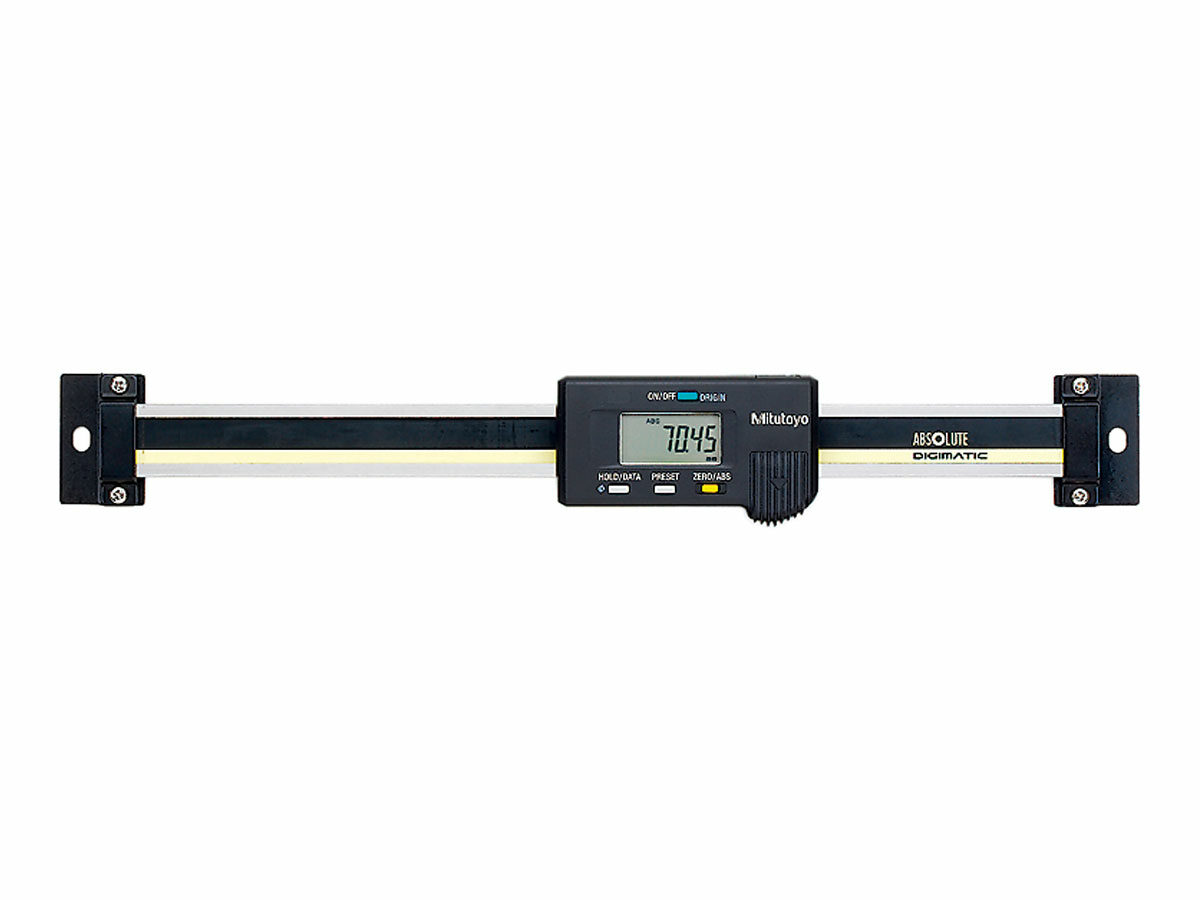

The Mitutoyo ABSOLUTE Digimatic multi-function horizontal linear scale provides accurate linear measurements with digital data output capabilities.

Download Brochure
Features & Benefits

 The Mitutoyo SD-F Digimatic scale facilitates mounting on jigs, tools and small machine tools to enable accurate positioning. A built-in ABSOLUTE scale is also included, using the Mitutoyo ABS point, which doesn’t require zero-set when powered on. In addition, overspeed errors have been eliminated which improves reliability.

  • ORIGIN key allows setting of an absolute zero point to be used as reference in subsequent measurements
  • Horizontal display according to the scale mounting direction
  • Long battery life for easier maintenance
  • Equipped with an output port to transfer measurement data to implement in control and gaging systems
  • EC counters are available as external display units



Technical Data
Type: Horizontal multi-function type (equipped with double reading function)
Display: LCD
Optional Accessories: 905338, 905409, 905689, 905690, 905691, 905692, 905693, 905694
SPC Output: Yes
Resolution: 0.01mm
Repeatability: 0.01mm
Product List
Order No.: Product Image: Model: Units: Battery: Range: Resolution: Accuracy: Repeatability: L1: L2: t: G: H: Depth including the screw on the rear of the display: Mass:
572-480-10 - SD-10F Metric SR44 (1 pc.) 938912 0-100mm - 0.03mm - 244mm 220mm - - - Less than 2mm 250g
572-481-10 - SD-15F Metric SR44 (1 pc.) 938913 0-150mm - 0.03mm - 294mm 270mm - - - Less than 2mm 280g
572-482-10 - SD-20F Metric SR44 (1 pc.) 938914 0-200mm - 0.03mm - 344mm 320mm - - - Less than 2mm 310g
572-483-10 - SD-30F Metric SR44 (1 pc.) 938915 0-300mm - 0.04mm - 444mm 420mm - - - Less than 2mm 370g
572-484-10 - SD-45F Metric SR44 (1 pc.) 938916 0-450mm - 0.04mm - 594mm 570mm 6mm 23.2mm 14.6mm Less than 3mm 760g
572-486-10 - SD-80F Metric SR44 (1 pc.) 938918 0-800mm - 0.06mm - 974mm 950mm 10mm 27.2mm 18.6mm Less than 3mm 1710g
572-490-10 - SD-4"F Inch/Metric SR44 (1 pc.) 938920 0-100mm / 0-4" .0005" 0.03mm / .001" .0005" 244mm 220mm - - - Less than 2mm 250g
572-491-10 - SD-6"F Inch/Metric SR44 (1 pc.) 938921 0-150mm / 0-6" .0005" 0.03mm / .001" .0005" 294mm 270mm - - - Less than 2mm 280g
572-492-10 - SD-6"F Inch/Metric SR44 (1 pc.) 938922 0-200mm / 0-8" .0005" 0.03mm / .001" .0005" 344mm 320mm - - - Less than 2mm 310g
572-493-10 - SD-12"F Inch/Metric SR44 (1 pc.) 938923 0-300mm / 0-12" .0005" 0.04mm / .002" .0005" 444mm 420mm - - - Less than 2mm 370g
572-494-10 - SD-18"F Inch/Metric SR44 (1 pc.) 938924 0-450mm / 0-18" .0005" 0.04mm / .002" .0005" 594mm 570mm 6mm 23.2mm 14.6mm Less than 3mm 760g
572-495-10 - SD-24"F Inch/Metric SR44 (1 pc.) 938925 0-600mm / 0-24" .0005" 0.05mm / .002" .0005" 774mm 750mm 6mm 23.2mm 14.6mm Less than 3mm 900g
572-496-10 - SD-32"F Inch/Metric SR44 (1 pc.) 938926 0-800mm / 0-32" .0005" 0.06mm / .0025" .0005" 974mm 950mm 10mm 27.2mm 18.6mm Less than 3mm 1710g
572-497-10 - SD-40"F Inch/Metric SR44 (1 pc.) 938927 0-1000mm / 0-40" .0005" 0.07mm / .0025" .0005" 1174mm 1150mm 10mm 27.2mm 18.6mm Less than 3mm 2040g
