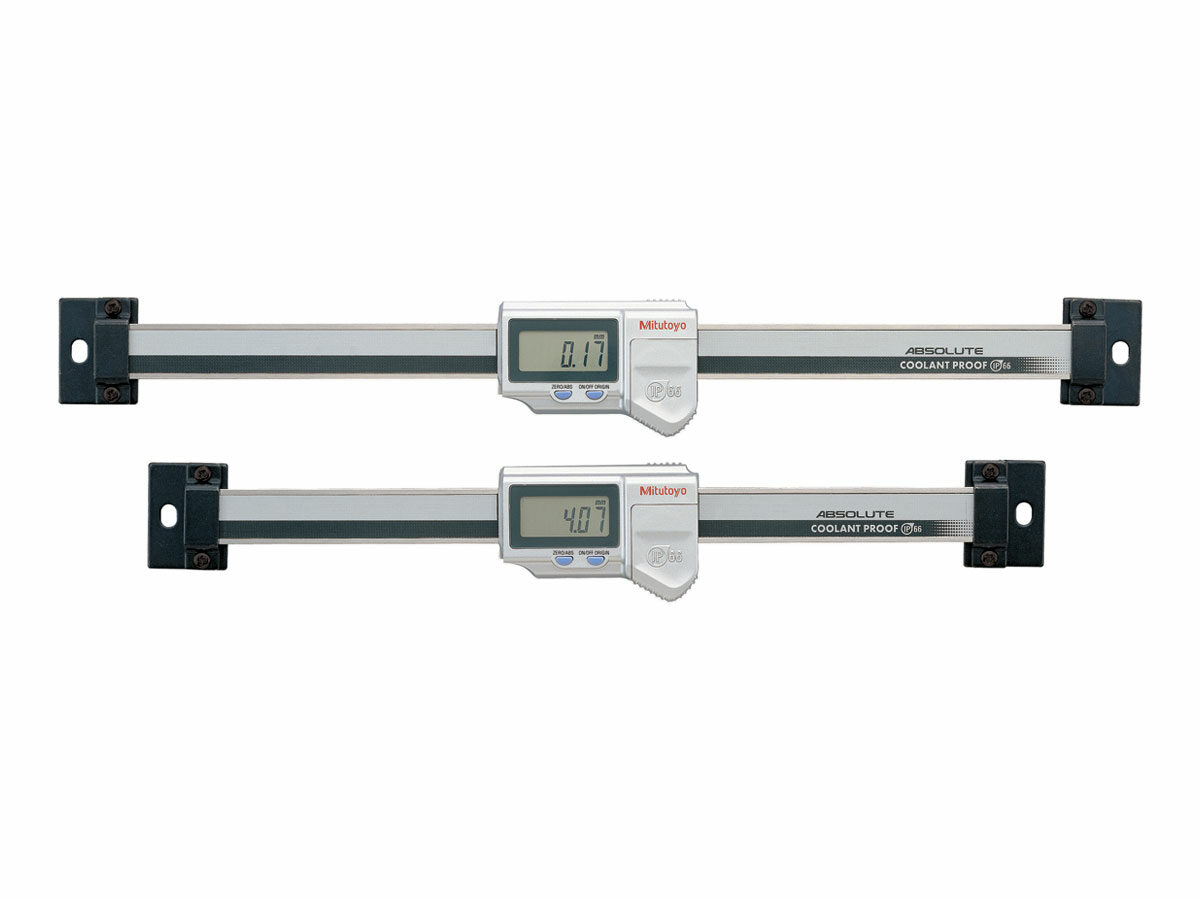

The Mitutoyo ABSOLUTE Digimatic SD-G scale provides accurate linear measurements with digital data output capabilities.
Features & Benefits
The SD-G Digimatic scale facilitates mounting on jigs, tools and small machine tools to enable accurate positioning. A built-in ABSOLUTE scale is also included, using the Mitutoyo ABS point, which doesn’t require zero-set when powered on. In addition, overspeed errors have been eliminated which improves reliability.
- ORIGIN key allows setting of an absolute zero point to be used as reference in subsequent measurements
- Horizontal or vertical display according to the scale mounting direction
- Long battery life for easier maintenance
- Equipped with an output port to transfer measurement data to implement in control and gaging systems
- IP66 certified for protection against dust and water
- EC counters are available as external display units
Technical Data
| Type: | Horizontal single-function type (Water-proof type) |
|---|---|
| Display: | LCD |
| Optional Accessories: | 05CZA624, 05CZA625 |
| SPC Output: | Yes |
| Resolution: | 0.01mm |
| Repeatability: | 0.01mm |
Product List
| Order No.: | Product Image: | Model: | Units: | Battery: | Range: | Resolution: | Accuracy: | Repeatability: | L1: | L2: | Depth including the screw on the rear of the display: | Mass: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 572-600 | - | SD-10G | Metric | SR44 (1 pc.) 938882 | 0-100mm | - | 0.03mm | - | 209mm | 185mm | Less than 2mm | 390g |
| 572-601 | - | SD-15G | Metric | SR44 (1 pc.) 938883 | 0-150mm | - | 0.03mm | - | 259mm | 235mm | Less than 2mm | 410g |
| 572-602 | - | SD-20G | Metric | SR44 (1 pc.) 938884 | 0-200mm | - | 0.03mm | - | 311mm | 287mm | Less than 2mm | 430g |
| 572-613 | - | SD-4"/10G | Inch/Metric | SR44 (1 pc.) 938885 | 0-100mm / 0-4" | .0005" | 0.03mm / .001" | .0005" | 209mm | 185mm | Less than 2mm | 390g |
| 572-614 | - | SD-6"/15G | Inch/Metric | SR44 (1 pc.) 938886 | 0-150mm / 0-6" | .0005" | 0.03mm / .001" | .0005" | 259mm | 235mm | Less than 2mm | 410g |
| 572-615 | - | SD-8"/20G | Inch/Metric | SR44 (1 pc.) 938887 | 0-200mm / 0-8" | .0005" | 0.03mm / .001" | .0005" | 311mm | 287mm | Less than 2mm | 430g |
