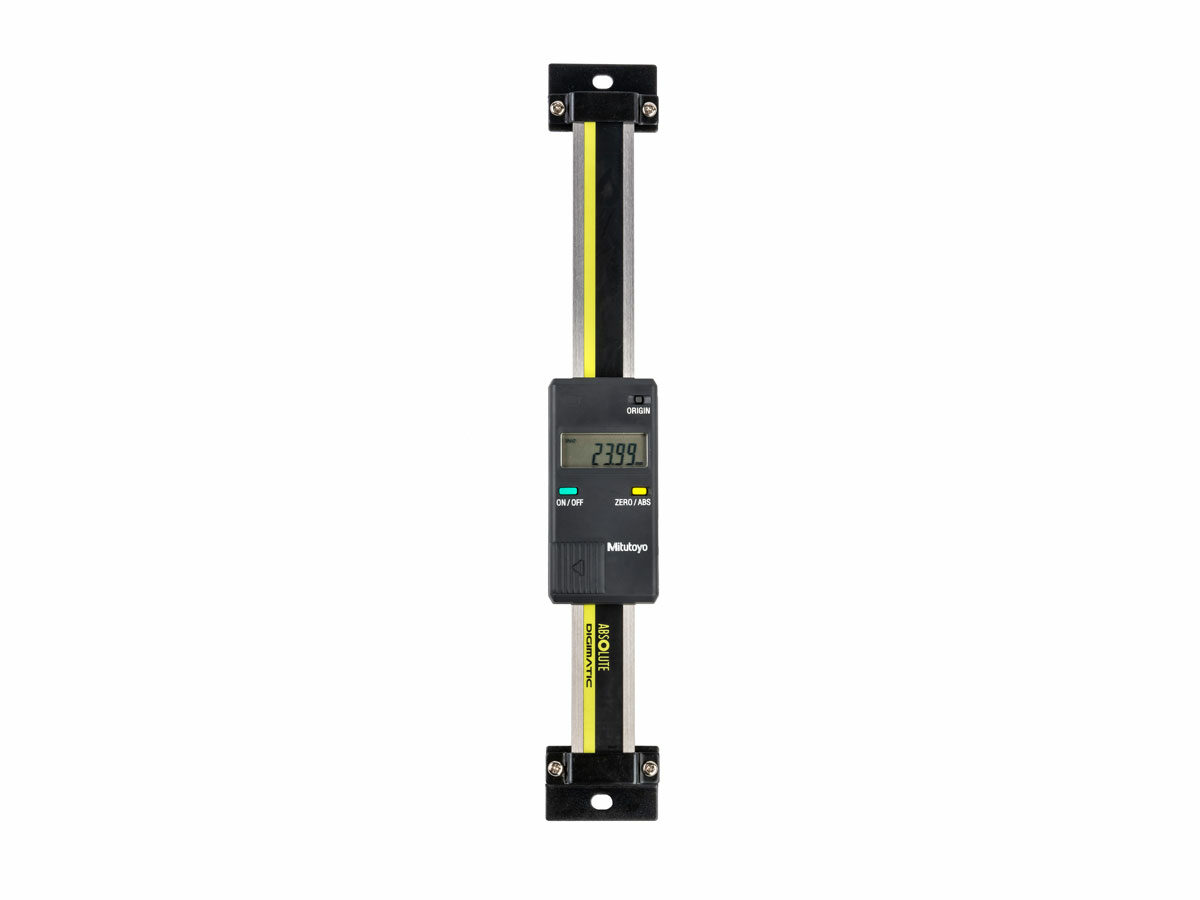

The Mitutoyo ABSOLUTE Digimatic single function vertical linear scale provides accurate linear measurements with digital data output capabilities.
Features & Benefits
The Mitutoyo SDV-D Digimatic single-function vertical linear scale facilitates mounting on jigs, tools and small machine tools to enable accurate positioning. A built-in ABSOLUTE scale is also included, using the Mitutoyo ABS point, which doesn’t require zero-set when powered on. In addition, overspeed errors have been eliminated which improves reliability.
- ORIGIN key allows setting of an absolute zero point to be used as reference in subsequent measurements
- Vertical display according to the scale mounting direction
- Long battery life for easier maintenance
- Equipped with an output port to transfer measurement data to implement in control and gaging systems
- EC counters are available as external display units
Technical Data
| Type: | Vertical single-function type |
|---|---|
| Display: | LCD |
| Optional Accessories: | 959149, 959150 |
| SPC Output: | Yes |
| Resolution: | 0.01mm |
| Repeatability: | 0.01mm |
Product List
| Order No.: | Product Image: | Model: | Units: | Battery: | Range: | Resolution: | Accuracy: | Repeatability: | L1: | L2: | Depth including the screw on the rear of the display: | Mass: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 571-313-10 | - | SDV-12"D | Inch/Metric | SR44 (1 pc.) 938895 | 0-300mm / 0-12" | .0005" | 0.04mm / .002" | .0005" | 444mm | 420mm | Less than 2mm | 370g |
| 572-300-10 | - | SDV-10D | Metric | SR44 (1 pc.) 938888 | 0-100mm | - | 0.03mm | - | 209mm | 185mm | Less than 2mm | 230g |
| 572-301-10 | - | SDV-15D | Metric | SR44 (1 pc.) 938889 | 0-150mm | - | 0.03mm | - | 259mm | 235mm | Less than 2mm | 250g |
| 572-302-10 | - | SDV-20D | Metric | SR44 (1 pc.) 938890 | 0-200mm | - | 0.03mm | - | 311mm | 287mm | Less than 2mm | 270g |
| 572-303-10 | - | SDV-30D | Metric | SR44 (1 pc.) 938891 | 0-300mm | - | 0.04mm | - | 444mm | 420mm | Less than 2mm | 370g |
| 572-310-10 | - | SDV-4"D | Inch/Metric | SR44 (1 pc.) 938892 | 0-100mm / 0-4" | .0005" | 0.03mm / .001" | .0005" | 209mm | 185mm | Less than 2mm | 250g |
| 572-311-10 |  |
SDV-6"D | Inch/Metric | SR44 (1 pc.) 938893 | 0-150mm / 0-6" | .0005" | 0.03mm / .001" | .0005" | 259mm | 235mm | Less than 2mm | 280g |
| 572-312-10 | - | SDV-8"D | Inch/Metric | SR44 (1 pc.) 938894 | 0-200mm / 0-8" | .0005" | 0.03mm / .001" | .0005" | 311mm | 287mm | Less than 2mm | 310g |
| 572-313-10 | - | SDV-12"D | Inch/Metric | SR44 (1 pc.) 938895 | 0-300mm / 0-12" | .0005" | 0.04mm / .002" | .0005" | 444mm | 420mm | Less than 2mm | 370g |
