The Mitutoyo ABSOLUTE Digimatic multi-function vertical linear scale provides accurate linear measurements with digital data output capabilities.
Features & Benefits

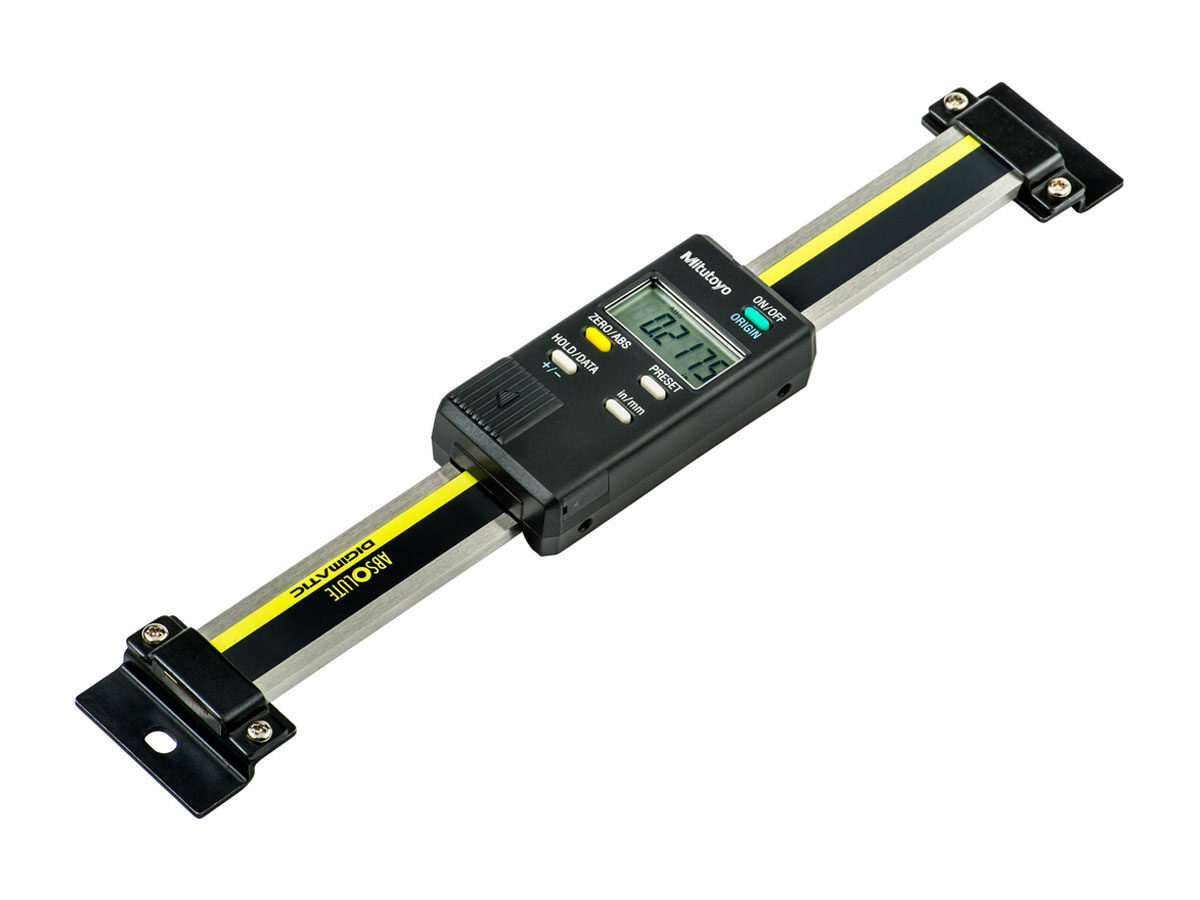

The Mitutoyo SDV-E Digimatic multi-function vertical linear scale facilitates mounting on jigs, tools and small machine tools to enable accurate positioning. A built-in ABSOLUTE scale is also included, using the Mitutoyo ABS point, which doesn’t require zero-set when powered on. In addition, overspeed errors have been eliminated which improves reliability.
- ORIGIN key allows setting of an absolute zero point to be used as reference in subsequent measurements
- Vertical display according to the scale mounting direction
- Long battery life for easier maintenance
- Equipped with an output port to transfer measurement data to implement in control and gaging systems
- EC counters are available as external display units
Technical Data
| Type: | Vertical multi-function type |
|---|---|
| Display: | LCD |
| Optional Accessories: | 905338, 905409, 905689, 905690, 905691, 905692, 905693, 905694 |
| SPC Output: | Yes |
| Resolution: | 0.01mm |
| Repeatability: | 0.01mm |
Product List
| Order No.: | Product Image: | Model: | Units: | Battery: | Range: | Resolution: | Accuracy: | Repeatability: | L1: | L2: | t: | G: | H: | Depth including the screw on the rear of the display: | Mass: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 572-560 | - | SDV-10E | Metric | SR44 (1 pc.) 938896 | 0-100mm | - | 0.03mm | - | 244mm | 220mm | - | - | - | Less than 2mm | 250g |
| 572-561 | - | SDV-15E | Metric | SR44 (1 pc.) 938897 | 0-150mm | - | 0.03mm | - | 294mm | 270mm | - | - | - | Less than 2mm | 280g |
| 572-562 | - | SDV-20E | Metric | SR44 (1 pc.) 938898 | 0-200mm | - | 0.03mm | - | 344mm | 320mm | - | - | - | Less than 2mm | 310g |
| 572-563 | - | SDV-30E | Metric | SR44 (1 pc.) 938899 | 0-300mm | - | 0.04mm | - | 444mm | 420mm | - | - | - | Less than 2mm | 370g |
| 572-564 | - | SDV-45E | Metric | SR44 (1 pc.) 938900 | 0-450mm | - | 0.04mm | - | 594mm | 570mm | 6mm | 23.2mm | 14.6mm | Less than 3mm | 760g |
| 572-565 | - | SDV-60E | Metric | SR44 (1 pc.) 938901 | 0-600mm | - | 0.05mm | - | 774mm | 750mm | 6mm | 23.2mm | 14.6mm | Less than 3mm | 900g |
| 572-566 | - | SDV-80E | Metric | SR44 (1 pc.) 938902 | 0-800mm | - | 0.06mm | - | 974mm | 950mm | 10mm | 27.2mm | 18.6mm | Less than 3mm | 1710g |
| 572-567 | - | SDV-100E | Metric | SR44 (1 pc.) 938903 | 0-1000mm | - | 0.07mm | - | 1174mm | 1150mm | 10mm | 27.2mm | 18.6mm | Less than 3mm | 2040g |
| 572-570 | - | SDV-4"E | Inch/Metric | SR44 (1 pc.) 938904 | 0-100mm / 0-4" | .0005" | 0.03mm / .001" | .0005" | 244mm | 220mm | - | - | - | Less than 2mm | 250g |
| 572-571 | - | SDV-6"E | Inch/Metric | SR44 (1 pc.) 938905 | 0-150mm / 0-6" | .0005" | 0.03mm / .001" | .0005" | 294mm | 270mm | - | - | - | Less than 2mm | 280g |
| 572-572 | - | SDV-8"E | Inch/Metric | SR44 (1 pc.) 938906 | 0-200mm / 0-8" | .0005" | 0.03mm / .001" | .0005" | 344mm | 320mm | - | - | - | Less than 2mm | 310g |
| 572-573 | - | SDV-12"E | Inch/Metric | SR44 (1 pc.) 938907 | 0-300mm / 0-12" | .0005" | 0.04mm / .002" | .0005" | 444mm | 420mm | - | - | - | Less than 2mm | 370g |
| 572-574 | - | SDV-18"E | Inch/Metric | SR44 (1 pc.) 938908 | 0-450mm / 0-18" | .0005" | 0.04mm / .002" | .0005" | 594mm | 570mm | 6mm | 23.2mm | 14.6mm | Less than 3mm | 760g |
| 572-575 | - | SDV-24"E | Inch/Metric | SR44 (1 pc.) 938909 | 0-600mm / 0-24" | .0005" | 0.05mm / .002" | .0005" | 774mm | 750mm | 6mm | 23.2mm | 14.6mm | Less than 3mm | 900g |
| 572-576 | - | SDV-32"E | Inch/Metric | SR44 (1 pc.) 938910 | 0-800mm / 0-32" | .0005" | 0.06mm / .0025" | .0005" | 974mm | 950mm | 10mm | 27.2mm | 18.6mm | Less than 3mm | 1710g |
| 572-577 | - | SDV-40"E | Inch/Metric | SR44 (1 pc.) 938911 | 0-1000mm / 0-40" | .0005" | 0.07mm / .0025" | .0005" | 1174mm | 1150mm | 10mm | 27.2mm | 18.6mm | Less than 3mm | 2040g |
