The Mitutoyo KA-200 DRO 2-axis lathe system with two different types of linear scales retrofits onto manual lathe machines for precision displacement on the X- and Z-axes.
Features & Benefits
The Mitutoyo 2-axis retrofit lathe package utilizes a KA-200 digital readout with slim linear scales in many different X- and Z-axis travel lengths on manual milling machines. The KA-200 features ABSOLUTE and incremental modes with nine presets each. The Z-axis uses either an AT715 electromagnetic linear scale or AT103 glass linear scale, depending on the package length. The AT116 slim spar type glass linear scale handles the X-axis displacement.
- Available with Z-axis travel of up to 120 in.
- Many different sizes of Quill and Knee 3-axis mill packages are available

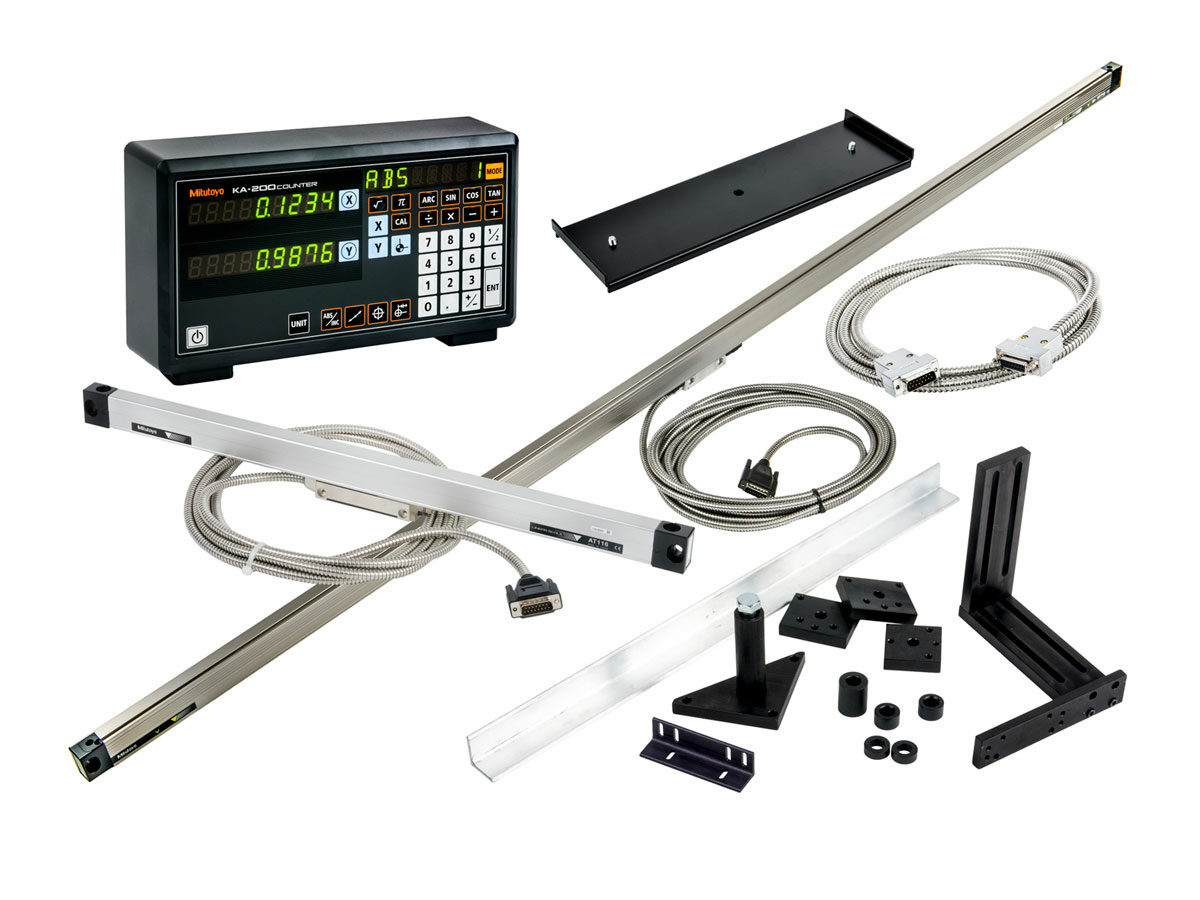

- Includes KA-200 digital counter, AT715/AT103 Z-axis scale, AT116 X-axis scale, bracket kit, counter stand, counter tray and extension cable in kits with 60-in. X-axis and longer
- KA-200 counter can output RS-232C data to a PC, printer or PLC using an optional code out unit (#09AET993)
- The ABSOLUTE scale on the AT715 linear scale eliminates the need for origin resetting for faster, more accurate displacement measurements
- IP67 rating on AT715 linear scale fully protects linear scale from water and oil contamination
- IP53 rating on AT103 linear scale better protects against dust and water
- Comes with 5 year warranty
Technical Data
| Type: | Lathe Package |
|---|---|
| X-Axis Type: | AT116 |
| Z-Axis Type: | AT715 |
Product List
| Order No.: | Product Image: | Dimensions: | X-Axis Travel: | Z-Axis Travel: |
|---|---|---|---|---|
| 64PKA035A | - | 6x28" | 28" | 6" |
| 64PKA036A | - | 6x30" | 30" | 6" |
| 64PKA037A | - | 6x36" | 36" | 6" |
| 64PKA038A | - | 6x40" | 40" | 6" |
| 64PKA039A | - | 8x40" | 40" | 8" |
| 64PKA040A | - | 8x44" | 44" | 8" |
| 64PKA041A | - | 8x48" | 48" | 8" |
| 64PKA042A | - | 10x40" | 40" | 10" |
| 64PKA043A | - | 10x44" | 44" | 10" |
| 64PKA044A | - | 10x48" | 48" | 10" |
| 64PKA045A | - | 10x60" | 60" | 10" |
| 64PKA046A | - | 12x40" | 40" | 12" |
| 64PKA047A | - | 12x44" | 44" | 12" |
| 64PKA048A | - | 12x48" | 48" | 12" |
| 64PKA049A | - | 12x52" | 52" | 12" |
| 64PKA050A | - | 12x60" | 60" | 12" |
| 64PKA051A | - | 12x72" | 72" | 12" |
| 64PKA052A | - | 14x40" | 40" | 14" |
| 64PKA053A | - | 14x44" | 44" | 14" |
| 64PKA054A | - | 14x48" | 48" | 14" |
| 64PKA055A | - | 14x52" | 52" | 14" |
| 64PKA056A | - | 14x60" | 60" | 14" |
| 64PKA057A | - | 16x60" | 60" | 16" |
