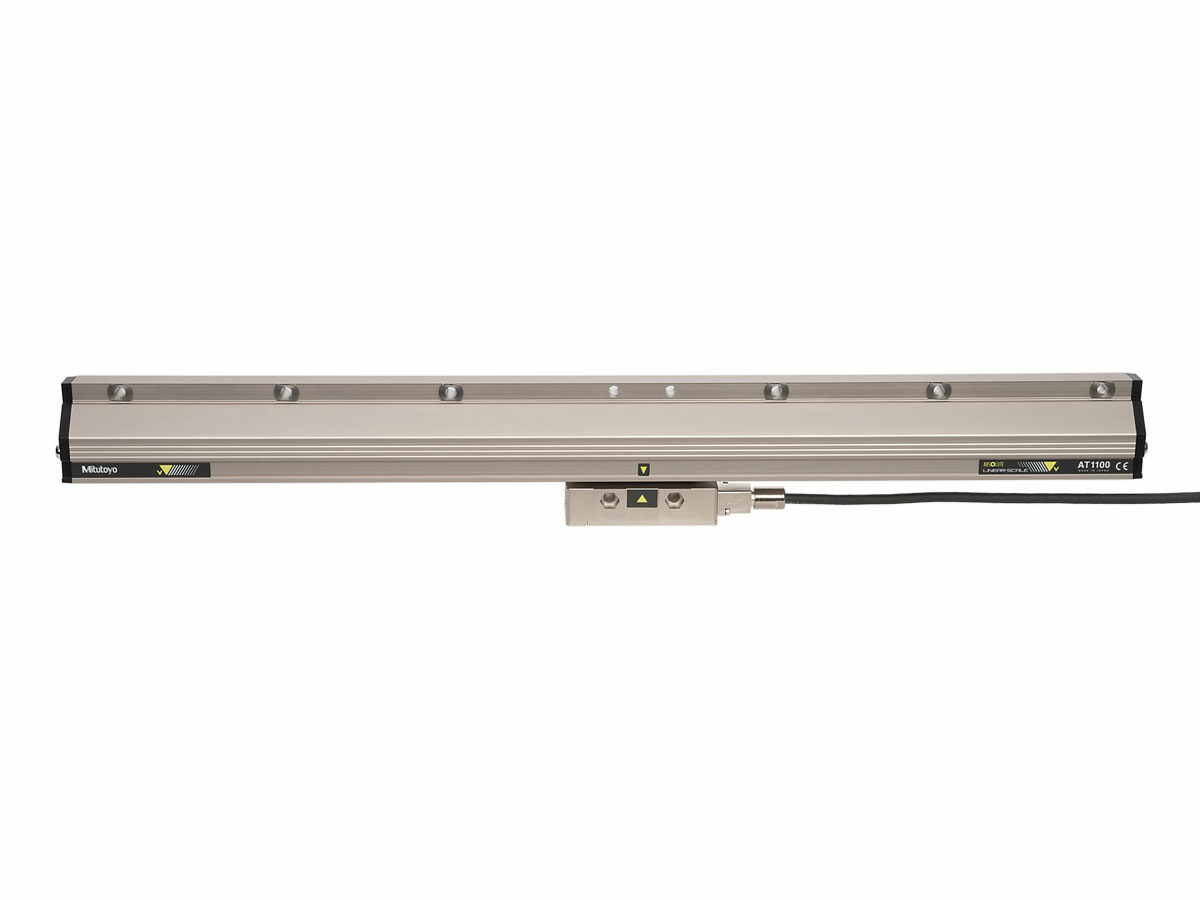

The AT1100 series linear scale is designed to stand up to harsh environmental conditions while delivering reliable, accurate positioning.
Features & Benefits
The AT1100 linear scale features unique electromagnetic induction technology to provide excellent oil, water and other contaminant resistance. The linear scale’s housing shape, detector track location and track-seal material further protect the scale and sensor in harsh environments.
- Electromagnetic induction principle means scales are unaffected by most contamination
- Multipoint frame mounting method provides high resistance to vibration and shock
- Absolute scales have eliminated the need for origin restoration and drastically reduces power consumption
- Improvements in signal processing technology creates approximately six times higher accuracy than that of previous scales
- Compatible with high-speed serial interface from leading machine-tool companies, allowing direct connection to an NC controller
Technical Data
| Type: | General Mount Type, robust dustproof/watrproof structure |
|---|---|
| Detection Method: | Electromagnetic induction |
| Resolution: | 0.05µm |
| Max Response Speed: | 3 |
| Cross-section size: | 85x37mm |
| Thermal Expansion Coefficient: | Approx. 8+/-1.5x10^-6/K |
| Vibration resistance (at 55 to 2000Hz): | 20g |
Product List
| Order No.: | Product Image: | Model: | Max Range: | Accuracy: | Impact Resistance (at11ms, 1/2sin): | Compatible interfaces: | Mounting Dimensions: |
|---|---|---|---|---|---|---|---|
| 559-100-43 | - | AT1143-140 | 140mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-100-53 | - | AT1153-140 | 140mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-101-43 | - | AT1143-240 | 240mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-101-53 | - | AT1153-240 | 240mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-102-43 | - | AT1143-340 | 340mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-102-53 | - | AT1153-340 | 340mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-103-43 | - | AT1143-440 | 440mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-103-53 | - | AT1153-440 | 440mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-104-43 | - | AT1143-540 | 540mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-104-53 | - | AT1153-540 | 540mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-105-43 | - | AT1143-640 | 640mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-105-53 | - | AT1153-640 | 640mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-106-43 | - | AT1143-740 | 740mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-106-53 | - | AT1153-740 | 740mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-107-43 | - | AT1143-840 | 840mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-107-53 | - | AT1153-840 | 840mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-108-43 | - | AT1143-940 | 940mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-108-53 | - | AT1153-940 | 940mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-109-43 | - | AT1143-1040 | 1040mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-109-53 | - | AT1153-1040 | 1040mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-110-43 | - | AT1143-1140 | 1140mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-110-53 | - | AT1153-1140 | 1140mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-111-43 | - | AT1143-1240 | 1240mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-111-53 | - | AT1153-1240 | 1240mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-112-43 | - | AT1143-1340 | 1340mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-112-53 | - | AT1153-1340 | 1340mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-113-43 | - | AT1143-1440 | 1440mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-113-53 | - | AT1153-1440 | 1440mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-114-43 | - | AT1143-1540 | 1540mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-114-53 | - | AT1153-1540 | 1540mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-115-43 | - | AT1143-1640 | 1640mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-115-53 | - | AT1153-1640 | 1640mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-116-43 | - | AT1143-1740 | 1740mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-116-53 | - | AT1153-1740 | 1740mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-117-43 | - | AT1143-1840 | 1840mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-117-53 | - | AT1153-1840 | 1840mm | (3+5L/1000)µm | 35g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-118-43 | - | AT1143-2040 | 2040mm | (3+5L/1000)µm | 35g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-119-43 | - | AT1143-2240 | 2240mm | 5+5L/1000µm | 30g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-119-53 | - | AT1153-2240 | 2240mm | 5+5L/1000µm | 30g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-120-43 | - | AT1143-2440 | 2440mm | 5+5L/1000µm | 30g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-120-53 | - | AT1153-2440 | 2440mm | 5+5L/1000µm | 30g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-121-43 | - | AT1143-2640 | 2640mm | 5+5L/1000µm | 30g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-121-53 | - | AT1153-2640 | 2640mm | 5+5L/1000µm | 30g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-122-43 | - | AT1143-2840 | 2840mm | 5+5L/1000µm | 30g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-122-53 | - | AT1153-2840 | 2840mm | 5+5L/1000µm | 30g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
| 559-123-43 | - | AT1143-3040 | 3040mm | 5+5L/1000µm | 30g L=140 to 2040mm | Mitsubishi Electric Corporation's High-speed Serial Interface | Mitsubishi |
| 559-123-53 | - | AT1153-3040 | 3040mm | 5+5L/1000µm | 30g L=140 to 2040mm | FANUC Corporation's Serial Interface | FANUC |
