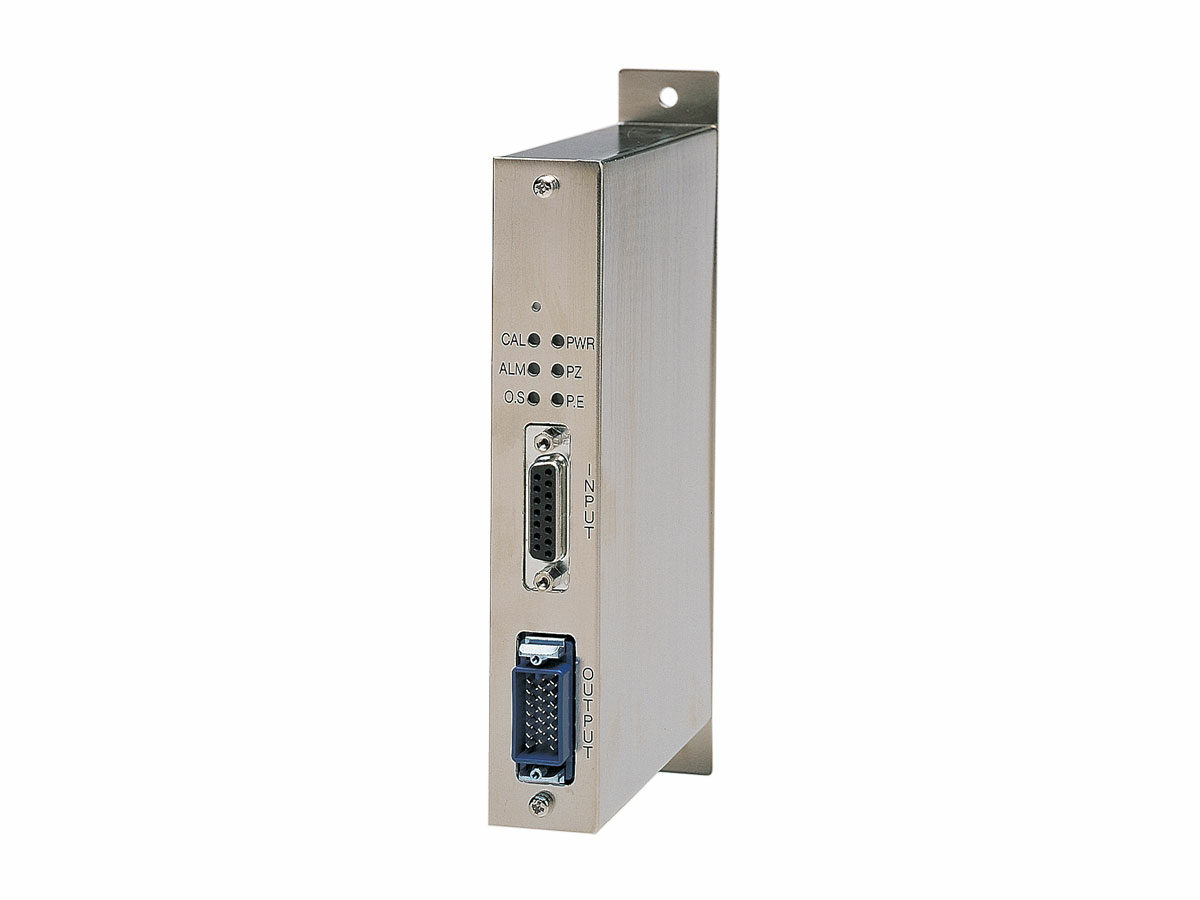

The PSU-200 divides linear scale output signals to connect linear scales with other devices for more precise positioning.
Features & Benefits
The PSU-200 splits the sinusoidal signal output with Mitutoyo linear scales into a minimum of four and a maximum of 200 divisions. The signal is converted to a square-wave signal so that NC feedback systems, measurement control devices, etc., can be used with linear scales in order to achieve highly accurate positioning.
- Works with Linear Scales with the sinusoidal signal output
- Quadrature signal output conforms to EIA standard RS422-A
- Alarm function for detecting broken wires or short circuits in the detector, over-speed and fluctuation errors in the input signal from the detector
Function
Setting the number of slits, setting the minimum edge interval, and maximum response speed. Detection of broken wires or short circuits and abnormalities (alarm), detection of signal errors (alarm). Power supply voltage low alarm (warning light only), switching between high-impedance mode and alarm signal output mode. Reference position detection light, hysteresis width settings (directly linked to No. of divisions), external alarm reset input (photocoupler), switching directions
Product List
| Order No.: | Product Image: | Model: | Number of Axes Displayed: | Number of Splits: | Power Supply: | Current Consumption: | Storage Temperature Range: | Operating Temperature Range: | Dimensions: | Mass: |
|---|---|---|---|---|---|---|---|---|---|---|
| 539-005 |  |

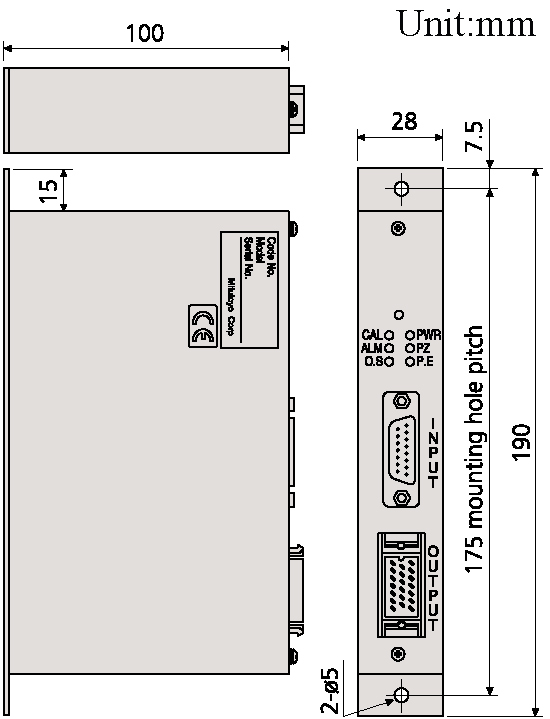

PSU-200 | 1 | 4, 8, 10, 20, 40, 80, 100, 200 (Selectable with the switch) | 5VDC ± 5% | 200mA | –20°C to 70°C˚C | 0°C to 40°C˚C | 160(W)×100(D)×28(H)mm | 1.4 lbs / 620g |
