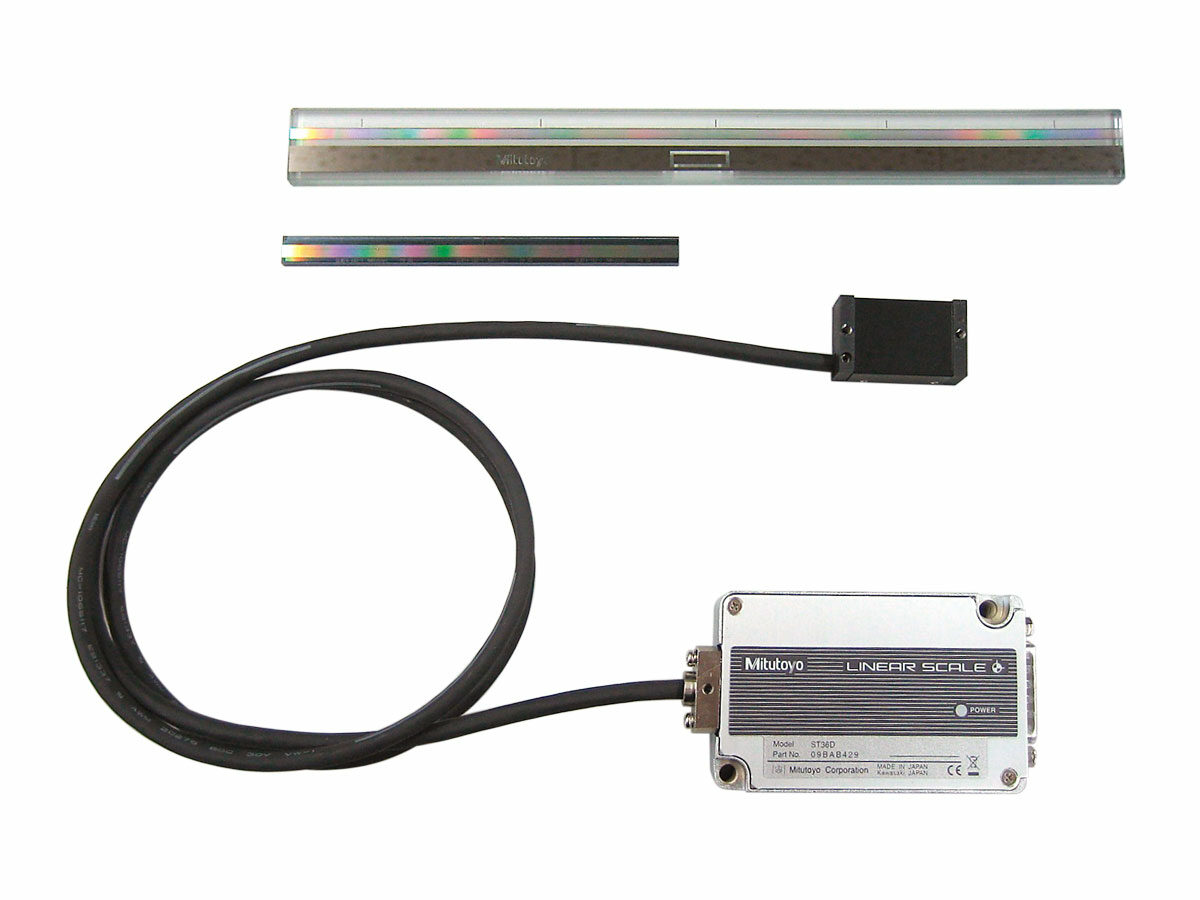

The ST36 linear scale series delivers high accuracy and portability designed for exposed installations.
Features & Benefits
The ST36 linear scale has a maximum effective measurement range of 3000mm making it ideal for use on larger machines. An LED alarm detects overspeed and sinusoidal signal anomalies to protect your machine and workpiece.
- Outputs two-phase sinusoidal wave signal, two-phase pulse signal and 1Vp-p at 4μm pitch for versatility
- High-accuracy type, 0.5μm class (effective range up to 300mm)
- Offers a thinner detector head (thickness 11.5mm)
- Along with the output specifications of 2-phase sinusoidal wave and 2-phase square wave, the output specification of 1Vp-p wave is available
Technical Data
| Type: | High Accuracy Type |
|---|---|
| Detection Method: | Reflective photoelectric linear encoder |
| Resolution: | 0.2/ 0.5/ 1/ 5 (Selectable with internal switch)µm |
| Main scale grating pitch: | 8µm |
| Signal Output Pitch: | 4µm |
| Max Response Speed: | 1200mm/s |
| Operating Temperature Range: | 0 to 45˚C |
| Operating temperature/humidity range: | 0 to 40˚C, RH20 to 80 (no condensation) |
| Storage Temperature Range: | -20 to 60˚C |
| Storage temperature/humidity range: | -20 to 60˚C, RH20 to 80 (no condensation) |
| Head Cable Length: | 1 (high-flex connecting cable)m |
Function
Product List
| Order No.: | Product Image: | Model: | Max Range: | Accuracy: | Output Signal: | Scale Reference Point: | Effective Range L1: | Overall Length L2: | Scale Fixing Pitch L3: | Retaining spring A: | Retaining spring B: |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 579-501-01 | - | ST36A-10 | 10mm | +/-0.5µm | 2-phase sinusoidal signals | Center Point | 10mm | 30mm | - | - | - |
| 579-501-02 | - | ST36B-10 | 10mm | +/-0.5µm | 2-phase square wave signals, alarm reset input | Center Point | 10mm | 30mm | - | - | - |
| 579-501-03 | - | ST36C-10 | 10mm | +/-0.5µm | 2-phase square wave signals, 2-phase sinusoidal signals | Center Point | 10mm | 30mm | - | - | - |
| 579-501-04 | - | ST36D-10 | 10mm | +/-0.5µm | 1Vp-p differential sinusoidal signals | Center Point | 10mm | 30mm | - | - | - |
| 579-502-01 | - | ST36A-25 | 25mm | +/-0.5µm | 2-phase sinusoidal signals | Center Point | 25mm | 45mm | - | - | - |
| 579-502-02 | - | ST36B-25 | 25mm | +/-0.5µm | 2-phase square wave signals, alarm reset input | Center Point | 25mm | 45mm | - | - | - |
| 579-502-03 | - | ST36C-25 | 25mm | +/-0.5µm | 2-phase square wave signals, 2-phase sinusoidal signals | Center Point | 25mm | 45mm | - | - | - |
| 579-502-04 | - | ST36D-25 | 25mm | +/-0.5µm | 1Vp-p differential sinusoidal signals | Center Point | 25mm | 45mm | - | - | - |
| 579-503-01 | - | ST36A-50 | 50mm | +/-0.5µm | 2-phase sinusoidal signals | Center Point | 50mm | 70mm | - | - | - |
| 579-503-02 | - | ST36B-50 | 50mm | +/-0.5µm | 2-phase square wave signals, alarm reset input | Center Point | 50mm | 70mm | - | - | - |
| 579-503-03 | - | ST36C-50 | 50mm | +/-0.5µm | 2-phase square wave signals, 2-phase sinusoidal signals | Center Point | 50mm | 70mm | - | - | - |
| 579-503-04 | - | ST36D-50 | 50mm | +/-0.5µm | 1Vp-p differential sinusoidal signals | Center Point | 50mm | 70mm | - | - | - |
| 579-504-01 | - | ST36A-75 | 75mm | +/-0.5µm | 2-phase sinusoidal signals | Center Point | 75mm | 90mm | - | - | - |
| 579-504-02 | - | ST36B-75 | 75mm | +/-0.5µm | 2-phase square wave signals, alarm reset input | Center Point | 75mm | 90mm | - | - | - |
| 579-504-03 | - | ST36C-75 | 75mm | +/-0.5µm | 2-phase square wave signals, 2-phase sinusoidal signals | Center Point | 75mm | 90mm | - | - | - |
| 579-504-04 | - | ST36D-75 | 75mm | +/-0.5µm | 1Vp-p differential sinusoidal signals | Center Point | 75mm | 90mm | - | - | - |
| 579-505-01 | - | ST36A-80 | 80mm | +/-0.5µm | 2-phase sinusoidal signals | Center Point | 80mm | 100mm | - | - | - |
| 579-505-02 | - | ST36B-80 | 80mm | +/-0.5µm | 2-phase square wave signals, alarm reset input | Center Point | 80mm | 100mm | - | - | - |
| 579-505-03 | - | ST36C-80 | 80mm | +/-0.5µm | 2-phase square wave signals, 2-phase sinusoidal signals | Center Point | 80mm | 100mm | - | - | - |
| 579-505-04 | - | ST36D-80 | 80mm | +/-0.5µm | 1Vp-p differential sinusoidal signals | Center Point | 80mm | 100mm | - | - | - |
| 579-506-01 | - | ST36A-100 | 100mm | +/-0.5µm | 2-phase sinusoidal signals | 50mm pitch | 100mm | 140mm | 50mm | 1 pcs. | 2 .pcs |
| 579-506-02 | - | ST36B-100 | 100mm | +/-0.5µm | 2-phase square wave signals, alarm reset input | 50mm pitch | 100mm | 140mm | 50mm | 1 pcs. | 2 .pcs |
| 579-506-03 | - | ST36C-100 | 100mm | +/-0.5µm | 2-phase square wave signals, 2-phase sinusoidal signals | 50mm pitch | 100mm | 140mm | 50mm | 1 pcs. | 2 .pcs |
| 579-506-04 | - | ST36D-100 | 100mm | +/-0.5µm | 1Vp-p differential sinusoidal signals | 50mm pitch | 100mm | 140mm | 50mm | 1 pcs. | 2 .pcs |
| 579-507-01 | - | ST36A-150 | 150mm | +/-0.5µm | 2-phase sinusoidal signals | 50mm pitch | 150mm | 190mm | 75mm | 1 pcs. | 2 .pcs |
| 579-507-02 | - | ST36B-150 | 150mm | +/-0.5µm | 2-phase square wave signals, alarm reset input | 50mm pitch | 150mm | 190mm | 75mm | 1 pcs. | 2 .pcs |
| 579-507-03 | - | ST36C-150 | 150mm | +/-0.5µm | 2-phase square wave signals, 2-phase sinusoidal signals | 50mm pitch | 150mm | 190mm | 75mm | 1 pcs. | 2 .pcs |
| 579-507-04 | - | ST36D-150 | 150mm | +/-0.5µm | 1Vp-p differential sinusoidal signals | 50mm pitch | 150mm | 190mm | 75mm | 1 pcs. | 2 .pcs |
| 579-508-01 | - | ST36A-200 | 200mm | +/-0.5µm | 2-phase sinusoidal signals | 50mm pitch | 200mm | 240mm | 100mm | 1 pcs. | 2 .pcs |
| 579-508-02 | - | ST36B-200 | 200mm | +/-0.5µm | 2-phase square wave signals, alarm reset input | 50mm pitch | 200mm | 240mm | 100mm | 1 pcs. | 2 .pcs |
| 579-508-03 | - | ST36C-200 | 200mm | +/-0.5µm | 2-phase square wave signals, 2-phase sinusoidal signals | 50mm pitch | 200mm | 240mm | 100mm | 1 pcs. | 2 .pcs |
| 579-508-04 | - | ST36D-200 | 200mm | +/-0.5µm | 1Vp-p differential sinusoidal signals | 50mm pitch | 200mm | 240mm | 100mm | 1 pcs. | 2 .pcs |
| 579-509-01 | - | ST36A-250 | 250mm | +/-0.5µm | 2-phase sinusoidal signals | 50mm pitch | 250mm | 290mm | 60mm | 1 pcs. | 4 .pcs |
| 579-509-02 | - | ST36B-250 | 250mm | +/-0.5µm | 2-phase square wave signals, alarm reset input | 50mm pitch | 250mm | 290mm | 60mm | 1 pcs. | 4 .pcs |
| 579-509-03 | - | ST36C-250 | 250mm | +/-0.5µm | 2-phase square wave signals, 2-phase sinusoidal signals | 50mm pitch | 250mm | 290mm | 60mm | 1 pcs. | 4 .pcs |
| 579-509-04 | - | ST36D-250 | 250mm | +/-0.5µm | 1Vp-p differential sinusoidal signals | 50mm pitch | 250mm | 290mm | 60mm | 1 pcs. | 4 .pcs |
| 579-510-01 | - | ST36A-300 | 300mm | +/-0.5µm | 2-phase sinusoidal signals | 50mm pitch | 300mm | 340mm | 75mm | 1 pcs. | 4 .pcs |
| 579-510-02 | - | ST36B-300 | 300mm | +/-0.5µm | 2-phase square wave signals, alarm reset input | 50mm pitch | 300mm | 340mm | 75mm | 1 pcs. | 4 .pcs |
| 579-510-03 | - | ST36C-300 | 300mm | +/-0.5µm | 2-phase square wave signals, 2-phase sinusoidal signals | 50mm pitch | 300mm | 340mm | 75mm | 1 pcs. | 4 .pcs |
| 579-510-04 | - | ST36D-300 | 300mm | +/-0.5µm | 1Vp-p differential sinusoidal signals | 50mm pitch | 300mm | 340mm | 75mm | 1 pcs. | 4 .pcs |
