Single button automatic signal adjusting function makes the ST46-EZA series easy to use.
Features & Benefits

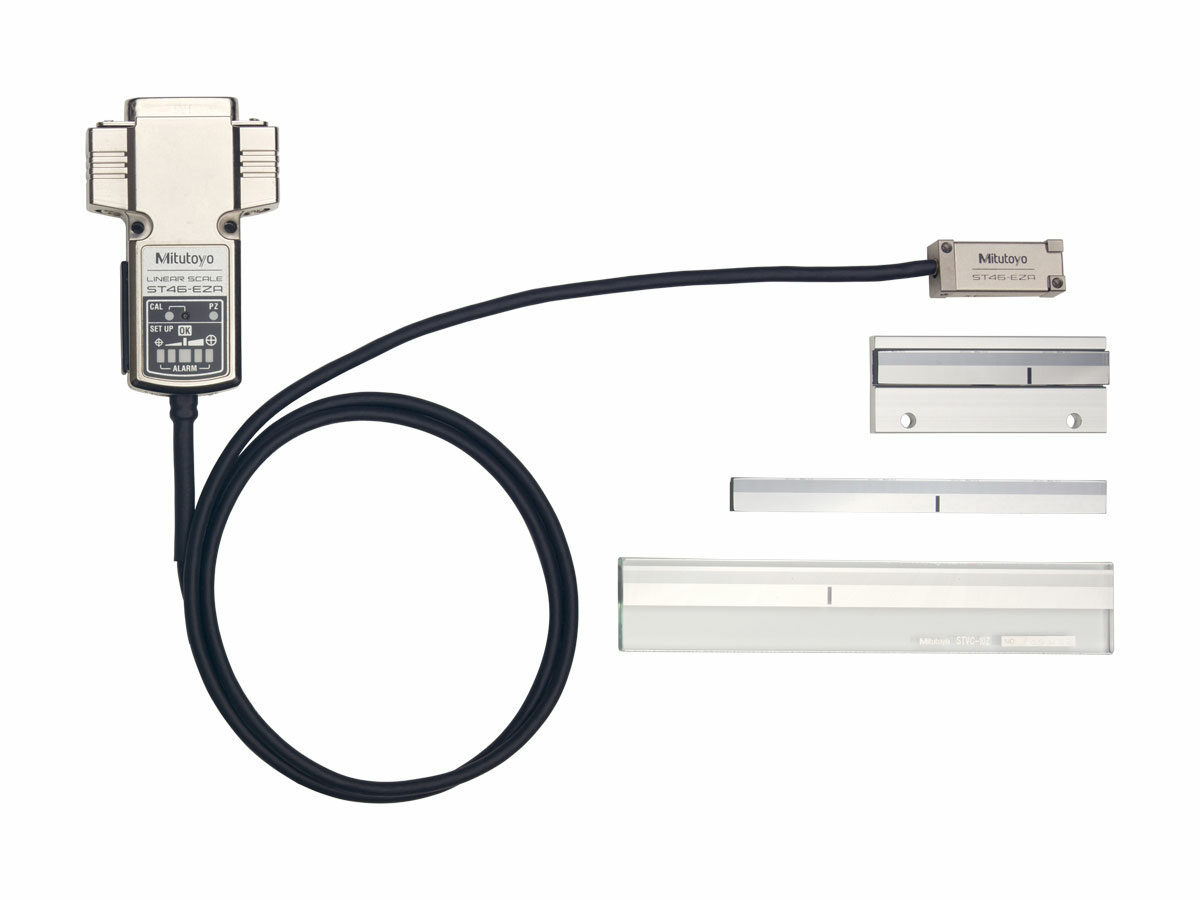

The compact size and easy usability makes the ST46-EZA linear scale highly versatile for a variety of applications. The detector head is only 7.5mm thick, ideal for machines where a space-saving design is important.
- Effective measurement lengths for the ST46-EZA range from 10mm to 3000mm
- Detector head mounting and signal adjustment possible without oscilloscope or PC
- A setup indicator for checking signal strength is included
- I/F circuit integrated in connector shell reduces volume to 60% compared to conventional interface
- Self-diagnosis function with USB connectivity facilitates signal strength checking and parameter setup
- Glass and metal tape scales are available with the same features and functions
- The metal tape scale type offers a mounting surface area of 12.5 by 9.325 mm, allowing use in applications where a space is a premium
Function
Product List
| Order No.: | Product Image: | Remarks: | Detection Method: | Scale Type: | Main scale grating pitch: | Output Signal: | Effective Range: | Resolution: | Max Response Speed: | Scale Reference Point: | Power Supply: | Operating temperature/humidity range: | Storage temperature/humidity range: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST46-EZA | - | Multiple configurations available, contact sales rep for more information. | Reflective photoelectlic linear encoder | Glass, Metal Tape | 20µm | Type B: 2-phase square wave signals, reference point pulse, external reset input. Type C: 2-phase square wave signals, reference point pulse, 2-phase sinusoidal signals. | 10 to 3000mm | 0.05 to 5µm | 2.6 m/s | 50mm pitch, 10 to 80mm: Center point | 5VDC±5% | 0 to 40˚C, RH20 to 80 (no condensation) | -20 to 60˚C, RH20 to 80 (no condensation) |
