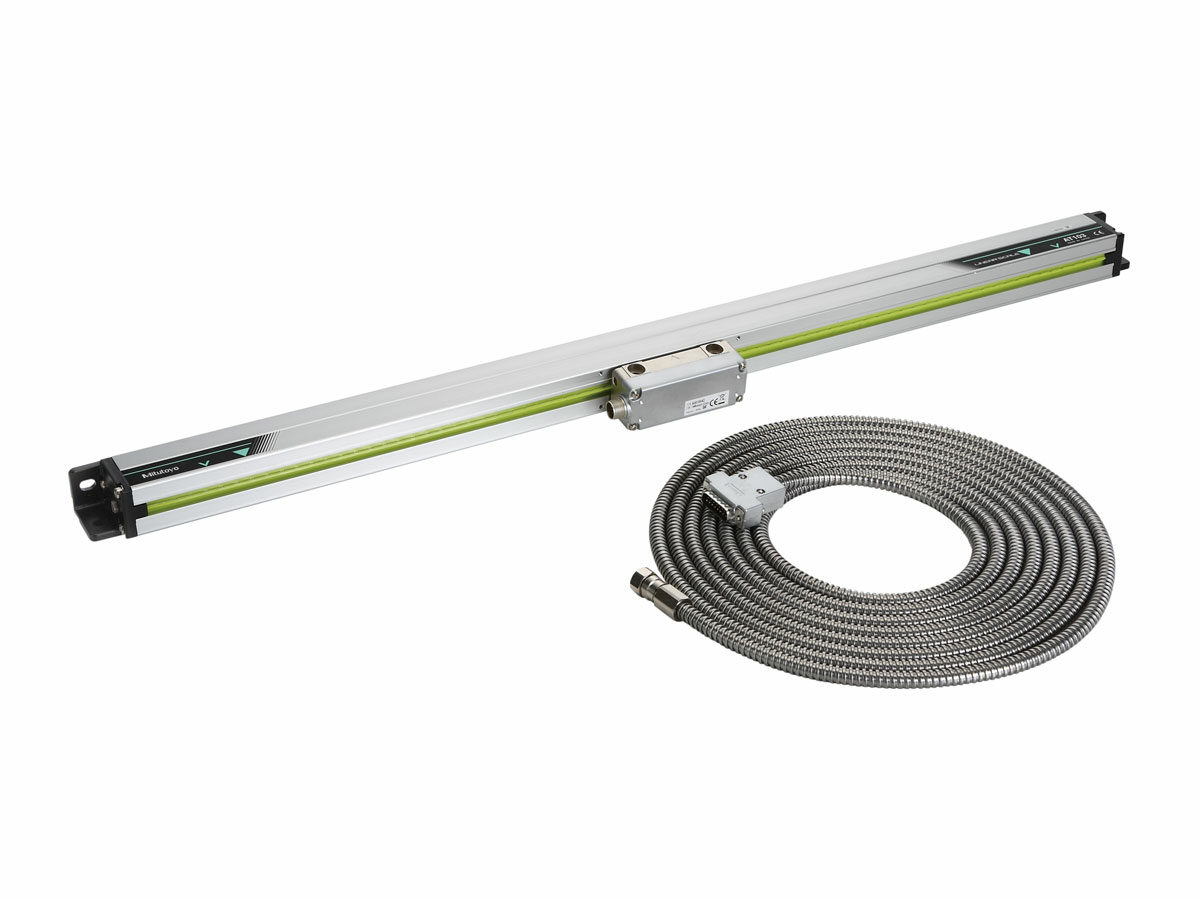

The AT103 series linear scale is ideal for a wide range of applications in a variety of settings.
Features & Benefits
Enhanced vibration resistance makes the AT103 linear scale more durable while innovative rubber lips keep dust and contaminants out of the unit. An armored signal cable is used to connect the scale unit to a DRO counter for safe, accurate operations in harsh shop environments.
- The signal cable outlet can be positioned on either side of the detector head, allowing the signal cable to be connected from either direction
- A wide variety of measuring ranges are available in this standard type scale unit
- Connectable to the KA counter or PSU-200
- IP53 rated for protection from dust and spraying water
Technical Data
| Type: | Standard Type - Standard Accuracy |
|---|---|
| Resolution: | 0.01 to 0.0001mm / .001 to .000005" |
| Output Signal: | Two 90 degree phase-shifted sinusoidal signals |
| Signal Output Pitch: | 20µm |
| Scale Reference Point: | Output in 50mm pitch |
| Protection Level: | IP53 |
| Operating Temperature Range: | 0 to 45˚C |
| Connectable counter: | KA Counter, KLD200 Counter, PSU-200 |
| Optional Accessories: | 09AAA033A, 09AAA033B, 09AAA033C, 174-183A, 174-185A |
Product List
| Order No.: | Product Image: | Model: | Max Range: | Accuracy: | Maximum Response Speed: | Signal Cable Length: |
|---|---|---|---|---|---|---|
| 539-133-30 | - | AT103-1600 | 1600mm / 64" | 5+5L/1000 ("L" is the effective range of the selected scale in mm)µm | 120m/min | 5m |
| 539-133-40 | - | AT103-1600F | 1600mm / 64" | 3+3L/1000 ("L" is the effective range of the selected scale in mm)µm | 120m/min | 5m |
| 539-134-30 | - | AT103-1700 | 1700mm / 68" | 5+5L/1000 ("L" is the effective range of the selected scale in mm)µm | 120m/min | 5m |
| 539-134-40 | - | AT103-1700F | 1700mm / 68" | 3+3L/1000 ("L" is the effective range of the selected scale in mm)µm | 120m/min | 5m |
| 539-135-30 | - | AT103-1800 | 1800mm / 72" | 5+5L/1000 ("L" is the effective range of the selected scale in mm)µm | 120m/min | 5m |
| 539-135-40 | - | AT103-1800F | 1800mm / 72" | 3+3L/1000 ("L" is the effective range of the selected scale in mm)µm | 120m/min | 5m |
| 539-136-30 | - | AT103-2000 | 2000mm / 80" | 5+5L/1000 ("L" is the effective range of the selected scale in mm)µm | 120m/min | 5m |
| 539-136-40 | - | AT103-2000F | 2000mm / 80" | 3+3L/1000 ("L" is the effective range of the selected scale in mm)µm | 120m/min | 5m |
| 539-137-30 | - | AT103-2200 | 2200mm / 88" | 5+5L/1000 ("L" is the effective range of the selected scale in mm)µm | 120m/min | 5m |
| 539-138-30 | - | AT103-2400 | 2400mm / 96" | 5+5L/1000 ("L" is the effective range of the selected scale in mm)µm | 120m/min | 7m |
| 539-139-30 | - | AT103-2500 | 2500mm / 100" | 5+5L/1000 ("L" is the effective range of the selected scale in mm)µm | 120m/min | 7m |
| 539-140-30 | - | AT103-2600 | 2600mm / 104" | 5+5L/1000 ("L" is the effective range of the selected scale in mm)µm | 120m/min | 7m |
| 539-141-30 | - | AT103-2800 | 2800mm / 112" | 5+5L/1000 ("L" is the effective range of the selected scale in mm)µm | 120m/min | 7m |
| 539-142-30 | - | AT103-3000 | 3000mm / 120" | 5+5L/1000 ("L" is the effective range of the selected scale in mm)µm | 120m/min | 7m |
| 539-143-30 | - | AT103-3250 | 3250mm / 130" | 5+8L/1000 ("L" is the effective range of the selected scale in mm)µm | 50m/min | 10m |
| 539-144-30 | - | AT103-3500 | 3500mm / 140" | 5+8L/1000 ("L" is the effective range of the selected scale in mm)µm | 50m/min | 10m |
| 539-145-30 | - | AT103-3750 | 3750mm / 150" | 5+8L/1000 ("L" is the effective range of the selected scale in mm)µm | 50m/min | 10m |
| 539-146-30 | - | AT103-4000 | 4000mm / 160" | 5+8L/1000 ("L" is the effective range of the selected scale in mm)µm | 50m/min | 10m |
| 539-147-30 | - | AT103-4250 | 4250mm / 170" | 5+8L/1000 ("L" is the effective range of the selected scale in mm)µm | 50m/min | 10m |
| 539-148-30 | - | AT103-4500 | 4500mm / 180" | 5+8L/1000 ("L" is the effective range of the selected scale in mm)µm | 50m/min | 10m |
| 539-149-30 | - | AT103-4750 | 4750mm / 190" | 5+8L/1000 ("L" is the effective range of the selected scale in mm)µm | 50m/min | 15m |
| 539-150-30 | - | AT103-5000 | 5000mm / 200" | 5+8L/1000 ("L" is the effective range of the selected scale in mm)µm | 50m/min | 15m |
| 539-151-30 | - | AT103-5250 | 5250mm / 210" | 5+8L/1000 ("L" is the effective range of the selected scale in mm)µm | 50m/min | 15m |
| 539-152-30 | - | AT103-5500 | 5500mm / 220" | 5+8L/1000 ("L" is the effective range of the selected scale in mm)µm | 50m/min | 15m |
| 539-153-30 | - | AT103-5750 | 5750mm / 230" | 5+8L/1000 ("L" is the effective range of the selected scale in mm)µm | 50m/min | 15m |
| 539-154-30 | - | AT103-6000 | 6000mm / 240" | 5+8L/1000 ("L" is the effective range of the selected scale in mm)µm | 50m/min | 15m |
