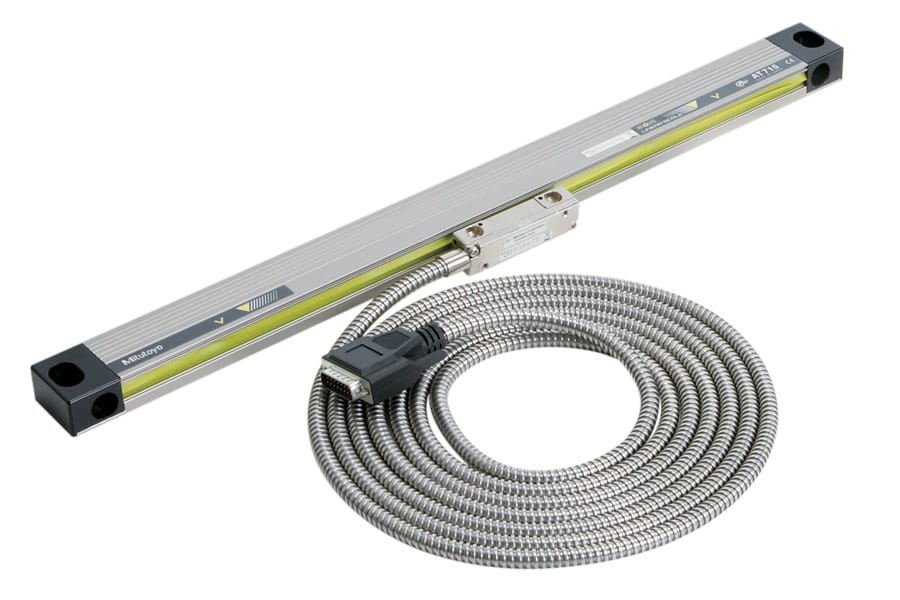

The AT715 Absolute linear scale is highly accurate and durable, making the linear scale ideal for harsh environments.
Features & Benefits
Utilizing an electromagnetic induction system, the ABS AT715 linear scale is highly resistant to oils, water and dust making it ideal for shop floor use. The main scale unit provides two mounting directions for easy installation on a machine tool which has difficult mounting arrangements.
- Abnormal calculations do not accumulate even if the calculation mistake is generated by electrical noise
- Absolute scales have eliminated the need for origin restoration and drastically reduces power consumption
- Suitable for milling machines, XY tables, jigs, etc.
- IP67 protection level offers high resistance to water, dust and other contaminants
Technical Data
| Type: | Slim Spar Type |
|---|---|
| Detection Method: | Electromagnetic induction |
| Resolution: | 0.0005 to 0.01µm / .000020 to .001" |
| Connectable counter: | KA Counter/ KLD200 Counter |
Product List
| Order No.: | Product Image: | Model: | Max Range: | Accuracy: | Maximum Response Speed: | Protection Level: | Sliding force: | Signal Cable Length: |
|---|---|---|---|---|---|---|---|---|
| 539-801R | - | ABS AT715-100 | 100mm / 4" | +/-5µm | 50m/min | IP67 | 5 or less N | 3.4m |
| 539-802R | - | ABS AT715-150 | 150mm / 6" | +/-5µm | 51m/min | IP68 | 6 or less N | 3.4m |
| 539-803R | - | ABS AT715-200 | 200mm / 8" | +/-5µm | 52m/min | IP69 | 7 or less N | 3.4m |
| 539-804R | - | ABS AT715-250 | 250mm / 10" | +/-5µm | 53m/min | IP70 | 8 or less N | 3.4m |
| 539-805R | - | ABS AT715-300 | 300mm / 12" | +/-5µm | 54m/min | IP71 | 9 or less N | 3.4m |
| 539-806R | - | ABS AT715-350 | 350mm / 14" | +/-5µm | 55m/min | IP72 | 10 or less N | 3.4m |
| 539-807R | - | ABS AT715-400 | 400mm / 16" | +/-5µm | 56m/min | IP73 | 11 or less N | 3.4m |
| 539-808R | - | ABS AT715-450 | 450mm / 18" | +/-5µm | 57m/min | IP74 | 12 or less N | 3.4m |
| 539-809R | - | ABS AT715-500 | 500mm / 20" | +/-5µm | 58m/min | IP75 | 13 or less N | 3.4m |
| 539-811R | - | ABS AT715-600 | 600mm / 24" | +/-7µm | 59m/min | IP76 | 14 or less N | 3.4m |
| 539-813R | - | ABS AT715-700 | 700mm / 28" | +/-7µm | 60m/min | IP77 | 15 or less N | 3.4m |
| 539-815R | - | ABS AT715-800 | 800mm / 32" | +/-7µm | 62m/min | IP79 | 17 or less N | 3.4m |
| 539-816R | - | ABS AT715-900 | 900mm / 36" | +/-7µm | 63m/min | IP80 | 18 or less N | 3.4m |
| 539-817R | - | ABS AT715-1000 | 1000mm / 40" | +/-7µm | 64m/min | IP81 | 19 or less N | 4.9m |
| 539-818R | - | ABS AT715-1100 | 1100mm / 44" | +/-7µm | 65m/min | IP82 | 20 or less N | 4.9m |
| 539-819R | - | ABS AT715-1200 | 1200mm / 48" | +/-7µm | 66m/min | IP83 | 21 or less N | 4.9m |
| 539-820R | - | ABS AT715-1300 | 1300mm / 52" | +/-7µm | 67m/min | IP84 | 22 or less N | 4.9m |
| 539-821R | - | ABS AT715-1400 | 1400mm / 56" | +/-7µm | 68m/min | IP85 | 23 or less N | 4.9m |
| 539-822R | - | ABS AT715-1500 | 1500mm / 60" | +/-7µm | 69m/min | IP86 | 24 or less N | 4.9m |
| 539-824R | - | ABS AT715-1700 | 1700mm / 68" | +/-7µm | 71m/min | IP88 | 26 or less N | 4.9m |
| 539-825R | - | ABS AT715-1800 | 1800mm / 72" | +/-7µm | 72m/min | IP89 | 27 or less N | 4.9m |
| 539-860R | - | ABS AT715-2000 | 2000mm / 80" | +/-10µm | 73m/min | IP90 | 28 or less N | 4.9m |
| 539-861R | - | ABS AT715-2200 | 2200mm / 88" | +/-10µm | 74m/min | IP91 | 29 or less N | 4.9m |
| 539-862R | - | ABS AT715-2400 | 2400mm / 96" | +/-10µm | 75m/min | IP92 | 30 or less N | 6.9m |
| 539-863R | - | ABS AT715-2500 | 2500mm / 100" | +/-10µm | 76m/min | IP93 | 31 or less N | 6.9m |
| 539-864R | - | ABS AT715-2600 | 2600mm / 104" | +/-10µm | 77m/min | IP94 | 32 or less N | 6.9m |
| 539-865R | - | ABS AT715-2800 | 2800mm / 112" | +/-10µm | 78m/min | IP95 | 33 or less N | 6.9m |
| 539-866R | - | ABS AT715-3000 | 3000mm / 120" | +/-10µm | 79m/min | IP96 | 34 or less N | 6.9m |
