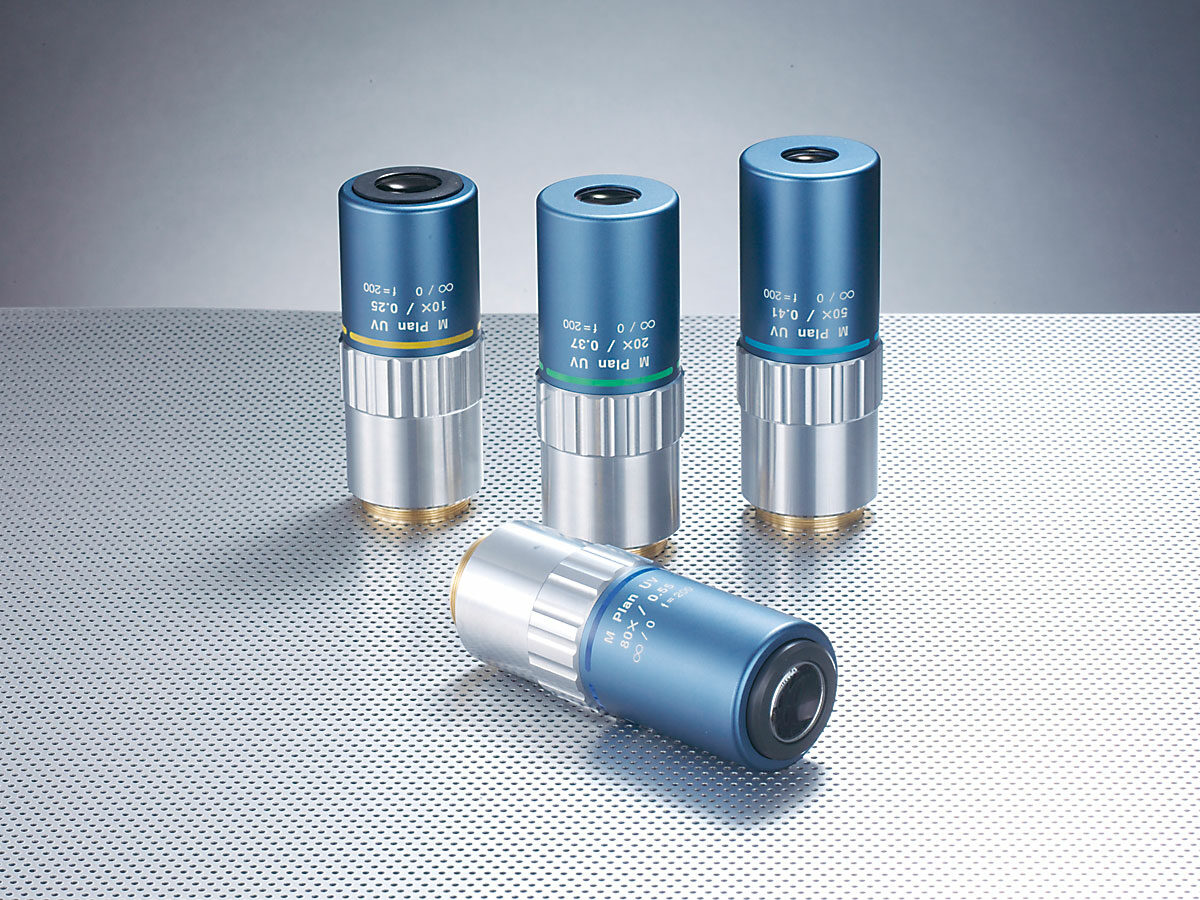

The metallurgical plan apochromatic (M Plan Apo) UV objective is optimized to inspect specimens in ultraviolet to visible wavelengths.
Features & Benefits
The Mitutoyo M Plan Apo UV objectives are designed to be used in the range of near ultra violet to visible light (266nm to 480nm). The M Plan Apo UV series is suitable for bright field observation and laser applications. These objectives have the world’s longest working distance and are infinity corrected.
- High transmittance in the ultraviolet range
- Objective can be used with the FS70-L4 or VMU-L4B microscopes
- Long working distance provides clearance between the lens surface and the workpiece surface in focus for large or awkward-shaped workpieces
- The mounting screw threads of objectives are M26 36TPI and conform to JIS B-7141-1988
- M Plan Apo UV bright field objectives have magnification powers of: 10x, 20x, 50x, 80x
Product List
| Order No.: | Product Image: | Magnification: | N.A.: | W.D.: | f: | R: | Depth of Field: | View Field 1: | View Field 2: | Mass: |
|---|---|---|---|---|---|---|---|---|---|---|
| 378-837-7 | - | 20x | 0.37 | 15mm | 10mm | 0.8µm | 2.1µm | 1.2mm | 0.24 x 0.32mm | 330g |
| 378-838-8 | - | 50x | 0.41 | 12mm | 4mm | 0.7µm | 1.7µm | 0.48mm | 0.10 x 0.13mm | 400g |
| 378-839-5 | - | 80x | 0.55 | 10mm | 2.5mm | 0.5µm | 0.9µm | 0.3mm | 0.06 x 0.08mm | 380g |
| 378-844-15 | - | 10x | 0.25 | 20mm | 20mm | 1.1µm | 4.4µm | 2.4mm | 0.48 x 0.64mm | 310g |
