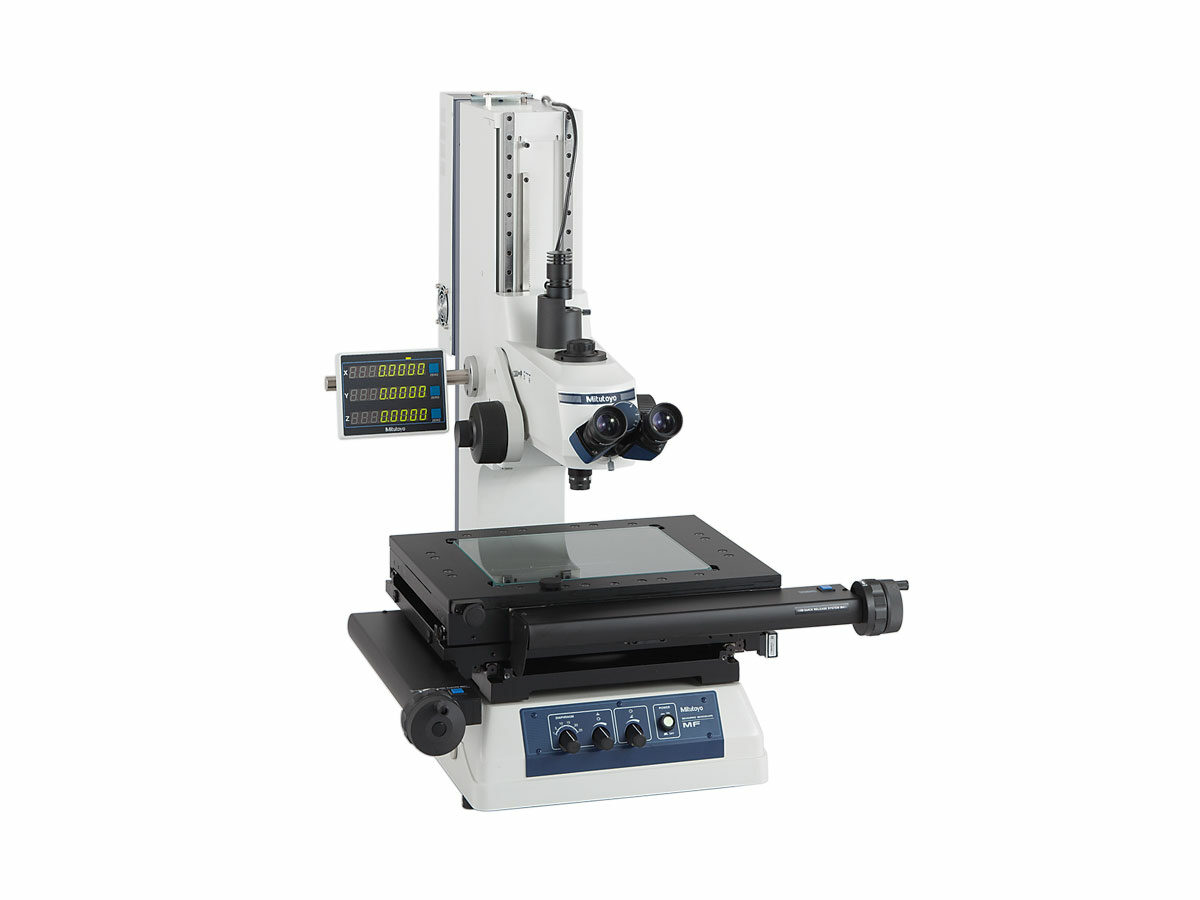

The MF 176 series are user-friendly microscopes that offer high magnification capability, wide field of view, and high accuracy-measurement.
Features & Benefits
The MF measuring microscopes provide the best-in-class accuracy. The MF series microscopes use telecentric objectives that reduce the magnification error due to slight variations in the working distance.
• Ultra-long working distance practically eliminates any risk of collision with a workpiece even when surface asperities are present
• Observation with a crisp and high-resolution erect image and a wide field of view
• ML series, high-NA objectives that are specially designed for the MF series (long working distance type)
• Illumination unit (reflected/transmitted) selectable from a high-intensity LED or halogen bulb (selection required)
• Variable aperture diaphragm (reflected/ transmitted) allows observation measurement while suppressing light diffraction
• Variety of standardized stages with travel ranges up to 400×200mm
• Quick-release mechanism useful for moving the stage quickly when measuring workpieces that are large in size or quantity
• Coarse/fine feed handles equipped as standard on both sides allow precise focus and observation measurement regardless of handedness
• Sliding nosepiece (factory installed option) allows up to two objectives to be mounted
• Dedicated camera port for seamless integration of Mitutoyo Vision unit or third party c-mount camera
SERIES 176 Technical Data
| Focusing Method: | Manual focusing ( coarse focusing: 30mm/ev, Fine Focusing: 0.2mm/rev) |
|---|---|
| Accuracy: | XY-axis (2.2 + 0.02L)um, L = Measuring length (mm) when not loded, JIS B7153 |
| Measuring Method: | Linear encoder (2-axis model: X/Y axis, 3-axis model: X/Y/Z axis |
| Indication accuracy: | Z-axis: (5+0.04)Lum, L = Measuring length (mm), (MF-B type ) |
| Floating Function: | X and Y axes with Quick-release mechanism |
| Power Supply: | 120V AC, 50/60Hz |
| Resolution: | .0001/.00005/.00001" / .001/.0005/.0001mm |
Product List
| Order No.: | Product Image: | Model: | Range X-Axis: | Range Y-Axis: | Range Z-Axis: | XY Stage Top Size: | Effective glass size: | Swivel Function: | Workpiece Max Height: | Workpiece Max Load: |
|---|---|---|---|---|---|---|---|---|---|---|
| 176-861-10 |  |
MF-A1010D | 4" / 100mm | 4" / 100mm | 6" / 150mm | 11 x 11" / 280 x 280mm | 7 x 7" / 280 x 280mm | - | 6" / 150mm | 22lbs / 10kg |
| 176-862-10 | - | MF-A2010D | 8" / 200mm | 4" / 100mm | 6" / 150mm | 14x 11" / 350 x 280mm | 10 x 6" / 350 x 280mm | - | 6" / 150mm | 22lbs / 10kg |
| 176-863-10 |  |
MF-A2017D | 8" / 200mm | 7" / 170mm | 8.7" / 220mm | 16.1 x 13.4" / 410 x 342mm | 10.6 x 9.4" / 410 x 342mm | + / - 5 degree (left) | 8.7" / 220mm | 44lbs / 20kg |
| 176-864-10 |  |
MF-A3017D | 12" / 300mm | 7" / 170mm | 8.7" / 220mm | 20.07 x 13.4" / 510 x 342mm | 14.5 x 9.4" / 510 x 342mm | + / - 5 degree (left) | 8.7" / 220mm | 44lbs / 20kg |
| 176-865-10 |  |
MF-A4020D | 16" / 400mm | 8" / 200mm | 8.7" / 220mm | 24 x 13.4" / 610 x 342mm | 17.3 x 9.4" / 610 x 342mm | + / - 3 degree (left) | 8.7" / 220mm | 33lbs / 15kg |
