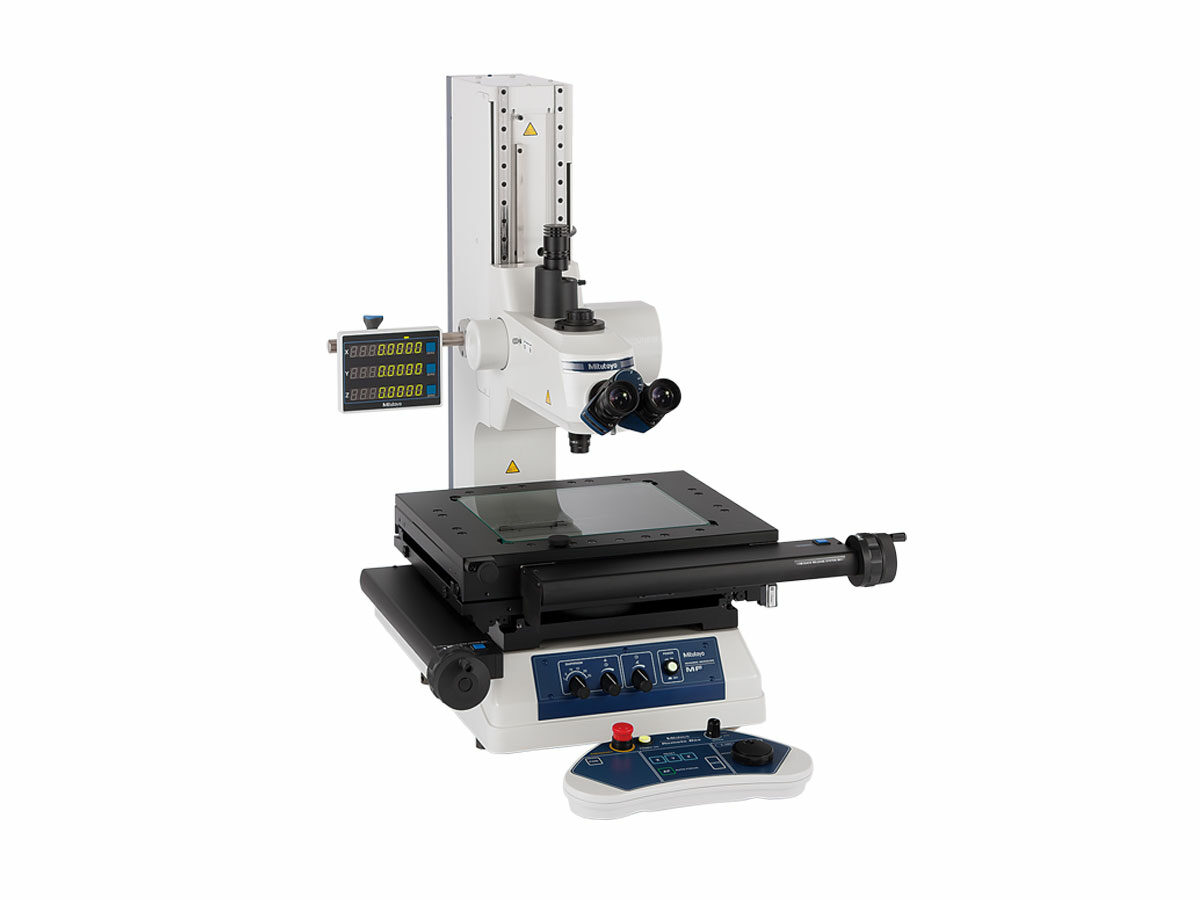

These MF 176 series microscopes feature a motorized Z-axis and offer high magnification observation and an ultra-wide field of view.
Features & Benefits
The motorized Z-axis drive on the MF-J measuring microscopes, when used with the Vision Unit, can reduce measuring times by up to 70% and reduce variation by up to 90% when compared to manual measuring microscopes. The MF series uses telecentric objectives that reduce the magnification error due to slight variations in the working distance.
• The Z-axis can be operated using a remote box • Using the optional vision unit enables the image AF function
• LED Illumination unit (reflected/transmitted) and halogen bulb (available options)
• Variable aperture diaphragm (reflected/ transmitted) allows observation measurement while suppressing light diffraction
• A wide variety of optional accessories are offered
• ML series, high-NA objectives that are specially designed for the MF series (long working distance type)
• High-magnification observation up to 2000X
• MF-J2017D has stage travel of 200x170mm, MFJ-3017D 300x170mm, MF-J4020D 400x200mm
• Dedicated camera port for seamless integration of Mitutoyo Vision unit or third party c-mount camera
SERIES 176 Technical Data
| Observation Image: | BF ( Brightfield) / Erect |
|---|---|
| Eyepiece: | 10x ( Field Number 24 ), 15x, 20x. Monocular unit: 10x eyepiece ( standard accessory), binocular tub: two 10x eyepieces ( standard accessory ) |
| Objective Lens: | ML series 3x objective ( standard accessory ), 1x, 5x, 10x, 20x, 50x, 100x |
| LED Illumination Unit: Control Unit: | 100-240V AC power input connector, Power on/off switch ( main switch ) |
| LED Illumination Unit: Reflected Illumination: | Koehler illumination, stepless light intensity control, variable aperture diaphragm, white LED light source |
| LED Illumination Unit: Transmitted Illumination: | built-in aperture diaphragm, stepless light intensity control, Telecentric system, White LED Light source, with cooling fan |
| Halogen Illumination Unit: Control Unit: | 100-240V AC Power input connector, Power on/off switch ( main switch) |
| Halogen Illumination Unit: Reflected Illumination: | Halogen bulb (12V, 50W), Koehler illumination, Stepless light intensity control, Variable aperture diaphragm mechanism, With cooling fan |
| Halogen Illumination Unit: Transmitted Illumination: | Built-in aperture diaphram, Halogen bulb (12V, 50W), Stepless light intensity control, Telecentric system, With cooling fan |
| Vision AF: | Available Option |
| Range Z-Axis: | 220mm |
| Accuracy: | (2.2 + 0.02L)um L=measuring length ( mm) |
| Resolution: | .0001/.00005/.00001" / 1/0.5/0.1µm |
Product List
| Order No.: | Product Image: | Model: | Range X-Axis: | Range Y-Axis: | Accessories: |
|---|---|---|---|---|---|
| 176-891A | - | MF-J2017D | 200mm | 170mm | - |
| 176-892A | - | MF-J3017D | 300mm | 170mm | - |
| 176-893A | - | MF-J4020D | 400mm | 200mm | - |
