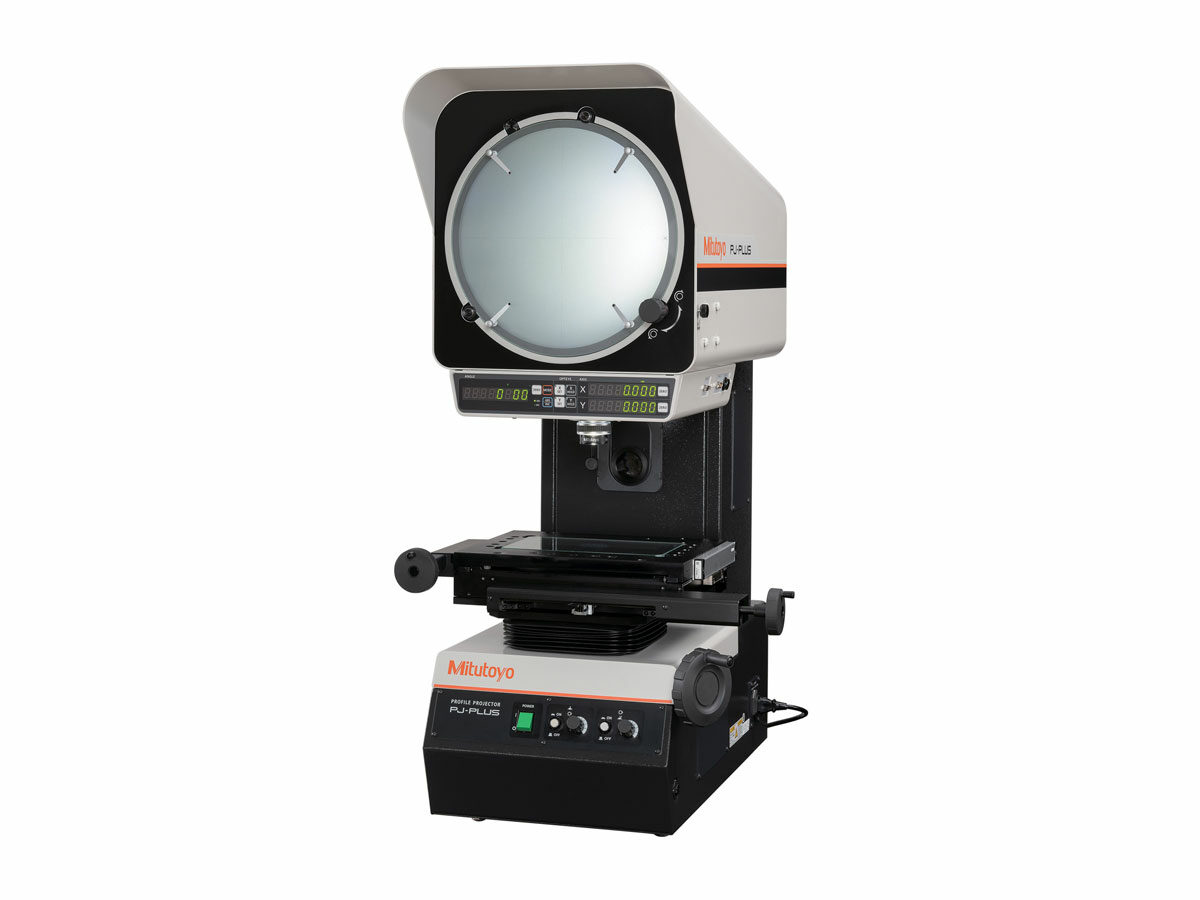

The Mitutoyo PJ-Plus profile projectors utilize LED lighting and provides reliable measurements in manufacturing site environments. The PJ-Plus provides stable dimension and angle measurements in harsher environments conventional models can’t handle, such as manufacturing and processing lines.
Features & Benefits
The Mitutoyo PJ-Plus profile projector series provides highly accurate, stable dimension and angle measurements in harsh processing lines and other manufacturing environments. The PJ-Plus implements LED illumination, a brand-new feature and design on profile projectors, replacing traditional halogen lighting. The new LED illumination source offers better durability and longer service life, prevents rate of decline in illumination by about 50%, and eliminates the need for a cooling fan in the main unit, drastically decreasing the entry of oil, mist, dust, etc. into the measuring instrument.
- Effective stepless illumination control for lighting levels to be precisely set to suit surface texture and color of the workpiece
- Built-in digital XY counter on the front of the machine and displays XY axes and angle readings
- PJ-Plus is available in packages with the Metlogix M2 software, touch screen tablet with or without edge detection

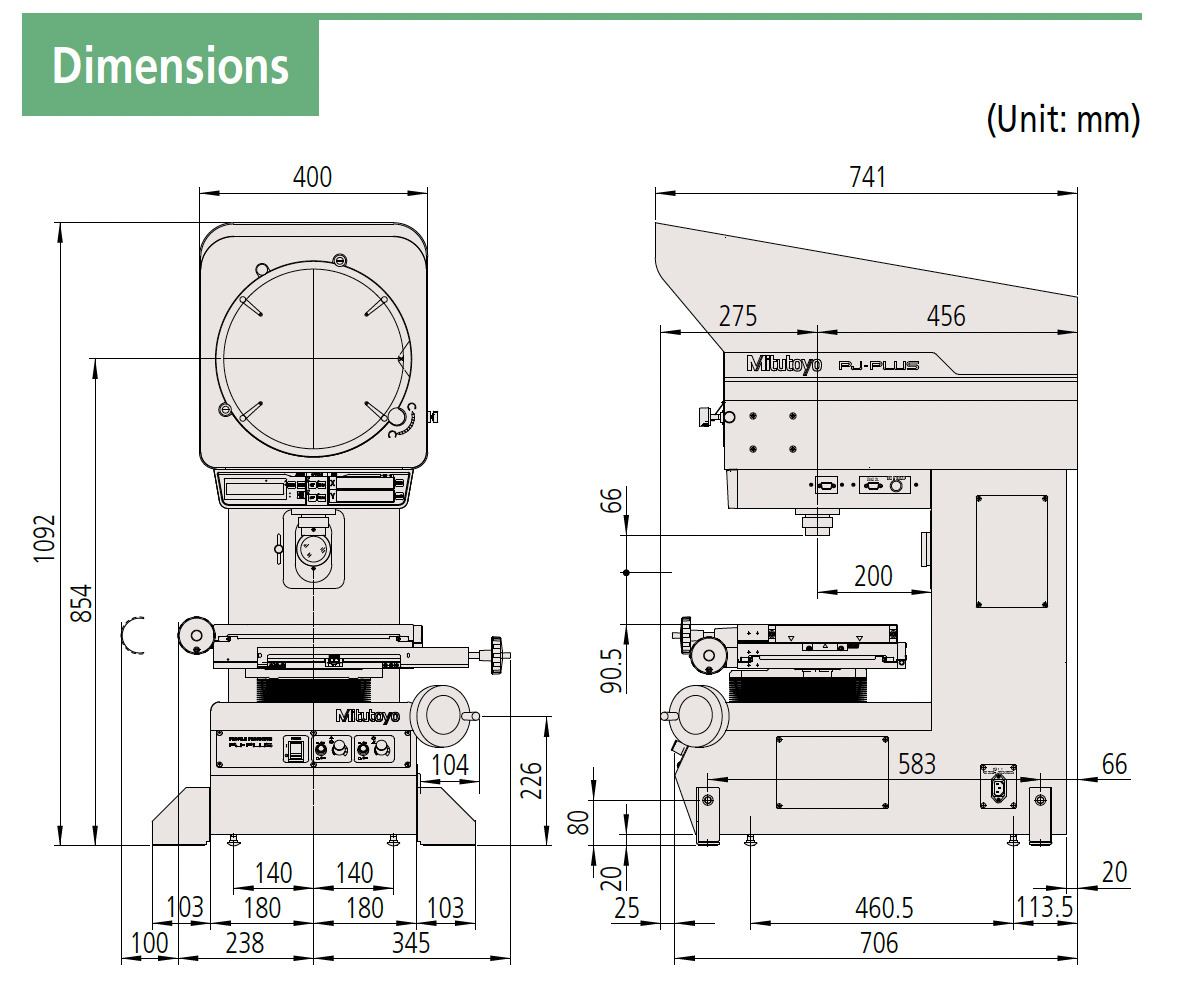

SERIES 302 Technical Data
| Projected Image: | Inverted |
|---|---|
| Protractor screen diameter: | ø.315mm / 12.4" |
| Protractor screen rotation: | ±360° (The counter displays up to ±370°) |
| Protractor screen Angle: | Digital counter (ABS / INC mode switching), Zero Set |
| Protractor screen Resolution: | 1’ or 0.01° (switchable) |
| Protractor screen Cross-hairs: | 90° solid lines |
| Projection lens Magnification Lens mount: | Bayonet mount |
| Magnification accuracy Contour illumination: | ±0.1 % or less of nominal magnification |
| Magnification accuracy Surface illumination: | ±0.15 % or less of nominal magnification |
| Contour illumination: | White LED light source, Telecentric, Variable brightness adjustment |
| Surface Illumination: | White LED light source, With an adjustable condenser lens, Variable brightness adjustment |
| Resolution: | 0.0001" / 0.001mm |
| Power Supply: | 100 V to 240 V AC, 50 / 60 Hz |
| Power Consumption: | 60 W |
Product List
| Order No.: | Product Image: | Model: | Projection lens Magnification: | Workpiece Max Height: | Mass: |
|---|---|---|---|---|---|
| 302-801-10 | - | PJ-P1010A | 10X (Standard accessory), 20X, 50X, 100X | 91mm | 114kg / 251 lbs |
| 302-802-10 | - | PJ-P2010A | External half-reflecting mirror for surface illumination (only for 10X, 20X) | 90.5mm | 118kg / 260 lbs |
