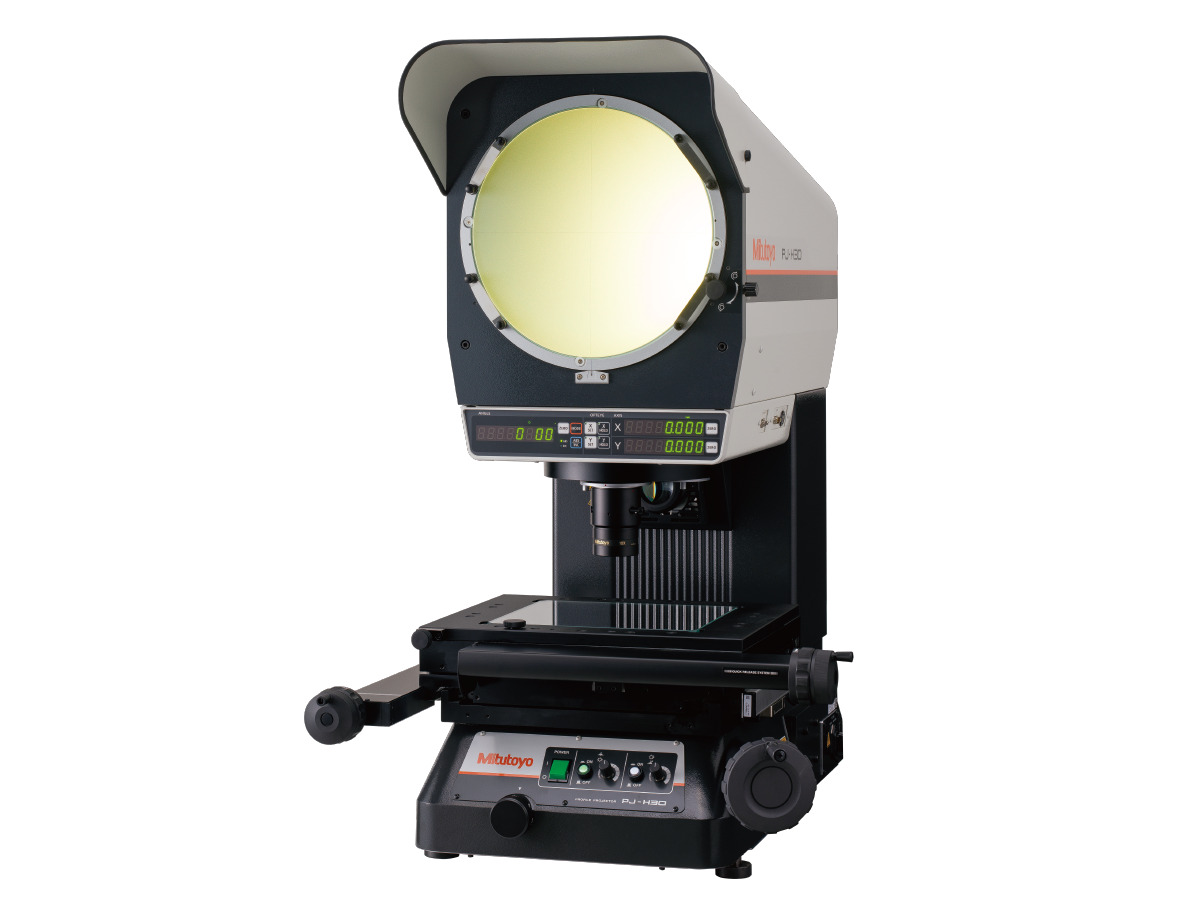

The highly accurate Mitutoyo PJ-H30 profile projector is designed for better optical performance that is easier and faster to operate.
Features & Benefits
The Mitutoyo PJ-H30 profile projector series achieves high-accuracy measurements, making this profile projector suitable for nearly every industry. The 12-inch protractor screen rotates a full 360 degrees and projects an erect image.
• Screen head moves up and down with the hand wheel or motorized unit for focusing
• The X- and Y-axes strokes are extended to ensure a maximum stage travel of 300x170mm for larger pieces
• Table features a swivel mechanism to conveniently align a workpiece
• Newly designed optical system with high NA lenses provides greater optical resolution and brighter, clearer screen images during surface illumination
• The standard three-lens mounting turret includes a 10X lens
• Four types of projection lenses are available: 5X, 20X, 50X and 100X
• The PJ-H30D model features power focusing for easier use
• 2D measurement processing is available through the use of the QM data

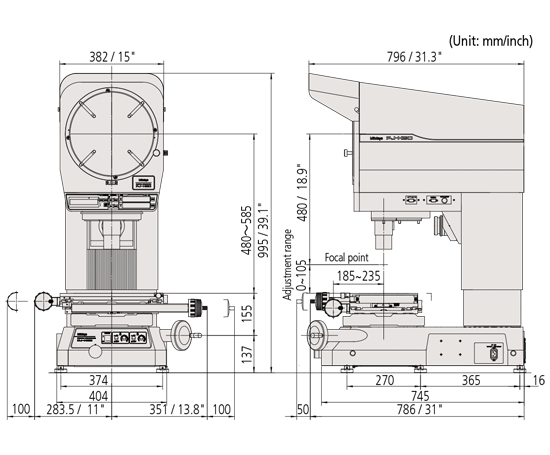

SERIES 303 Technical Data
| Projected Image: | Erect |
|---|---|
| Screen Size: | 12" / 306mm |
| Screen Material: | Fine Ground Glass |
| Reference Line: | Cross Hair Line |
| Angle Display: | Resolution 1 degree, Range 370, Functions Absolute/incremental mode switching. Zero Set |
| Magnification Accuracy Contour Illumination: | +/- 0.1 % or less |
| Magnification Accuracy Surface Illumination: | +/- 0.15% or less |
| Projection Lens: | 10X |
| Lens Mount: | 3-lens mounting turret |
| Contour Illumination Light Source: | Halogen Bulb ( 24V, 150W ) |
| Contour Illumination Optical System: | Telecentric System |
| Contour Illumination Functions: | Brightness adjustment, heat-absorbing filter, coling fan |
| Surface Illumation Light Source: | Halogen Bulb ( 24V, 150W ) |
| Surface Illumination Optical System: | Vertical / Oblique illumination with an adjustable condenser lens |
| Required Accessories: | - |
| Power Supply: | 120V AC, 50/60Hz |
| Resolution: | 0.00004" / 0.001mm |
| Workpiece Max Height: | 4.1" / 105mm |
Product List
| Order No.: | Product Image: | Model: | Focus Type: | Table Size: | Effective Table Area: | Mass: | Accessories: | Range X-Axis: | Range Y-Axis: | Workpiece Max Load: |
|---|---|---|---|---|---|---|---|---|---|---|
| 303-712-1A | - | PJ-H30A1010B | Manual | 11.84 x 9.4 / 300 x 240 | 7.1 x 5.9" / 300 x 240mm | 391 lbs. / 176kg | - | 4" / 100mm | 4" / 100mm | 10kg / 22lbs |
| 303-713-1A | - | PJ-H30A2010B | Manual | 13.8 x 11 / 350 x 280 | 9.8 x 5.9" / 350 x 280mm | 396 lbs. / 178kg | - | 8" / 200mm | 4" / 100mm | 10kg / 22lbs |
| 303-714-1A | - | PJ-H30A2017B | Manual | 16.1 x 13.5 / 410 x 342 | 10.6 x 9.4" / 410 x 342mm | 556 lbs. / 205kg | - | 8" / 200mm | 6.7" / 170mm | 20kg / 44lbs |
| 303-715-1A | - | PJ-H30A3017B | Manual | 20 x 13.5 / 510 x 342 | 14.6 x 9.4" / 510 x 342mm | 471 lbs. / 212kg | - | 12" / 300mm | 6.7" / 170mm | 20kg / 44lbs |
| 303-732-1A | - | PJ-H30D1010B | Power | 11.84 x 9.4 / 300 x 240 | 7.1 x 5.9" / 300 x 240mm | 391 lbs. / 176kg | - | 4" / 100mm | 4" / 100mm | 10kg / 22lbs |
| 303-733-1A | - | PJ-H30D2010B | Power | 13.8 x 11 / 350 x 280 | 9.8 x 5.9" / 350 x 280mm | 396 lbs. / 178kg | - | 8" / 200mm | 4" / 100mm | 10kg / 22lbs |
| 303-734-1A | - | PJ-H30D2017B | Power | 16.1 x 13.5 / 410 x 342 | 10.6 x 9.4" / 410 x 342mm | 556 lbs. / 205kg | - | 8" / 200mm | 6.7" / 170mm | 20kg / 44lbs |
| 303-735-1A | - | PJ-H30D3017B | Power | 20 x 13.5 / 510 x 342 | 14.6 x 9.4" / 510 x 342mm | 471 lbs. / 212kg | - | 12" / 300mm | 6.7" / 170mm | 20kg / 44lbs |
