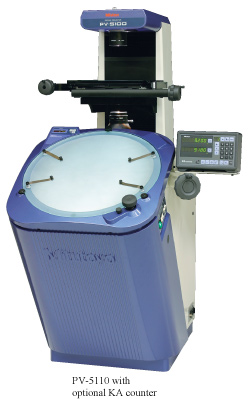

The Mitutoyo PV-5110 vertical profile projector is a floor model that features a downward illumination system and angled screen for easy part tracing or template comparison.
Series 304
PV-5110 Series – Vertical Projector with large viewing screen
Features & Benefits
The floor placement and angled 500mm screen on the Mitutoyo PV-5110 vertical profile projector allows for easing tracing and template comparisons of projected images. The downward oblique surface illumination system provides clear and bright images for easy inspection of non-reflective workpieces such as plastic parts or printed materials.
- Large 500mm screen
- Floor model that uses a downward illumination system
- Digital readout protractor screen (including zero-setting, ABS/INC coordinate switching functions) for easy and error-free angle measurement
- Angled screen allows projected images to be easily traced or compared with a template

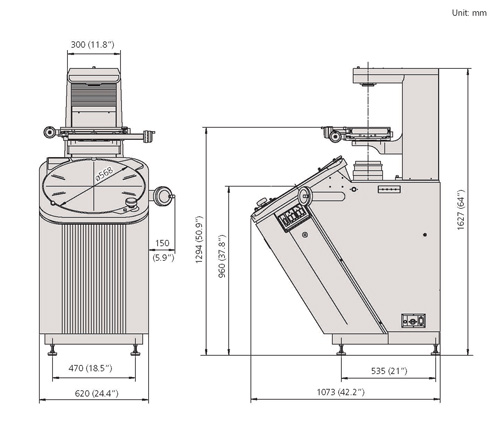

SERIES 304 Technical Data
| Projected Image: | Inverted |
|---|---|
| Screen Size: | 20" / 508mm |
| Screen Material: | Fine Ground Glass |
| Reference Line: | Cross Hair Line |
| Angle Display: | Resolution 1 minute or 0.01 degree ( switchable), range +/- 370 degree, functions: absolute/incremental mode switching, zero set |
| Magnification Accuracy Contour Illumination: | +/- 0.1 % or less |
| Magnification Accuracy Surface Illumination: | +/- 0.15% or less |
| Projection Lens: | 10X |
| Contour Illumination Light Source: | Halogen Bulb ( 24V, 150W ) |
| Contour Illumination Optical System: | Telecentric System |
| Contour Illumination Functions: | 2-step brightness switch, heat-absoribing filter, cooling fan |
| Surface Illumation Light Source: | Halogen Bulb ( 24V, 150W ) |
| Surface Illumination Optical System: | Vertical illumination |
| Power Supply: | 120V AC, 50/60Hz |
Product List
| Order No.: | Product Image: | Model: | Screen Rotation: | Measuring Unit: | Table Size: | Effective Table Area: | Mass: | Range X-Axis: | Range Y-Axis: | Resolution: | Workpiece Max Height: | Workpiece Max Load: | Accessories: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 304-919A |  |
PV-5110 | 360 dgree fine feed and clamp | built-in linear scale | 15.9 x 9.8 / 380 x 250 | 10.5 x 6.7" / 380 x 250mm | 467lbs lbs. / 210kg | 8" / 200mm | 4" / 100mm | 0.00004" / 0.001mm | 7.12" / 181mm | 17.6lbs / 8kg | - |
