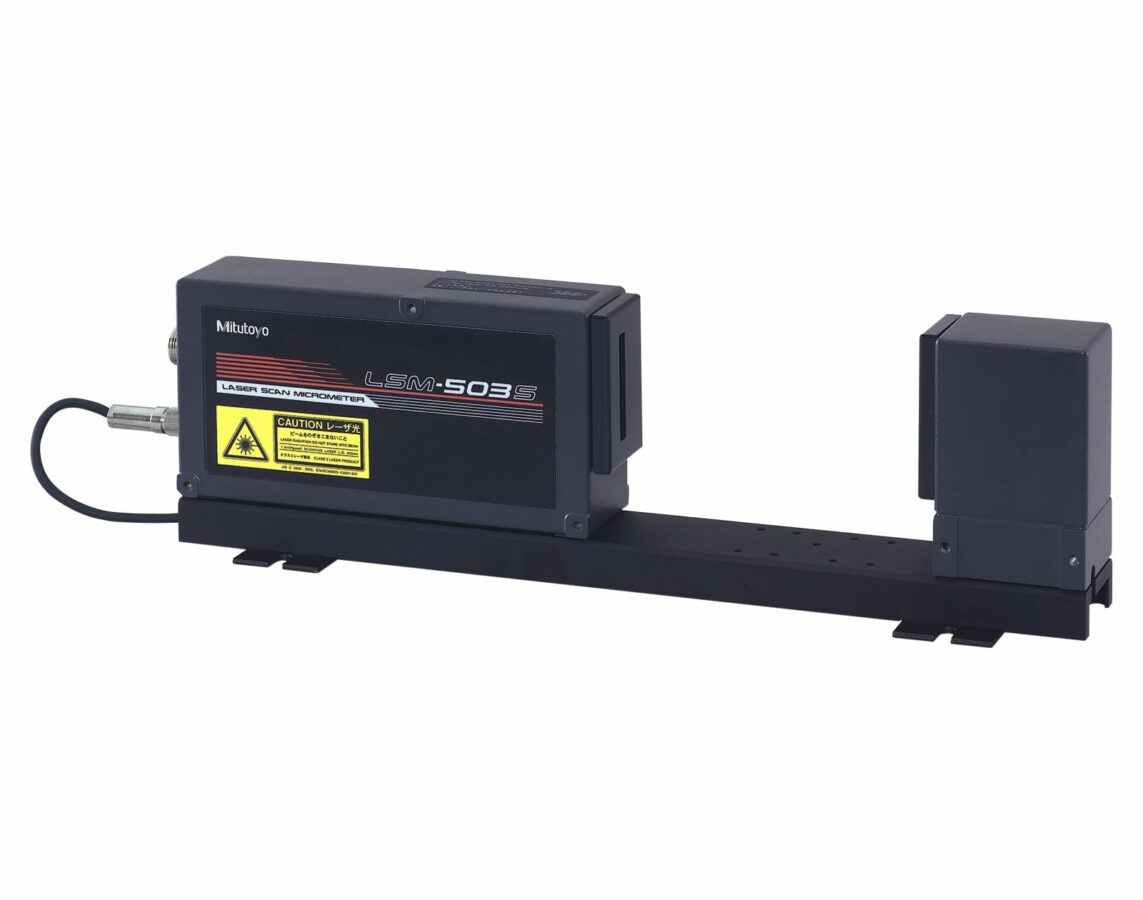

The Mitutoyo LSM-503S series Laser Scan Micrometer combines high-rate scanning with highly accurate measurements for a wide range of applications including high speed lines.
Features & Benefits
The high scanning rate (3200 scans/sec) and non-contact measuring process enables the Mitutoyo LSM-503S laser scan micrometer to provide highly accurate measurements on small, fragile workpieces at high temperatures, even when the target is vibrating or in motion. This capability makes the LSM-503S series ideal for measuring in high-speed production lines.
- Narrow range accuracy of ±(0.6+0.1ΔD)µm for high precision measurement
- Provides ultra-high accuracy of ±1.0μm over the entire measuring range (0.3 to 30mm)
- An IP64-rating resists rough measurement environments allowing it to operate at high temperatures
Product List
| Order No.: | Product Image: | Laser Classification: | Applicable Laser Standards: | Laser Wavelength: | Operating Humidity Condition Range: | Operating Temperature Range: | Scanning Rate: | User's manual: | IP Rating: | Laser Scanning Speed: | Max Range: | Max Resolution: | Min Resolution: | Resolution Range: | Measuring Range: | Measuring Area: | Min Range: | Small Range Accuracy: | Narrow Range Accuracy: | Wide Range Accuracy: | Protection Level: | Positional Error: | Repeatability: | Optional Accessories: | Required Accessories: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 544-536 | - | Visible (650nm), IEC Class 2/FDA Class II | IEC, FDA | 650 nm | RH35 to 85% (no condensation) | 0 to 40˚C | 3200 scans/second | English | IPIP64 | 226 m/s | 1.18"" /30mm | 0.005" / 100µm | 0.000001" / 0.02µm | 0.000001-0.005" / 0.02-100µm | 0.012-1.18" / 0.3-30mm | 10x30 (ø0.3 to ø30)mm | 0.012" / 0.3mm | ±(0.6+0.1ΔD)µm | ±(0.6+0.1ΔD)µm | ±1µm | IP64 | ±1.5µm | ±0.11µm | - |
