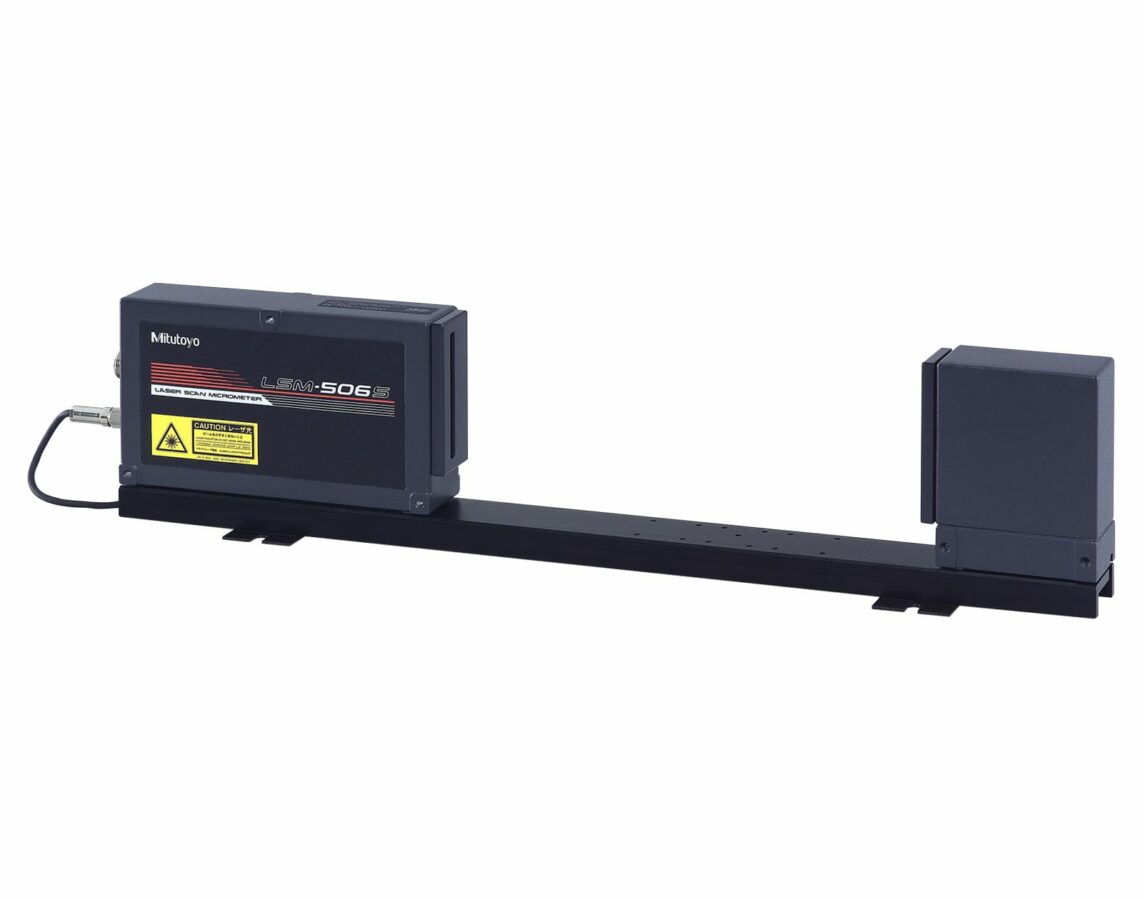

The Mitutoyo LSM-506S series Laser Scan Micrometers combine high-rate scanning with highly accurate measurements for a wide range of applications including high speed lines.
Features & Benefits
The high scanning rate (3200 scans/sec) and non-contact measuring process enables the Mitutoyo LSM-506S to provide highly accurate measurements for high speed production lines or in applications subject to vibration.
- Ensures ±3μm accuracy over the entire measuring range (1 to 60mm)
- Narrow range accuracy of ±(1.5+0.5ɅD) for high precision measurement
- An IP64-rating resists rough measurement environments allowing it to operate at high temperatures
Product List
| Order No.: | Product Image: | Laser Classification: | Applicable Laser Standards: | Laser Wavelength: | Operating Humidity Condition Range: | Operating Temperature Range: | Scanning Rate: | User's manual: | IP Rating: | Laser Scanning Speed: | Max Range: | Max Resolution: | Min Resolution: | Resolution Range: | Measuring Range: | Measuring Area: | Min Range: | Small Range Accuracy: | Narrow Range Accuracy: | Whole Range Accuracy: | Wide Range Accuracy: | Protection Level: | Positional Error: | Repeatability: | Optional Accessories: | Required Accessories: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 544-538 | - | Visible (650nm), IEC Class 2/FDA Class II | IEC, FDA | 650 nm | RH35 to 85% (no condensation) | 0 to 40˚C | 3200 scans/second | English | IPIP64 | 452 m/s | 2.36" /60mm | 0.005" / 100µm | 0.000002" / 0.05µm | 0.000002-0.005" / 0.05-100µm | 0.04-2.36" / 1-60mm | 20x60 (ø1 to ø60)mm | 0.04" / 1mm | ±(1.5+0.5ΔD)µm | ±(1.5+0.5ΔD)µm | ±3µm | ±3µm | IP64 | ±4µm | ±0.36µm | - |
