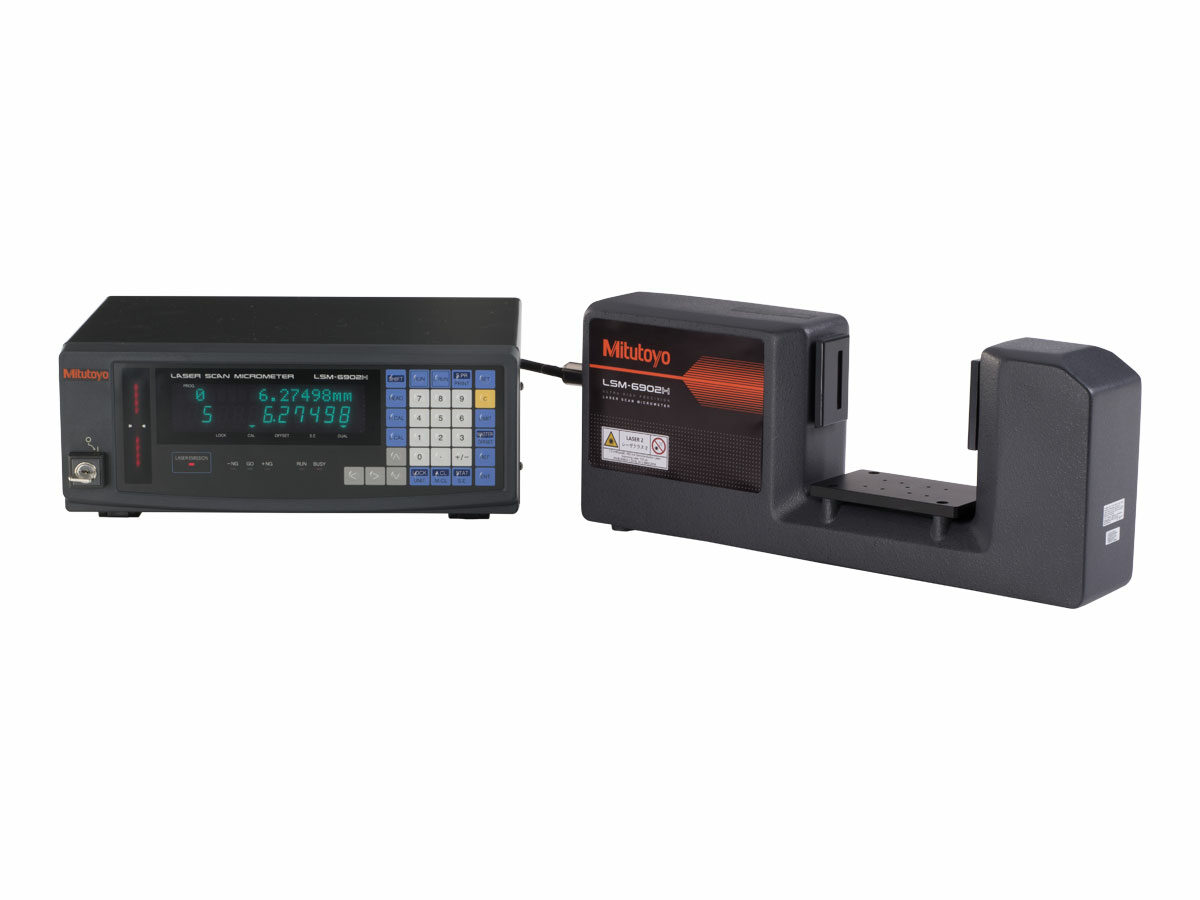

The Mitutoyo LSM-6902H laser-based measuring system demonstrates the best repeatability available in the 25mm/1 in. class.
Features & Benefits
The Mitutoyo LSM-6902H laser scan micrometer utilizes an ultra-precise scanner motor for high measurement accuracy which is ideal for delicate or moving workpieces. The LSM-6902H series is an excellent option for measuring pin or plug gages.
- Excellent linearity provides accuracy of ±0.5μm over the entire measuring range and a higher accuracy of ±(0.3+0.1ΔD)µm over a narrow range
- Measurement modes include standby, single measurement and continuous measurement for added versatility
- The LSM-6902H system consists of a measuring unit and a display unit
Product List
| Order No.: | Product Image: | Laser Classification: | Applicable Laser Standards: | Laser Wavelength: | Operating Humidity Condition Range: | Operating Temperature Range: | Scanning Rate: | User's manual: | Type: | Averaging Method: | Averaging Times: | Display: | Segment: | Judgement Options: | Laser Scanning Speed: | Max Range: | Min Resolution: | Max Resolution: | Resolution Range: | Measurement Modes: | Measuring Range: | Measuring Area: | Min Range: | Small Range Accuracy: | Narrow Range Accuracy: | Whole Range Accuracy: | Narrow Range Repeatability: | Whole Range Repeatability: | Optional Accessories: | Required Accessories: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 544-499-1A | - | Visible (650nm), IEC Class 2/FDA Class II | IEC, FDA | 650 nm | RH35 to 85% (no condensation) | 0 to 40˚C | 3200 scans/second | English | Inch/mm | Arithmetic average: 8 to 2048 scans. Moving average: 32 to 2048 scans | Arithmetic average: per 1 to 2048/Moving average: 32 to 2048 | 16-digit (upper column) + 7 segment 11-digit (lower column), guidance LEDs | 1 to 7 (1 to 3, transparent) or 1 to 255 edges | Select from target value+tolerance, lower & upper tolerance, or 7 step multi-limit tolerance zones | 226 m/s | 1" /25mm | 0.000001" / 0.01µm | 0.005" / 10µm | 0.000001-0.0005" / 0.01-10µm | Standby, single measurement continuous measurements | 0.004-1" / 0.1-25mm | ±0.6x1.0" / ±1.5x25mm | 0.004" / 0.01mm | ±(0.000012+0.001ΔD)" / ±(0.3+0.1ΔD)µm | ±(0.3+0.1ΔD)µm | ±0.000020" / ±0.5µm | ±0.0000012" / Ø10mm / ±0.03µm | ±0.0000018" / ±0.045µm | - |
