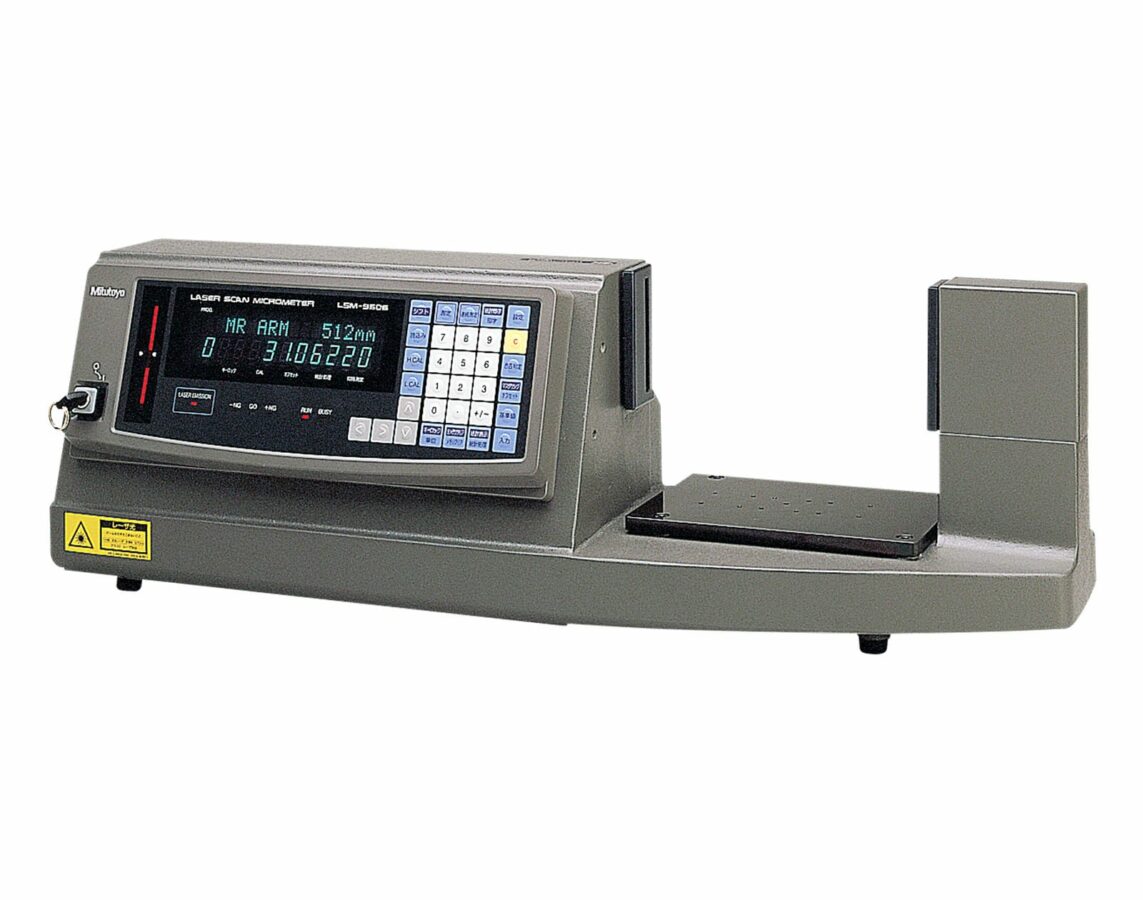

The compact design of the Mitutoyo bench top LSM-9506 series with built-in display provides ease of use and offers portability in the shop or lab.
Features & Benefits
The bench-top type Mitutoyo LSM-9506 Laser Scan Micrometer with integrated display is ideal for quality control, providing the same accuracy as hand micrometers, but at faster speeds. The LSM-9506 offers excellent gage repeatability and reproducibility by automatically measuring a workpiece after it is positioned in optional V-blocks or a workstage.
- Digimatic output capabilities allow measurements to import into Microsoft Excel™ spreadsheets or data management software such as Mitutoyo MeasurLink®
- Integrated digital display is easy to read and offers faster, more reliable measurements
- The durable, compact design offers portability to relocate to areas where non-contact measurements of small workpieces are needed

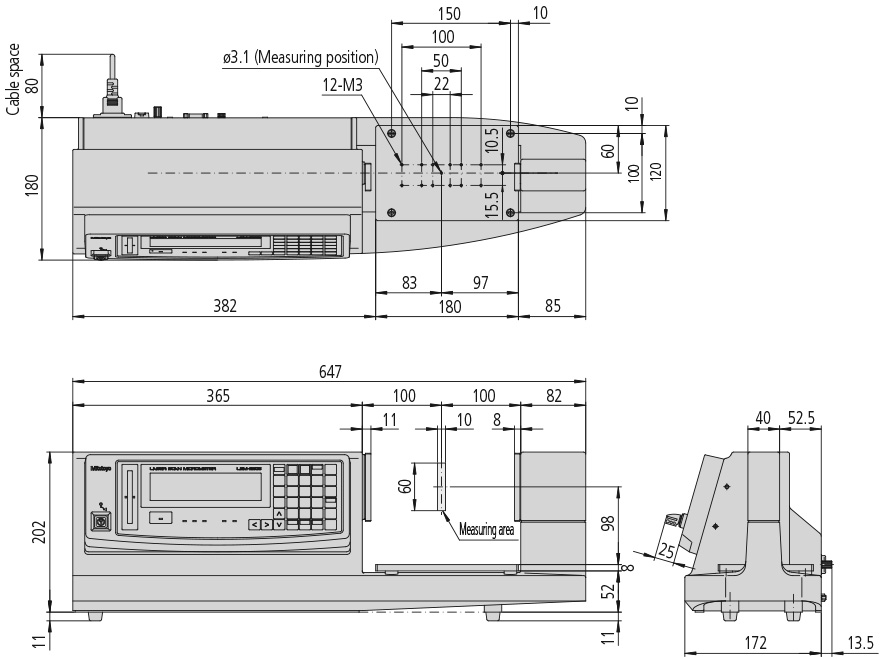

Product List
| Order No.: | Product Image: | Laser Classification: | Applicable Laser Standards: | Laser Wavelength: | Operating Humidity Condition Range: | Operating Temperature Range: | Scanning Rate: | User's manual: | Accuracy: | Averaging Method: | Display: | Standard Interface: | Optional Interface: | Judgement Options: | Laser Scanning Speed: | Max Range: | Min Resolution: | Max Resolution: | Resolution Range: | Measurement Modes: | Measuring Range: | Measuring Area: | Min Range: | Positional Error: | Power Supply: | Repeatability: | Type: | Optional Accessories: | Required Accessories: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 544-116-1A | - | Visible (650nm), IEC Class 2/FDA Class II | IEC, FDA | 650 nm / 8900 in/s | RH35 to 85% (no condensation) | 0 to 40˚C | 3200 scans/second | English | ±0.0001" / ±2.5µm | Arithmetic average: 8 to 2048 scans. Moving average: 32 to 2048 scans | 16-digit dot matrix (upper column) + 7 segment 11-digit (lower column), guidance LEDs | RS-232C, Digimatic code output unit (1ch) | No | Select from target value+tolerance, lower & upper tolerance, or 7 step multi-limit tolerance zones | 226 m/s | 2.36" /60mm | 0.000002" / 0.00005mm | 0.005" / 0.1mm | 0.000002-0.005" / 0.00005-0.1mm | Standby, single measurement continuous measurements | 0.02-2.36" / .05-60mm | ±0.2x2.36" / ±5x60mm | 0.02" / 0.5mm | ±0.0001" / ±2.5µm | 120 V AC ±10%, 40VA, 60Hz | ±0.00003" / ±0.6µm | Inch/mm | - |
