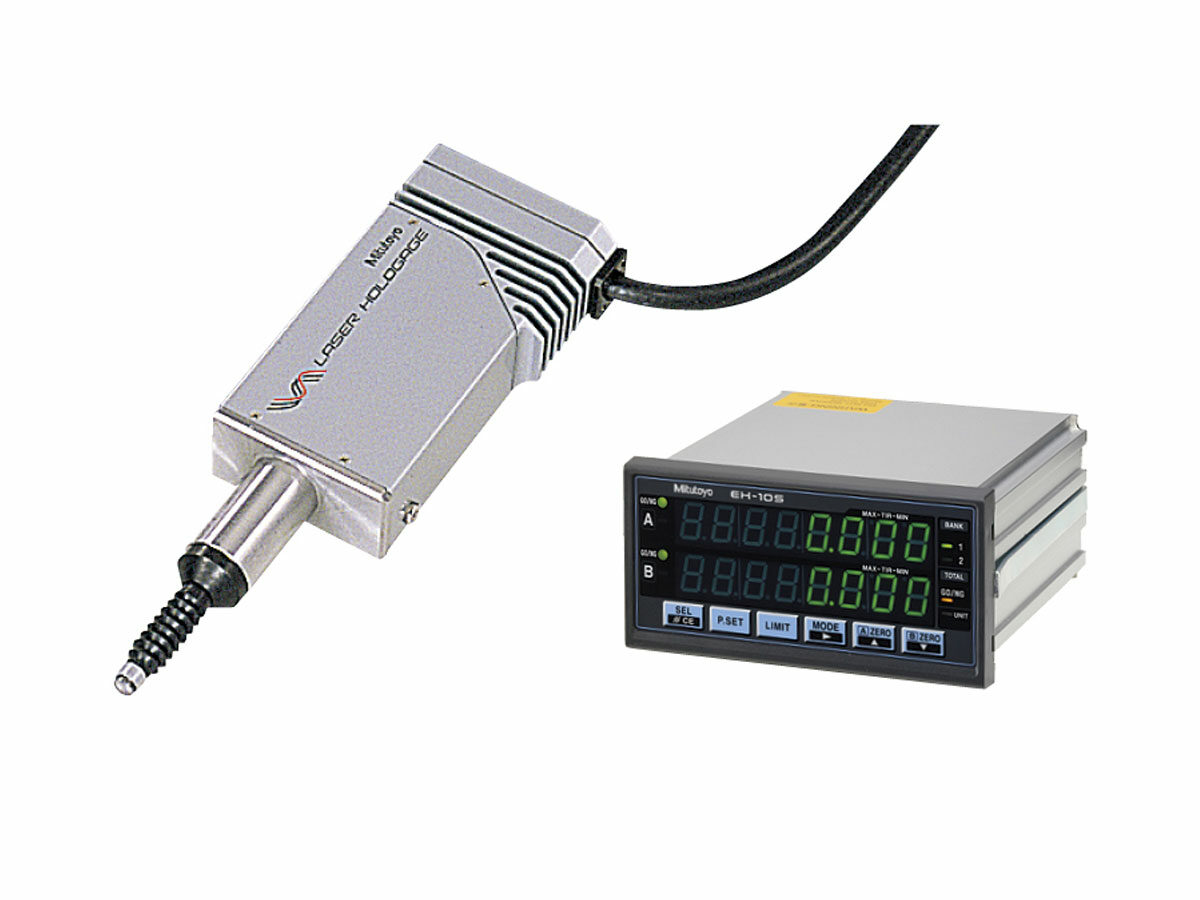

The Mitutoyo LGH Laser Hologage is a high-end digital gaging system that employs the newest technologies to attain highly accurate and repeatable measurements.
Features & Benefits
The Mitutoyo LGH Laser Hologage offers an extremely accurate, ultra-high-resolution photoelectric reflective linear encoder (0.01 models) or ultra-high-resolution laser interference (0.005 models) which provides superior performance over its entire measuring range of 10mm. Includes excellent measuring stability which resists unfavorable environmental conditions, such as, air movement and atmospheric pressure changes.
- Range: 10mm (.4”)
- LGH/counter bundles have switchable resolutions of: 5nm/0.005μm* (.1 μin*), 0.01μm (.5 μin), 0.1μm (5 μin), 0.5μm (20 μin), 1μm (50 μin)
- Low measuring force models are available (542-716A, 542-721A) for measuring easily deformed workpieces or delicate films
- Measurement data can be stored and controlled by PC software.
- High precision linear ball bearings are used in the spindle guide for smooth movement and exceptional durability
- Every LGH series gage is bundled with a dedicated counter
* 542-720A and 542-721A only
Technical Data
| Accuracy: | ±0.1µm |
|---|---|
| Bearing Type: | Linear ball bearing |
| Connecting Cable: | 2m |
| Contact Point: | 901312 |
| Stem Diameter: | 15mm |
| Mass: | 220g |
| Max Response Speed: | 250mm/s |
| Measuring Range: | 0.39" / 10mm |
| Position Detection Method: | High accuracy transmission-type linear encoder |
| Repeatability: | 0.2µm |
| Resolution: | 0.0000005" / 0.5µin / 0.000005mm / 0.005µm |
| Retrace Error: | 0.05µm |
| Storage Humidity Range: | RH 20 to 80% (no condensation) |
| Storage Temperature Range: | -10 to 60˚C |
| Provided with Inspection Certificate: | Yes |
Product List
| Order No.: | Product Image: | Max Measuring Force Upward: | Max Measuring Force Horizontal: | Max Measuring Force Downward: | Operating Humidity Condition Range: | Operating Temperature Range: | Remarks: | Optional Accessories: |
|---|---|---|---|---|---|---|---|---|
| 542-720A | - | 0.45N | 0.55N | 0.65N | RH20 to 80% (no condensation) | 0 to 40˚C | - | - |
| 542-721A | - | - | - | 0.12N | RH30 to 60% (no condensation) | 15 to 25˚C | Low measuring force | - |
