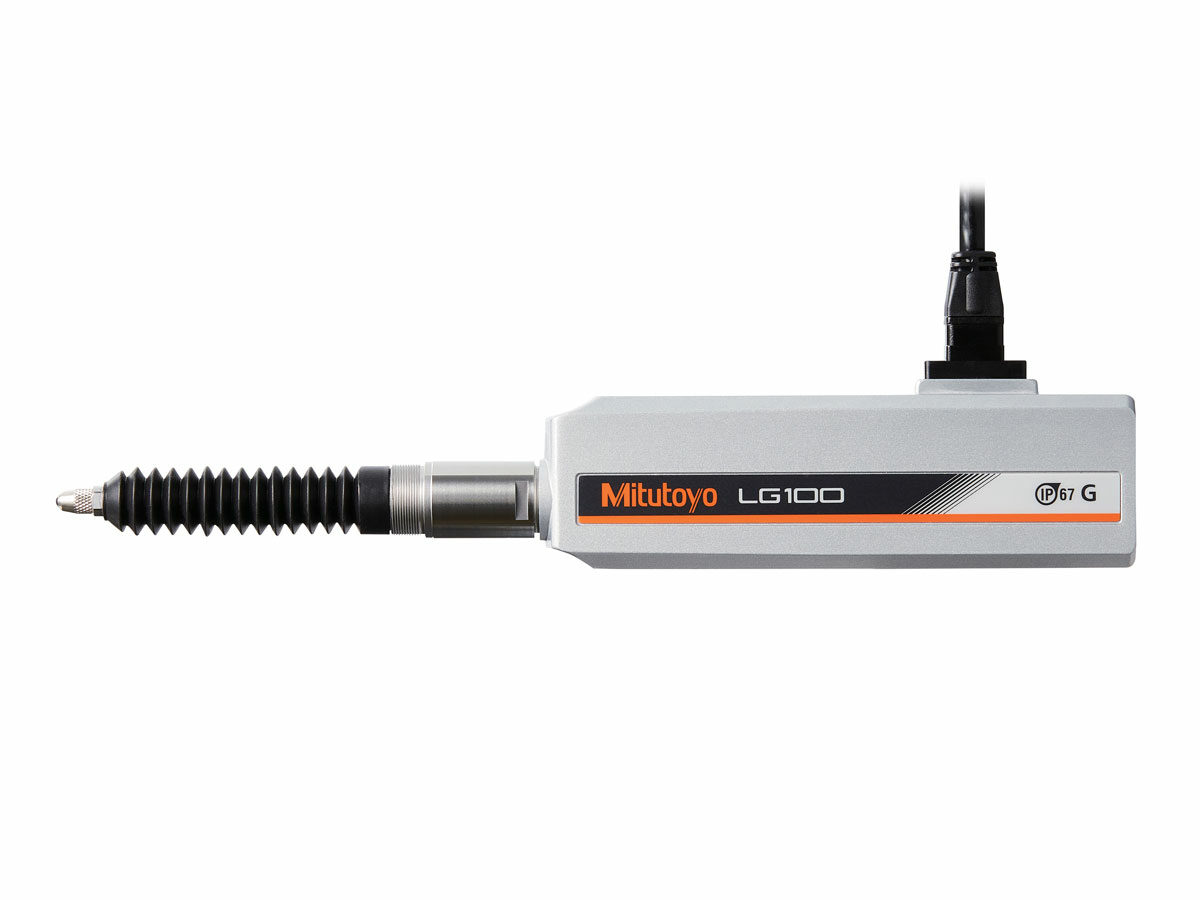

The Mitutoyo LG-100 linear gage is designed to be used inline or in measurement cells, enabling real-time measurement and data management in any type of work environment.
Features & Benefits
The compact, high-speed Mitutoyo LG-100 linear gage delivers production site visualization, improved productivity, and information feedback. The LG-100 has an IP67G rating for excellent coolant, oil and dust resistance, making it ideal for in-line measurements or use in measurement cells on the shop floor. Reference point signal output functions are featured throughout this series. When incorporating into a device the master setting value is easy to set and is retained after shutdown. The ability to recall the origin ensures excellent reliability. Up to 8 compact EJ counters counters can be linked providing the capacity to connect up to 16 gages.
- Up to 8 compact EJ counters counters can be linked providing the capacity to connect up to 16 gages
- Photoelectric encoder gives the sensor high precision across the entire measuring range as well as higher resistance to electrical interference
- Data can be output through an industrial interface (CC-Link) by linking a compact counter (EJ counter) with an interface unit
- Available with 8mm or 15mm stem diameters
- Resolution of each model can be selected from 0.5μm (20 μin) or 1μm (50 μin)
- Ranges: 10mm (.4”), 25mm (1”), or 50mm (2”)
- Excellent shock resistance: 1000m/s2 (IEC 60068-2-27)
Technical Data
| Narrow Range Accuracy: | 0.5µm |
|---|---|
| Repeatability: | 0.3µm |
| IP Rating: | IPIP67G |
| Impact Resistance: | 1000m/s2 (IEC 60068-2-27) |
Product List
| Order No.: | Product Image: | Accuracy: | Stem Diameter: | Mass: | Max Measuring Force Upward: | Max Measuring Force Horizontal: | Max Measuring Force Downward: | Measuring Range: | Output: | Signal Output Pitch: | Resolution: | Optional Accessories: | Required Accessories: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 542-190 | - | ±(1.5+L/50)µm | 8mm | 260g | 1.2N | 1.3N | 1.4N | 0.4" / 10mm | TTL - 90˚ phase difference, differential square wave (RS-422A equivalent), minimum edge intervals: 500ns | 4µm | 0.00005" / 0.001mm | - | |
| 542-191 | - | ±(1.5+L/50)µm | 8mm | 260g | 1.2N | 1.3N | 1.4N | 0.4" / 10mm | TTL - 90˚ phase difference, differential square wave (RS-422A equivalent), minimum edge intervals: 250ns | 2µm | 0.00002" / 0.0005mm | - | |
| 542-192 | - | ±(0.8+L/50)µm | 8mm | 260g | 1.2N | 1.3N | 1.4N | 0.4" / 10mm | TTL - 90˚ phase difference, differential square wave (RS-422A equivalent), minimum edge intervals: 250ns | 0.4µm | 0.000005" / 0.0001mm | - | |
| 542-193 | - | ±(1.5+L/50)µm | 15mm | 300g | 4N | 4.3N | 4.6N | 1" / 25mm | TTL - 90˚ phase difference, differential square wave (RS-422A equivalent), minimum edge intervals: 500ns | 4µm | 0.00005" / 0.001mm | - | |
| 542-194 | - | ±(1.5+L/50)µm | 15mm | 300g | 4N | 4.3N | 4.6N | 1" / 25mm | TTL - 90˚ phase difference, differential square wave (RS-422A equivalent), minimum edge intervals: 250ns | 2µm | 0.00002" / 0.0005mm | - | |
| 542-195 | - | ±(0.8+L/50)µm | 15mm | 300g | 4N | 4.3N | 4.6N | 1" / 25mm | TTL - 90˚ phase difference, differential square wave (RS-422A equivalent), minimum edge intervals: 250ns | 0.4µm | 0.000005" / 0.0001mm | - | |
| 542-196 | - | ±(1.5+L/50)µm | 15mm | 400g | 4.9N | 5.3N | 5.7N | 2" / 50mm | TTL - 90˚ phase difference, differential square wave (RS-422A equivalent), minimum edge intervals: 500ns | 4µm | 0.00005" / 0.001mm | - | |
| 542-197 | - | ±(1.5+L/50)µm | 15mm | 400g | 4.9N | 5.3N | 5.7N | 2" / 50mm | TTL - 90˚ phase difference, differential square wave (RS-422A equivalent), minimum edge intervals: 250ns | 2µm | 0.00002" / 0.0005mm | - |
