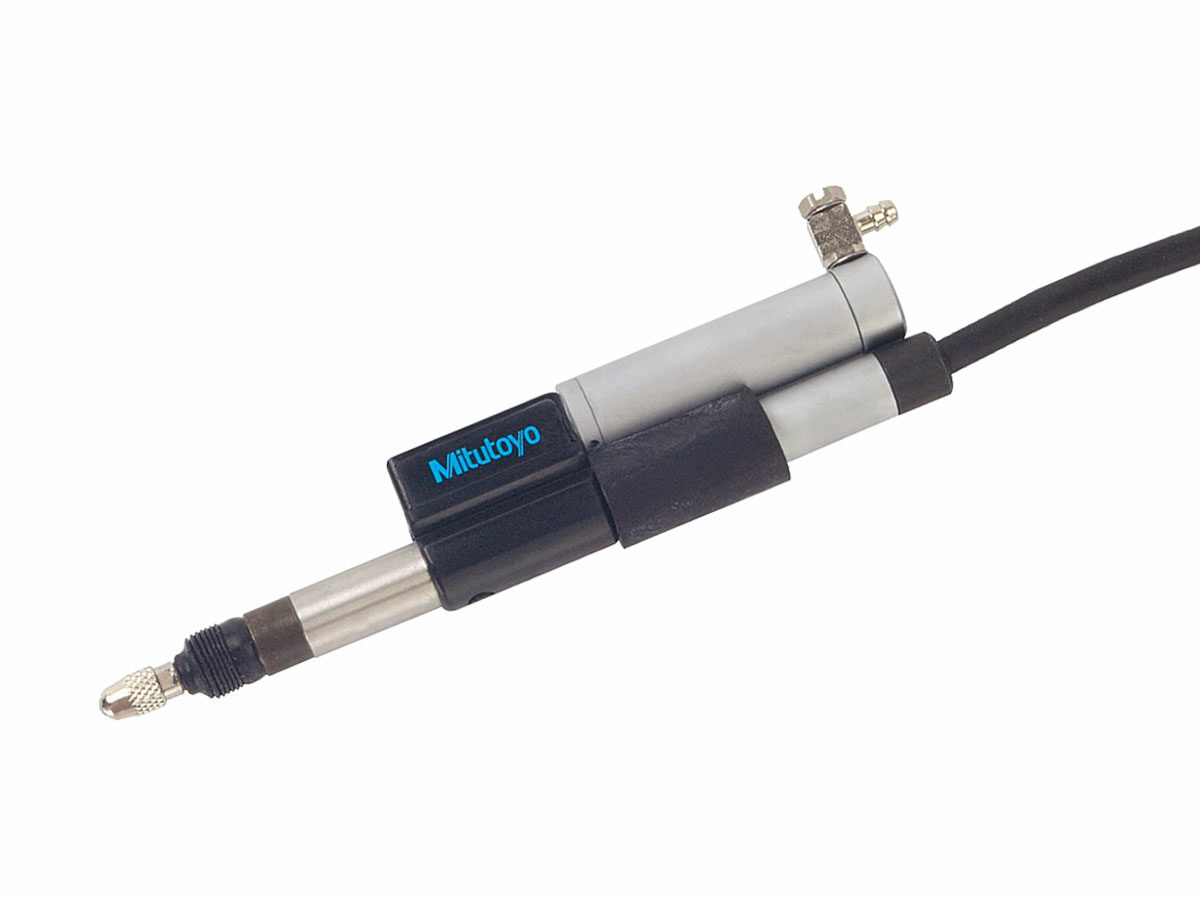

The compact LGB linear gage is a displacement probe designed for measuring displacement or thickness in a wide range of applications such as automation environments, clustered probing and shop floor environments.
Features & Benefits
The Mitutoyo LGB linear gage is ideal for general measurements and its compact size allows for installation into areas where space is limited. High precision ball bearings in the spindle guide provides extremely smooth movements and the low measuring force delivers accurate measurements on an array of materials.
- Photoelectric encoder offers a high precision sensor across the entire measuring range, as well as, high resistance to electrical interference
- Resolution: 1μm (50 μin)
- L-shaped gage range: 5mm (.2”)
- Low measuring force gage range: 10mm (.4”)
- IP54 rating provides coolant, oil and dust resistance
- Compact form (ø8mm straight stem) can easily be built-into gaging
- TTL output for ease of communication
- Air-lift model also available
Technical Data
| IP Rating: | IP54 |
|---|---|
| Operating Humidity Condition Range: | RH20 to 80% (no condensation) |
| Operating Temperature Range: | 0 to 40˚C |
| Storage Humidity Range: | RH 20 to 80% (no condensation) |
| Storage Temperature Range: | -10 to 60˚C |
| Bearing Type: | Linear ball bearing |
| Connection: | Plug: RS12BPE-6PH, Compatible receptacle: RM12BRD-6S (Hirose) |
| Contact Point: | 901312 |
| Stem Diameter: | 8mm |
| Position Detection Method: | Photoelectric linear encoder |
| Max Response Speed: | 900mm/s |
| Output: | TTL - 90˚ phase difference, differential square wave (RS-422A equivalent), minimum edge intervals: 500ns |
| Signal Output Pitch: | 4µm |
| Resolution: | 0.00005" / 50µin / 0.001mm / 1µm |
| Connecting Cable: | 2m |
Product List
| Order No.: | Product Image: | Accuracy: | Mass: | Max Measuring Force Upward: | Max Measuring Force Horizontal: | Max Measuring Force Downward: | Measuring Range: | Air Requirement Range: | Remarks: | Optional Accessories: |
|---|---|---|---|---|---|---|---|---|---|---|
| 542-204 | - | ±2µm | 145g | 0.55N | 0.6N | 0.65N | 0.2" / 5mm | - | L-shaped body | - |
| 542-204H | - | ±1µm | 145g | 0.55N | 0.6N | 0.65N | 0.2" / 5mm | - | High accuracy type | - |
| 542-222 | - | ±2µm | 150g | 0.7N | 0.75N | 0.8N | 0.4" / 10mm | - | - | - |
| 542-222H | - | ±1µm | 150g | 0.7N | 0.75N | 0.8N | 0.4" / 10mm | - | High accuracy type | - |
| 542-224 | - | ±2µm | 165g | 0.5N | 0.55N | 0.6N | 0.4" / 10mm | - | Low measuring force | - |
| 542-230 | - | ±2µm | 165g | 0.7N | 0.75N | 0.8N | 0.4" / 10mm | 0.3 - 0.4 MPa | Air-driven | - |
