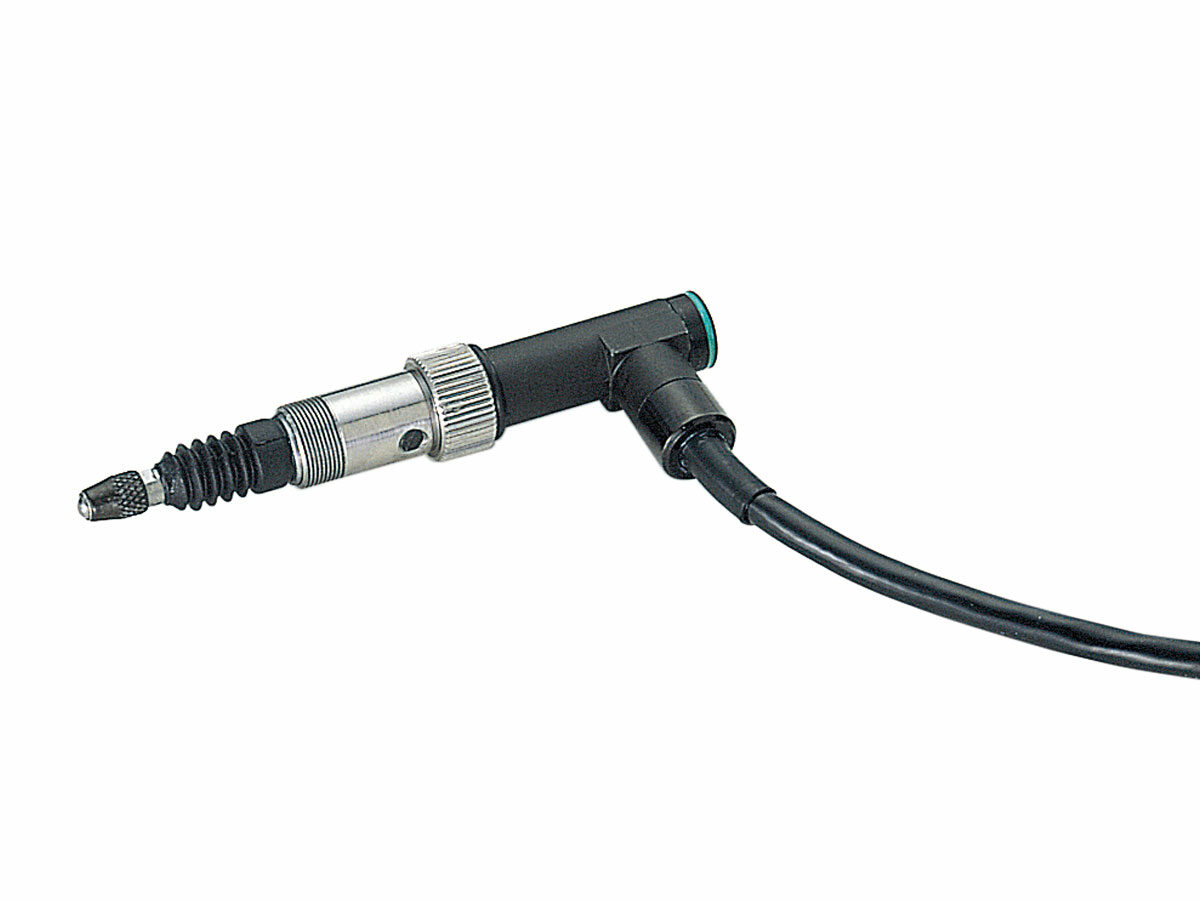

The compact LGB linear gage is a displacement probe designed for measuring displacement or thickness in a wide range of applications such as automation environments, clustered probing and shop floor environments. The clamp nut feature allows for easy mounting.
Features & Benefits
The LGB linear gage is ideal for general measurements and its compact size allows for installation into areas where space is limited. High precision ball bearings in the spindle guide provide extremely smooth movements and the low measuring force delivers accurate measurements on an array of materials. The built-in clamp nut feature offers easy mounting to optional brackets or custom fixtures.
- Photoelectric encoder provides a high precision sensor across the entire measuring range, as well as, high resistance to electrical interference
- The resolution is 0.1μm (5 μin)
- L-shaped gage range: 5mm (.2”)
- Low measuring force gage range: 10mm (.4”)
- IP54 rating provides coolant, oil and dust resistance
- Compact form (ø8mm straight stem) can easily be built-into gaging
- Nut clamp type for easy mounting
- TTL output for ease of communication
- Air-lift model also available
Product List
| Order No.: | Product Image: | Accuracy: | Bearing Type: | Signal Cable Length: | Connection: | Contact Point: | Gage Stem Diameter: | IP Rating: | Mass: | Max Measuring Force Upward: | Max Measuring Force Horizontal: | Max Measuring Force Downward: | Max Response Speed: | Measuring Range: | Operating Humidity Condition Range: | Operating Temperature Range: | Output: | Signal Output Pitch: | Position Detection Method: | Resolution: | Storage Humidity Range: | Storage Temperature Range: | Remarks: | Optional Accessories: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 542-246 | - | ±0.8µm | Linear ball bearing | 2m | Plug: RS12BPE-6PH, Compatible receptacle: RM12BRD-6S (Hirose) | 901312 | 0.375" / 9.5mm | IP54 | 160g | 0.55N | 0.6N | 0.65N | 380mm/s | 0.2" / 5mm | RH20 to 80% (no condensation) | 0 to 40˚C | TTL - 90˚ phase difference, differential square wave (RS-422A equivalent), minimum edge intervals: 200ns | 0.4µm | Photoelectric linear encoder | 0.000005" / 5µin / 0.0001mm / 0.1µm | RH 20 to 80% (no condensation) | -10 to 60˚C | L-shaped body | - |
