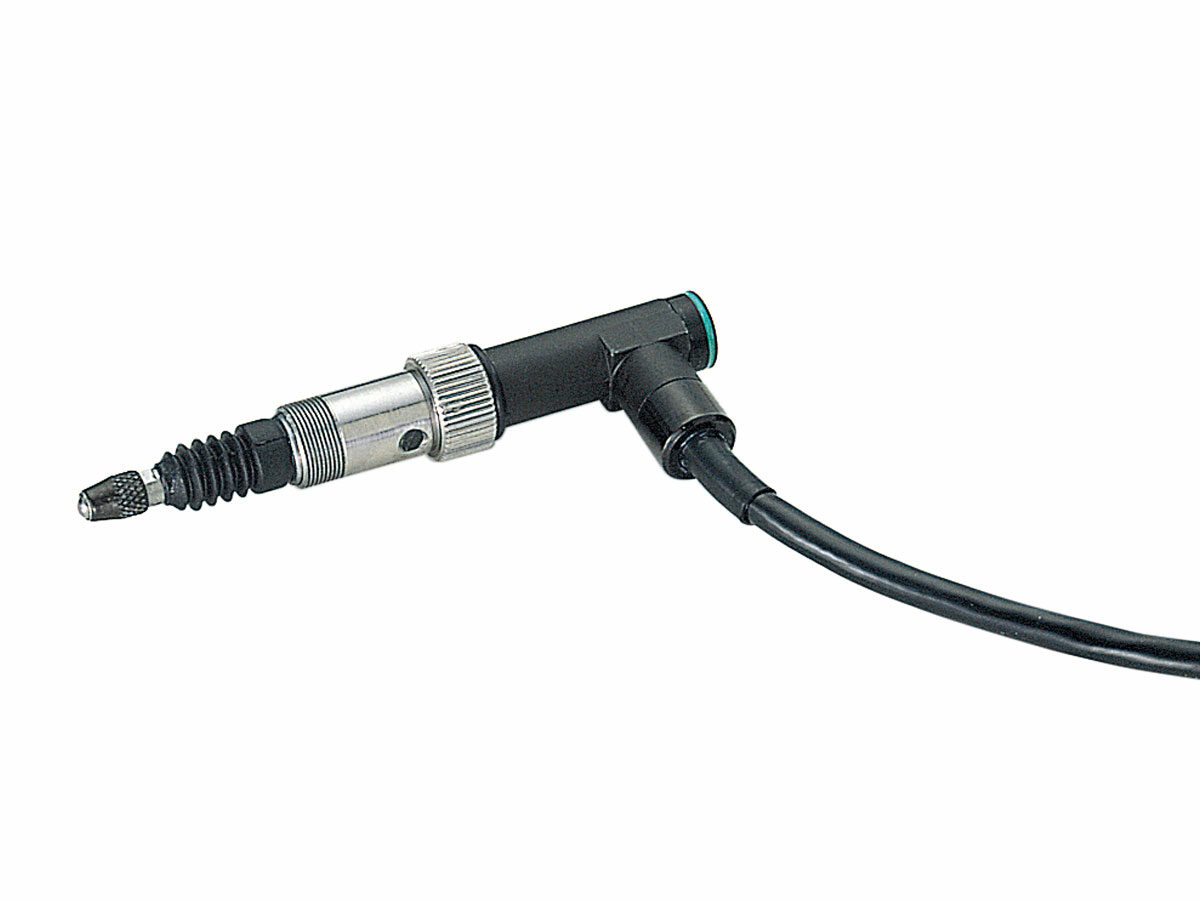

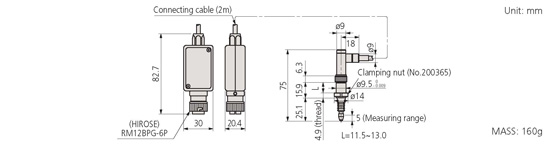

The compact LGB linear gage is a displacement probe designed for measuring displacement or thickness in a wide range of applications such as automation environments, clustered probing and shop floor environments. The clamp nut feature allows for easy mounting.
The LGB linear gage is ideal for general measurements and its compact size allows for installation into areas where space is limited. High precision ball bearings in the spindle guide provides extremely smooth movements and the low measuring force delivers accurate measurements on an array of materials. The built-in clamp nut feature offers easy mounting to optional brackets or custom fixtures.
| IP Rating: | IP54 |
|---|---|
| Operating Humidity Condition Range: | RH20 to 80% (no condensation) |
| Operating Temperature Range: | 0 to 40˚C |
| Storage Humidity Range: | RH 20 to 80% (no condensation) |
| Storage Temperature Range: | -10 to 60˚C |
| Bearing Type: | Linear ball bearing |
| Connecting Cable: | 2m |
| Connection: | Plug: RS12BPE-6PH, Compatible receptacle: RM12BRD-6S (Hirose) |
| Contact Point: | 901312 |
| Stem Diameter: | 9.5mm |
| Position Detection Method: | Photoelectric linear encoder |
| Max Response Speed: | 900mm/s |
| Output: | TTL - 90˚ phase difference, differential square wave (RS-422A equivalent), minimum edge intervals: 500ns |
| Signal Output Pitch: | 4µm |
| Resolution: | 0.00005" / 50µin / 0.001mm / 1µm |
| Order No.: | Product Image: | Accuracy: | Remarks: | Optional Accessories: |
|---|---|---|---|---|
| 542-244 | - | ±2µm | L-shaped body | - |
| 542-262 | - | ±2µm | - | - |
| 542-262H | - | ±1µm | High accuracy type | - |
| 542-264 | - | ±2µm | Low measuring force | - |
| 542-270 | - | ±2µm | Air-driven | - |
