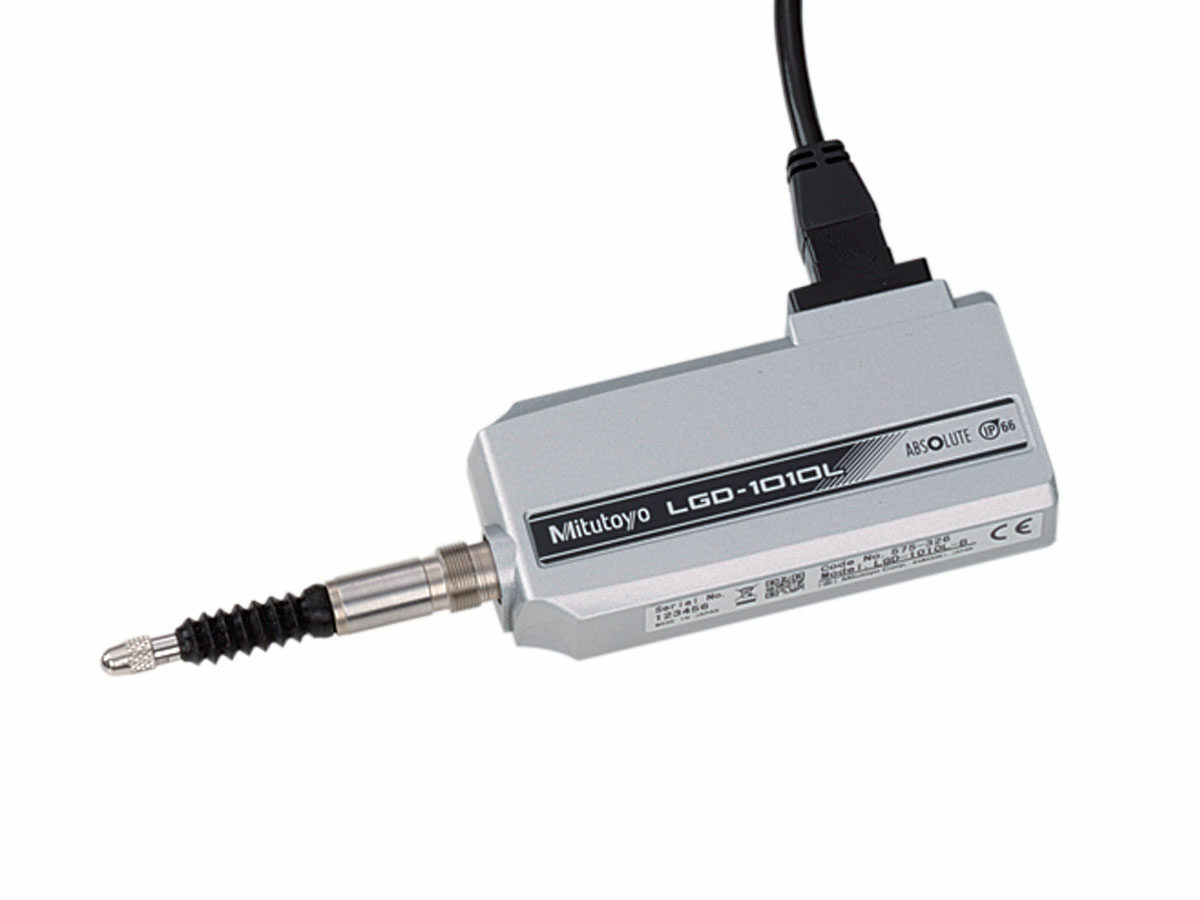

The digital ABSOLUTE LGD is a robust optical sensor linear gage that outputs data in Digimatic format to a document and determines values connected to Digimatic data processing units and interfaces.
Features & Benefits
The ABSOLUTE position detection on the LGD linear gage maintains the reference point even when the power is switched off. The differential square-wave signal output on the LGD linear gage enables use of the sensor in a wide range of applications. With a compact design and an IP66 rating for excellent resistance to coolant, oil and dust, the LGD gage is ideal for installation in automation applications, machines, harsh environments and very tight spaces.
- Absolute position detection makes it possible to maintain the reference point even when the power is switched off
- Ranges: 10mm (.4”), 25mm (1”), or 50mm (2”)
- Resolution: 10μm / .0005”
- Advanced plunger guidance assembly construction provides excellent vibration and shock resistance
- The spindle guide uses high-precision linear ball bearings which provide extremely smooth movement and exceptional durability
- Sliding durability improved to remain serviceable for at least 15 million cycles
- Excellent shock resistance: 100g/11ms (IEC 60068-2-27)
- Low-profile design allows narrow-space installation
- Mitutoyo Digimatic output
Technical Data
| IP Rating: | IP66 |
|---|---|
| Accuracy: | 0.001" / ±20µm |
| Operating Humidity Condition Range: | RH20 to 80% (no condensation) |
| Operating Temperature Range: | 0 to 40˚C |
| Storage Humidity Range: | RH 20 to 80% (no condensation) |
| Storage Temperature Range: | -10 to 60˚C |
| Bearing Type: | Linear ball bearing |
| Connecting Cable: | 2m |
| Connection: | Standard 10 pin Digimatic connector |
| Contact Point: | 901312 |
| Position Detection Method: | Absolute electrostatic capacitance linear encoder |
| Shock Resistance: | 100G |
| Max Response Speed: | Unlimited |
| Resolution: | 0.0005" / 0.01mm |
| Output: | Digimatic |

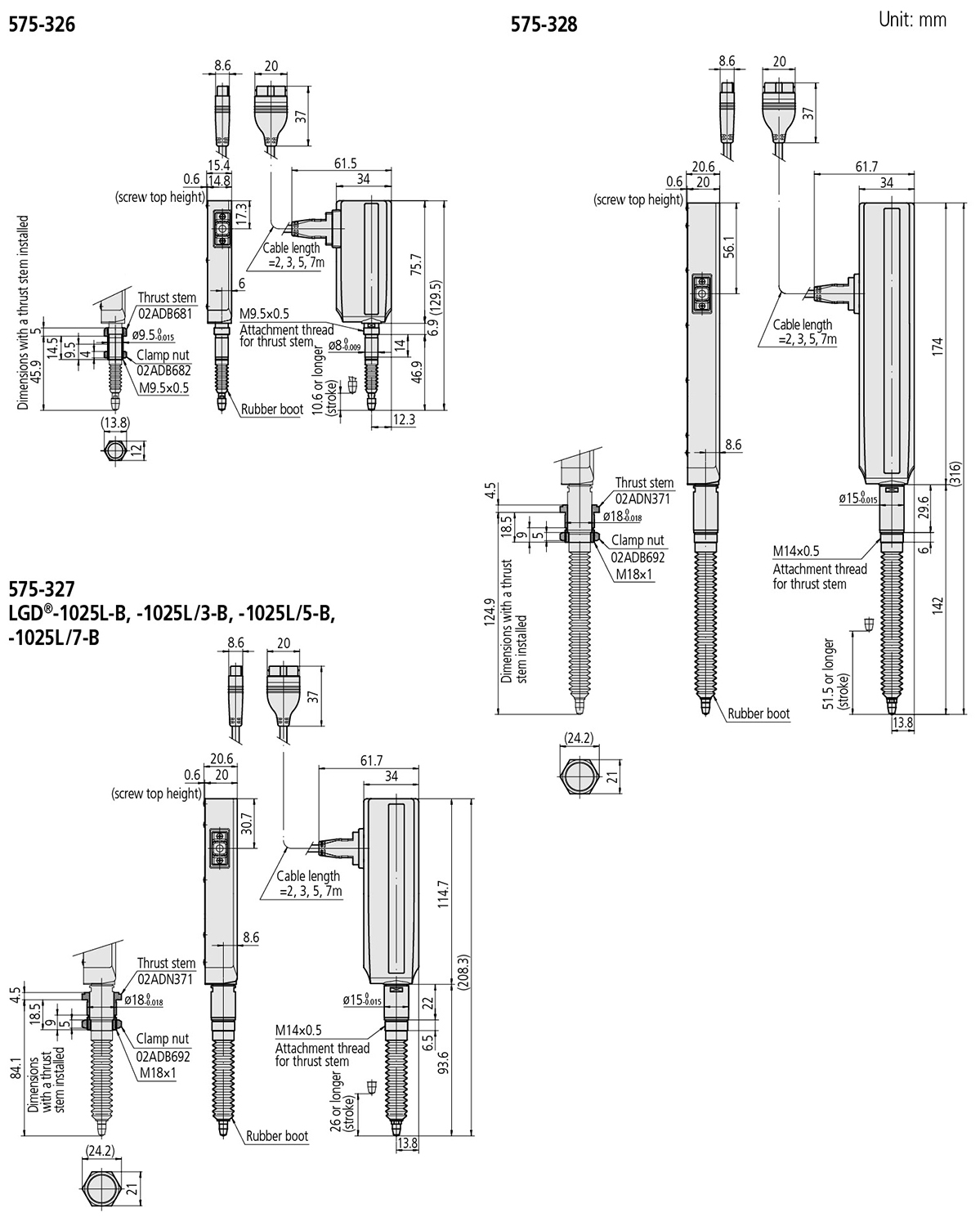

Product List
| Order No.: | Product Image: | Stem Diameter: | Mass: | Max Measuring Force Upward: | Max Measuring Force Horizontal: | Max Measuring Force Downward: | Measuring Range: | Optional Accessories: |
|---|---|---|---|---|---|---|---|---|
| 575-326 | - | 8mm | 260g | 1N | 1.1N | 1.2N | 0.4" / 10mm | - |
| 575-327 | - | 15mm | 300g | 4N | 4.3N | 4.6N | 1" / 25mm | - |
| 575-328 | - | 15mm | 400g | 4.9N | 5.3N | 5.7N | 2" / 50mm | - |
