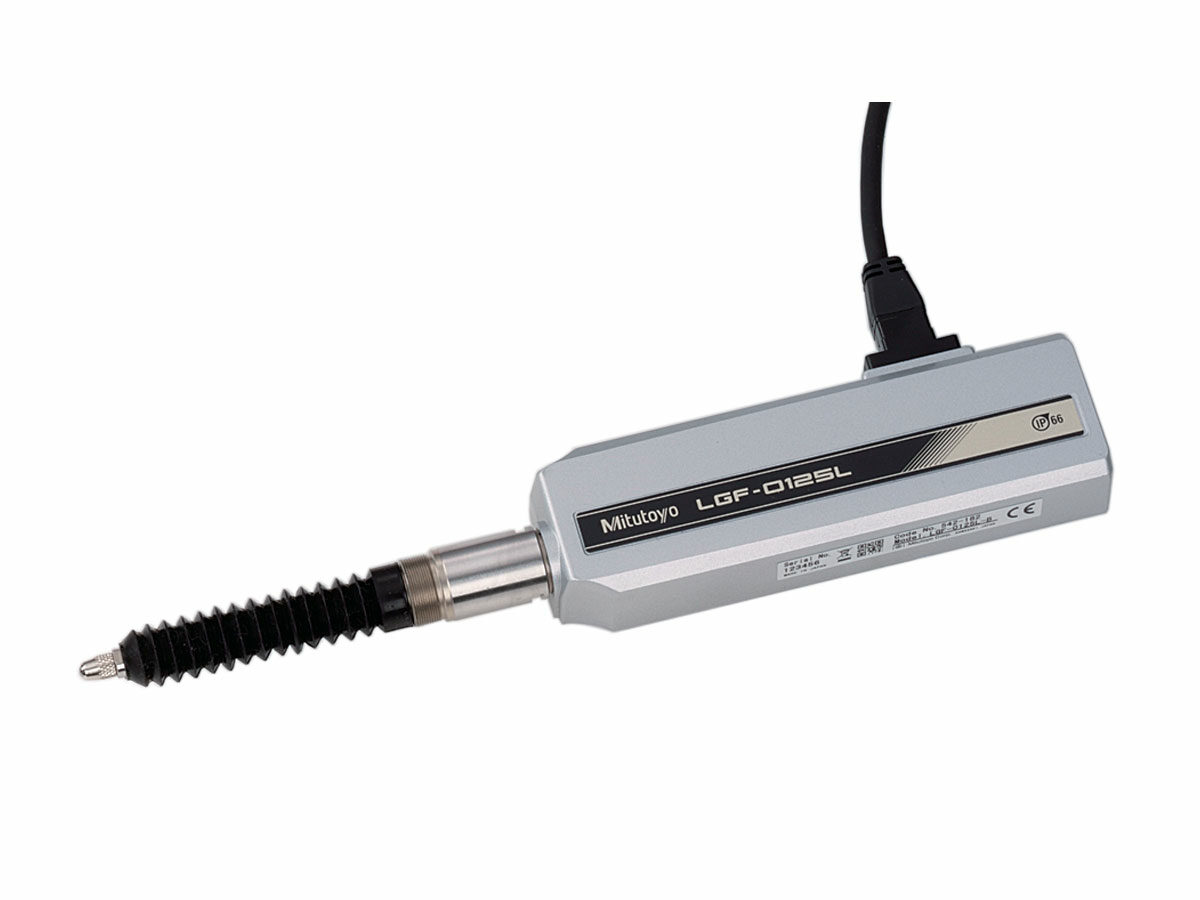

The LGF Linear Gage is a robust, high resolution displacement probe designed for a wide range of applications in harsh shop floor and automation environments.
Features & Benefits
With an IP66 rating for excellent resistance to coolant, oil and dust, the LGF gage is ideal for integration into automation applications and harsh environments. The advanced plunger guidance assembly construction of the LGF linear gage provides excellent vibration and shock resistance.
- Photoelectric encoder provides a high precision sensor across the entire measuring range, as well as, high resistance to electrical interference
- Linear ball bearing in spindle unit provides improved durability for at least 15 million cycles
- 0.1μm (5 μin) resolution
- Ranges: 10mm (.4”), 25mm (1”)
- Excellent shock resistance: 100g/11ms (IEC 60068-2-27)
- TTL output for ease of communication
Technical Data
| IP Rating: | IP66 |
|---|---|
| Accuracy: | ±(.8+L/50)µm |
| Operating Humidity Condition Range: | RH20 to 80% (no condensation) |
| Operating Temperature Range: | 0 to 40˚C |
| Storage Humidity Range: | RH 20 to 80% (no condensation) |
| Storage Temperature Range: | -10 to 60˚C |
| Bearing Type: | Linear ball bearing |
| Connecting Cable: | 2m |
| Connection: | Plug: RS12BPE-6PH, Compatible receptacle: RM12BRD-6S (Hirose) |
| Contact Point: | 901312 |
| Position Detection Method: | Photoelectric linear encoder |
| Shock Resistance: | 100G |
| Max Response Speed: | 400mm/s |
| Remarks: | 5µin resolution |
| Output: | TTL - 90˚ phase difference, differential square wave (RS-422A equivalent), minimum edge intervals: 200ns |
| Signal Output Pitch: | 0.4µm |
| Resolution: | 0.000005" / 5µin / 0.0001mm / 0.1µm |
Product List
| Order No.: | Product Image: | Mass: | Max Measuring Force Upward: | Max Measuring Force Horizontal: | Max Measuring Force Downward: | Measuring Range: | Stem Diameter: | Optional Accessories: |
|---|---|---|---|---|---|---|---|---|
| 542-181 | - | 310g | 1N | 1.1N | 1.2N | 0.4" / 10mm | 8mm | - |
| 542-182 | - | 350g | 4N | 4.3N | 4.6N | 1" / 25mm | 15mm | - |
