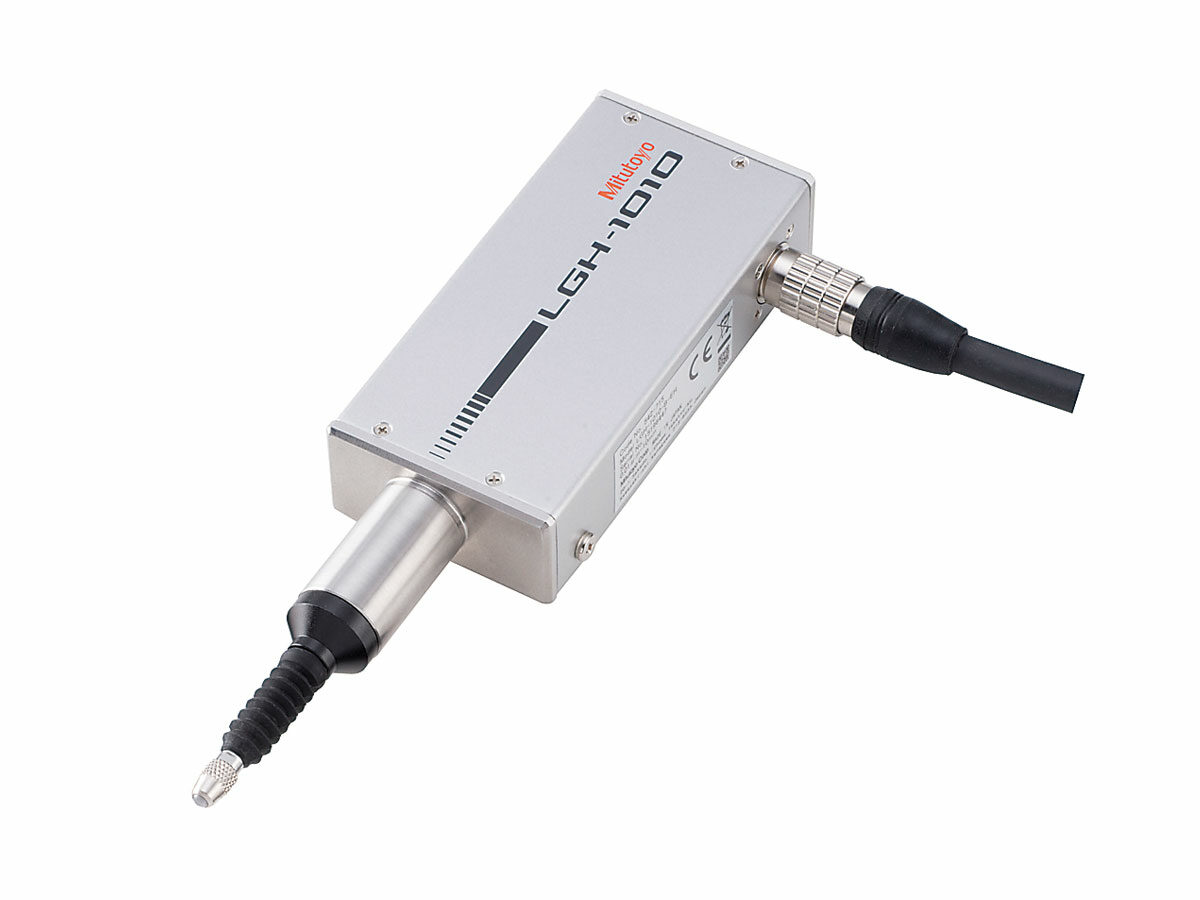

The Linear Gage LGH provides highly accurate and repeatable measurements in a compact design.
Features & Benefits
The LGH series linear gage offers extremely accurate, ultra-high-resolution photoelectric reflective linear encoder (0.01μm models) or ultra-high-resolution laser interference (0.005μm models) which provides superior performance over its entire measuring range of 10mm. This linear gage series is most suitable for measuring high precision components, implementation into calibration machines and integration into high accuracy positioning applications.
- Range: 10mm (.4”)
- Compact design reduces measuring costs and provides downsizing of the entire system configuration
- Low measuring force models are available (542-716A) for measuring easily deformed workpieces or thickness of delicate films
- Every LGH series gage is bundled with a dedicated counter
Technical Data
| Accuracy: | ±0.2µm |
|---|---|
| Operating Humidity Condition Range: | RH20 to 80% (no condensation) |
| Operating Temperature Range: | 0 to 40˚C |
| Storage Humidity Range: | RH 20 to 80% (no condensation) |
| Storage Temperature Range: | -10 to 60˚C |
| Bearing Type: | Linear ball bearing |
| Connecting Cable: | 2m |
| Contact Point: | 901312 |
| Stem Diameter: | 15mm |
| Mass: | 220g |
| Measuring Range: | 0.39" / 10mm |
| Position Detection Method: | Photoelectric reflective linear encoder |
| Provided with Inspection Certificate: | Yes |
| Max Response Speed: | 700mm/s |
| Repeatability: | 0.1µm |
| Resolution: | 0.000001" / 1µin / 0.00001mm / 0.01µm |
Product List
| Order No.: | Product Image: | Max Measuring Force Upward: | Max Measuring Force Horizontal: | Max Measuring Force Downward: | Retrace Error: | Remarks: | Optional Accessories: |
|---|---|---|---|---|---|---|---|
| 542-715A | - | 0.45N | 0.55N | 0.65N | - | - | - |
| 542-716A | - | - | - | 0.12N | 0.1µm | Low measuring force | - |
