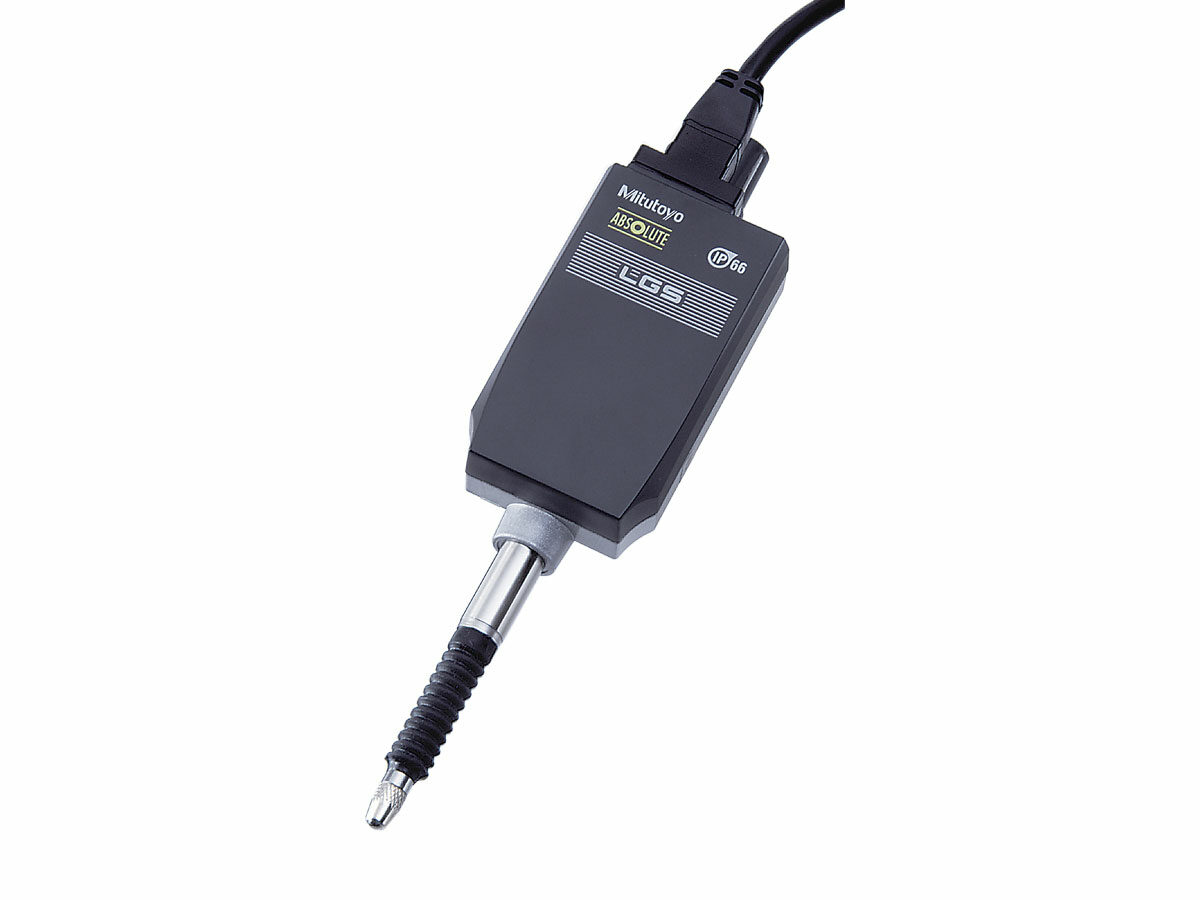

The Mitutoyo ABSOLUTE LGS Linear Gage offers the ability to maintain the reference point even when the power is switched off and with the IP-66 rating the gage is protected against dust and water.
Features & Benefits
The LGS series outputs data in a Digimatic format to a document and determines values connected to Digimatic data processing units and interfaces. The LGS gage is ideal for installation in automation applications, machines and the factory floor.
- ABSOLUTE electrostatic capacitance type encoder makes it possible to maintain the reference point even when the power is switched off
- Range: 10mm (.4”)
- Resolution: 10μm / .0005”
- IP66 rating provides protection against coolant, oil and dust resistance

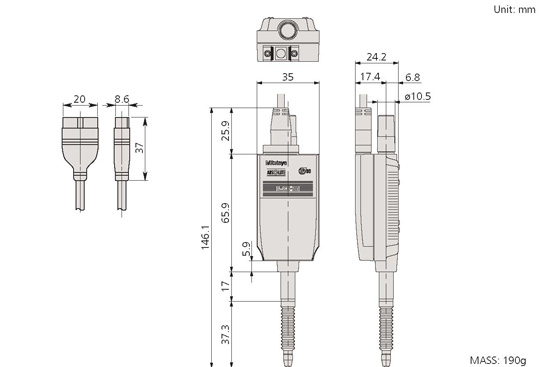

Technical Data
| IP Rating: | IP66 |
|---|---|
| Operating Humidity Condition Range: | RH20 to 80% (no condensation) |
| Operating Temperature Range: | 0 to 40˚C |
| Storage Humidity Range: | RH 20 to 80% (no condensation) |
| Storage Temperature Range: | -10 to 60˚C |
| Bearing Type: | Slide bearing |
| Connecting Cable: | 2m |
| Connection: | Standard 10 pin Digimatic connector |
| Mass: | 190g |
| Max Measuring Force Upward: | 1.6N |
| Max Measuring Force Horizontal: | 1.8N |
| Max Measuring Force Downward: | 2N |
| Position Detection Method: | Absolute electrostatic capacitance linear encoder |
| Max Response Speed: | Unlimited |
| Output: | Digimatic |
| Resolution: | 0.0005" / 0.01mm |
Product List
| Order No.: | Product Image: | Accuracy: | Contact Point: | Stem Diameter: | Measuring Range: | Remarks: | Optional Accessories: |
|---|---|---|---|---|---|---|---|
| 575-303 | - | - | 901312 | 8mm | 0.4" / 10mm | - | - |
| 575-313 | - | 0.0008" | 21BZB005 | 0.375" | 0.5" / 12.5mm | - | - |
| 575-314 | - | 0.0008" | 21BZB005 | 0.375" | 0.5" / 12.5mm | Reverse reading | - |
