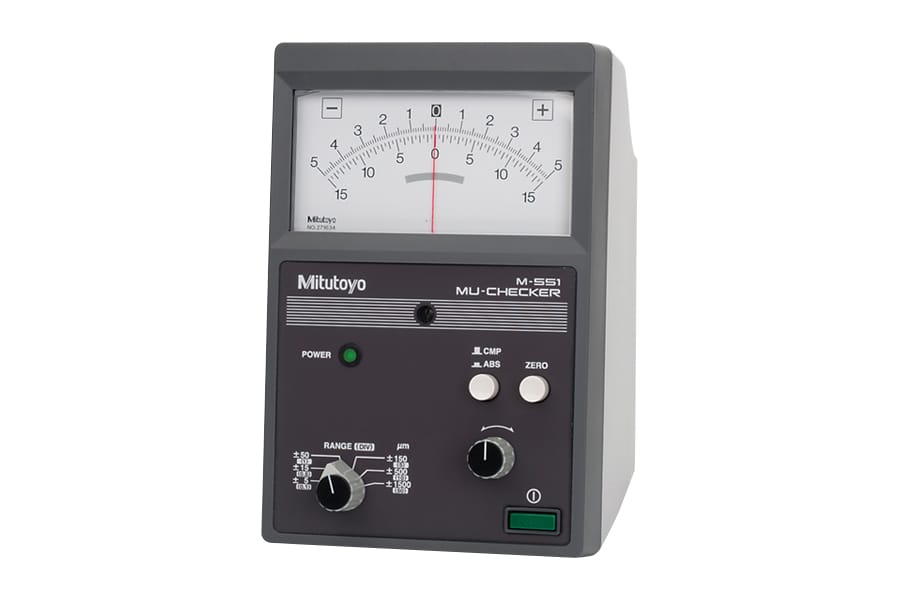

The switchable resolutions/ranges make the Mitutoyo Mu-Checker suitable for an array of applications. Both the analog and digital Mu-Checker models are ideal for step and sheet thickness measurements.
Features & Benefits
Connect up to six gages to a single EV Counter 519 series unit, extendable up to 10 units (60 gages max) to configure a multi-point measurement system. This allows for several different types of measurements in different areas of the workpiece to be collected simultaneously for placement and quality control.
- Compatible with series 519 MU-checker/LVDT probes
- Output: I/O output for tolerance judgment (Go/No-Go), segment output, BCD and RS-232C
- Normal measurement, peak measurement (max, min, TIR) or differential measurement between gages is possible
- External controls allow for zero-setting, presetting, changing modes, etc.
Technical Data
| Data Input: | Half Bridge LVDT |
|---|---|
| Dimensions: | 134x183x208mm |
| Number of Axes Displayed: | 1 |
Product List
| Order No.: | Product Image: | Data output: | Differential Mode: | Display: | Display Accuracy / Linearity: | Display range: | Indicating range: | Max Resolution: | Number of Gage Inputs: | Applicable gage: |
|---|---|---|---|---|---|---|---|---|---|---|
| 519-552A | - | Analog | ±A | Analog Meter Display | ±1% / ±full scale | - | ±0.00015 - 0.05" / ±5 - 1500µm | 0.001" / 50µm | 1 | 519 series probes |
| 519-554A | - | Analog | ±A, ±B, ±A±B | Analog Meter Display | ±1% / ±full scale | - | ±0.00015 - 0.05" / ±5 - 1500µm | 0.001" / 50µm | 2 | 519 series probes |
| 519-562A | - | Digimatic, Analog | ±A, ±B, ±A±B | - | - | ±0.008 to ±0.08" / ±0.2 to ±2mm | - | 0.00005" / 1µm | 2 | 519 series probes |
