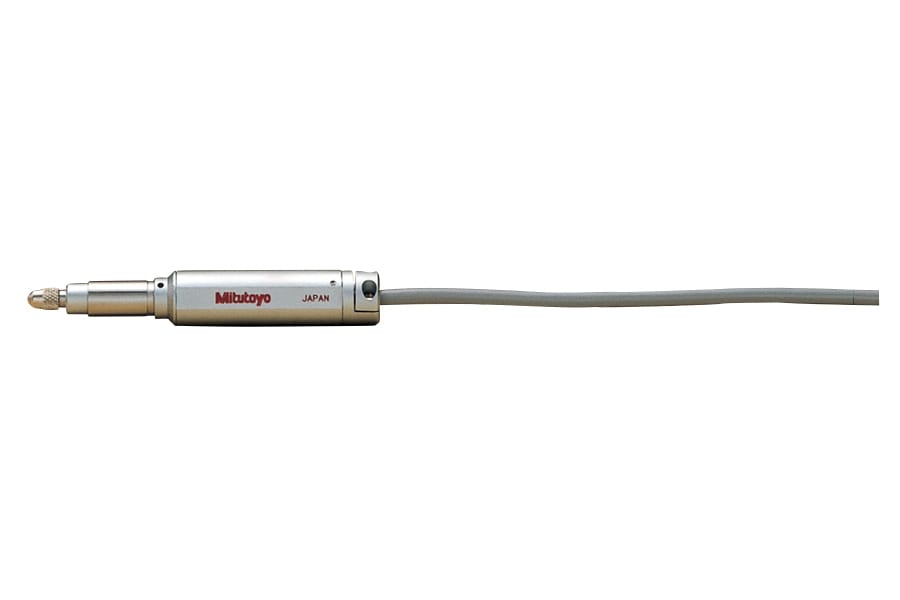

The Mitutoyo cartridge head Mu-Checker probes are available in two types – plain bearing and linear ball bearing
Features & Benefits
The Mitutoyo cartridge head Mu-checker probes provide plunger support in plain bearing or linear ball bearing.
- Available in two types of plunger support: Plain bearing and linear ball bearing
- Measuring range from ±0.25 mm, ±0.5 mm, ±1.0 mm, ±1.5 mm and ±2.5 mm
- Some models offer a M2 5×5 interchangeable point where a dial indicator can be used
Technical Data
| Connecting Cable: | 2m |
|---|---|
| Connection: | MAS-5100 (DIN5P) |
| Main Body Assembly: | Cartridge Head |
| Max Resolution: | 0.000005" / 0.1µm |
| Min Resolution: | 0.001" / 50µm |
| Position Detection Method: | Half-bridge LVDT |
| Output: | Half-bridge |
Product List
| Order No.: | Product Image: | Bearing Type: | Stem Diameter: | Linearity: | Measuring Force: | Measuring Range: | Stroke: | Stroke Range: | Remarks: | Optional Accessories: |
|---|---|---|---|---|---|---|---|---|---|---|
| 519-331 | - | Plain bearing | 8mm | 0.5 ± | 0.25N | ± 0.5mm | ±0.65mm | - | - | - |
| 519-332 | - | Plain bearing | 0.375" | 0.5 ± | 0.25N | ± 0.5mm | ±0.65mm | - | - | - |
| 519-341 | - | Linear ball bearing | 8mm | 0.5 ± | 0.9N | ± 2.5mm | - | -2.8 to 3.2mm | Air-driven | - |
| 519-346 | - | Linear ball bearing | 8mm | 0.3 ± | 0.7N | ± 0.25mm | - | -0.26 to 0.34mm | Extra small | - |
| 519-347 | - | Linear ball bearing | 8mm | 0.3 ± | 0.7N | ± 0.5mm | - | -0.65 to 0.85mm | Short body | - |
| 519-348 | - | Linear ball bearing | 8mm | 0.3 ± | 0.7N | ± 1mm | - | -1.15 to 1.35mm | - | - |
| 519-385 | - | Linear ball bearing | 8mm | 0.3 ± | 0.7N | ± 1.5mm | - | -1.65 to 2.35mm | - | - |
