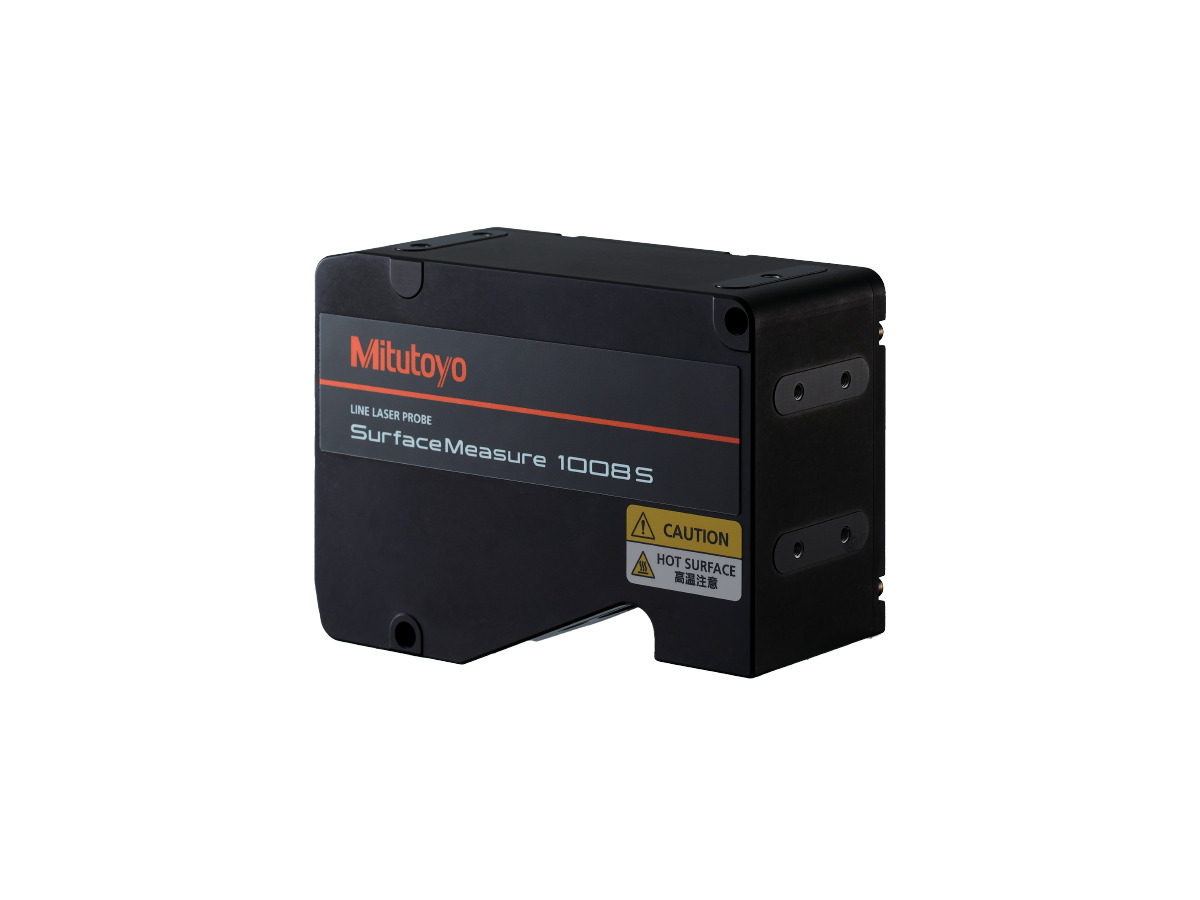

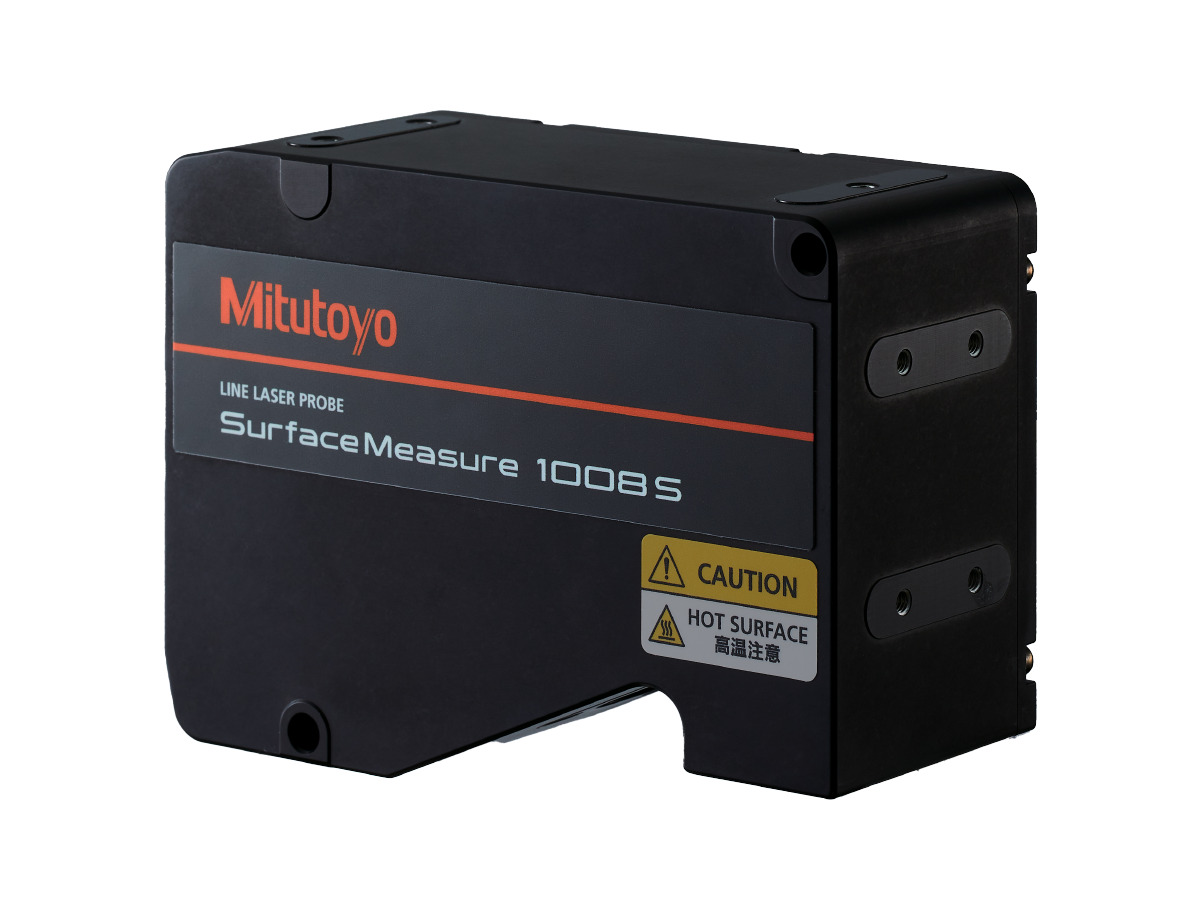

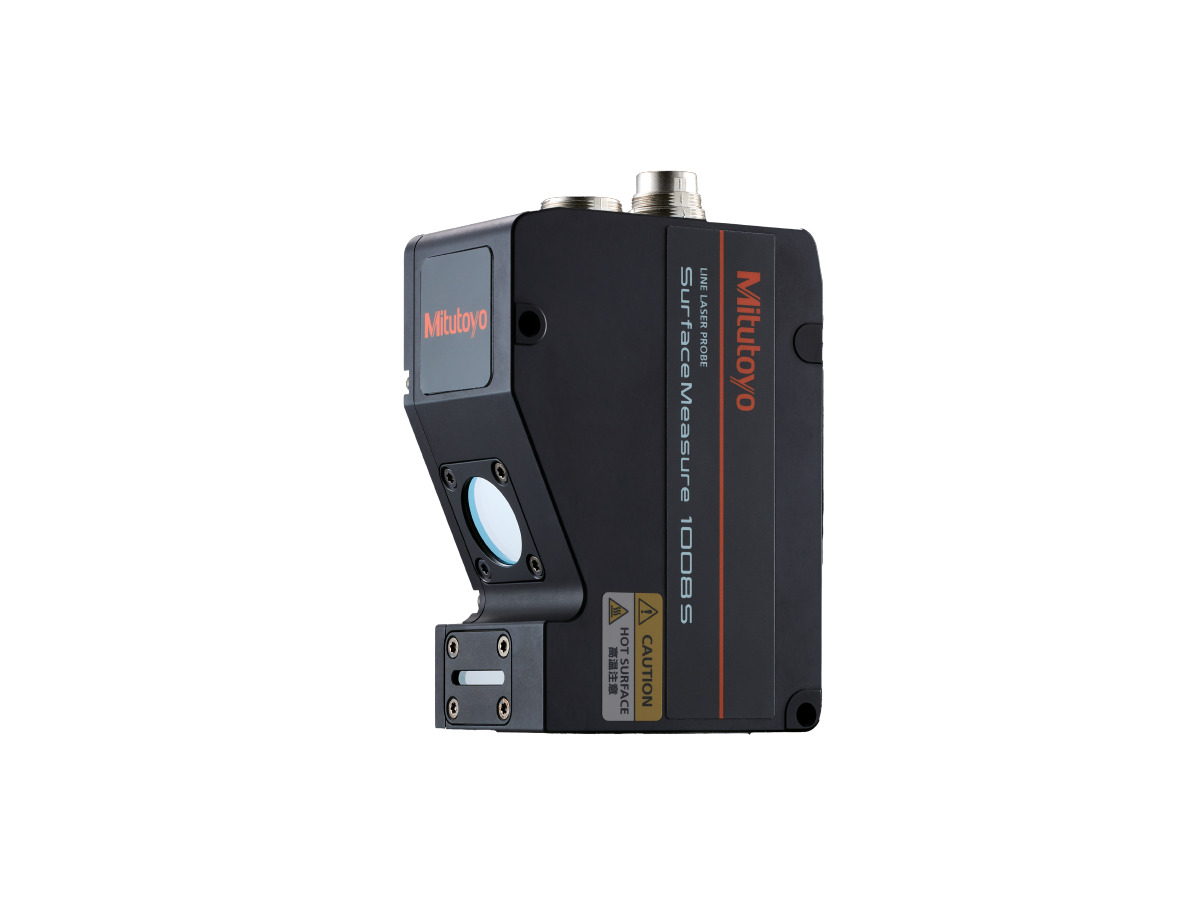

The Mitutoyo SM1008S is a high-accuracy, environment-resistant sensor designed for precise and efficient automated measurements. The sensor’s advanced capabilities include high-speed profiling and 3D shape measurement, with a maximum frame rate of 10 kHz, and an automatic judgement function that eliminates the need for alignment. Its built-in, user-friendly software allows for immediate use without installation, ensuring seamless operation right out of the box.
Features & Benefits
- High accuracy and environment-resistant sensor
- Supporting automated measurement
- Excellent operability simply by using a mouse
- Simple and intuitive interface
- Web-browser based, no need to install software
- Various built-in measurement
- 2D and 3D data can be obtained
*1 Accuracy inspection environment: Temperature 20°C ± 1°C, Humidity 50%RH ± 10%RH
Measurement workpieces: Specified reference ball for inspection (Φ30 mm)
Inspection method: Determined by Mitutoyo-specified inspection method.
The operating environment and the storage environment are different from the guaranteed accuracy environment.
*2 Measuring accuracy may deteriorate if any water droplet or dust particle adheres to the optical path.
Function
| Maximum measuring width: |
100 mm
|
| Measuring range: |
80 mm
|
| Working distance: |
80 mm
|
| Scanning error (1ơ)*¹: |
20 µm
|
| Frame rate: |
Max. 10kHz
|
| Laser Class EN/IEC: |
CLASS 2 (EN/IEC 60825-1:2014)
|
| Laser Class JIS: |
CLASS 2 (JIS C 6802:2014)
|
| Line Laser Medium: |
Semiconductor laser
|
| Line Laser Wavelength: |
405nm (visible)
|
| Line Laser Max. Power: |
2.2 mW
|
| Operating Environment Temperature: |
0°C to 40°C
|
| Operating Environment Humidity: |
RH 20% to 80%, non-condensing
|
| Storage Environment Temperature: |
-30°C to 70°C
|
| Storage Environment Humidity: |
RH 20% to 95%, non-condensing
|
| IP Protection Class: |
IP67*²
|
| Power supply: |
24V to 48VDC (15W)
|
| Mass: |
650g
|
