The Mitutoyo external measurement dial caliper gage is designed to be used as a comparison gage for inside diameter and linear measurements.
External Measurement Dial Caliper Gage
Features & Benefits
The Mitutoyo external dial caliper gage utilizes spring-loaded jaws to provide constant point contact pressure to take highly accurate comparison measurements of hole diameters and groove and tube thicknesses. The dial display provides precise, readable measurements in metric or inches.
- Available in Metric and Inch models
- Available in ranges up to 50mm/2”
- Available with different types of jaws for various application needs
- Indicator should be used in conjunction with a setting ring or micrometer
- White dial face for easier, precise measurement readings
- Crystal is glare-free with a scratch-resistant coating
- IP65 Rating resists dusts and liquid penetration up to the force of a low-pressure water jet
- Supplied in a fitted plastic case
Technical Data
| Technology: | Mechanical |
|---|---|
| IP Rating: | IP65 |
Product List
| Order No.: | Product Image: | Units: | Min Range: | Max Range: | Graduation: | Accuracy: | Max measuring depth: | Upper meas cont lgth: | Lower meas cont lgth: | Upper meas cont type: | Lower meas cont type: | Upper meas cont rad: | Lower meas cont rad: | Upper measuring diameter: | Lower measuring diameter: | Mass: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

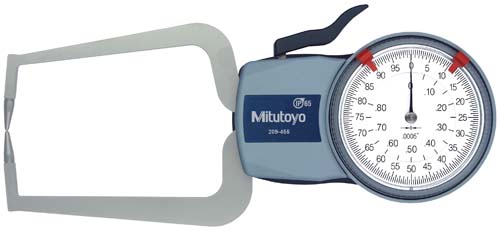

| 209-402 | - | Metric | 0mm | 10mm | 0.005mm | ±0.015mm | 35mm | 19.1mm | 18.6mm | Ball | Ball | - | - | 1.5mm | 1.5mm | 240g |
| 209-403 | - | Metric | 0mm | 10mm | 0.005mm | ±0.02mm | 35mm | 21.7mm | 14.8mm | Flat | Flat | - | - | 6mm | 6mm | 175g |

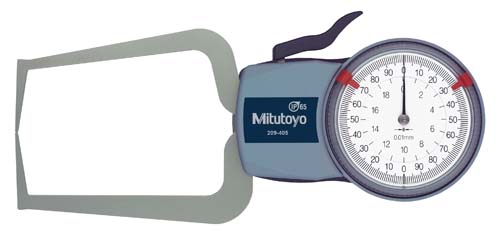

| 209-404 |  |
Metric | 0mm | 20mm | 0.01mm | ±0.03mm | 85mm | 7mm | 24.6mm | Ball | Ball | - | - | 1.5mm | 1.5mm | 210g |
| 209-405 |  |
Metric | 0mm | 20mm | 0.01mm | ±0.03mm | 85mm | 7mm | 24.6mm | Chisel | Chisel | 0.4mm | 0.4mm | - | - | 210g |
| 209-406 |  |

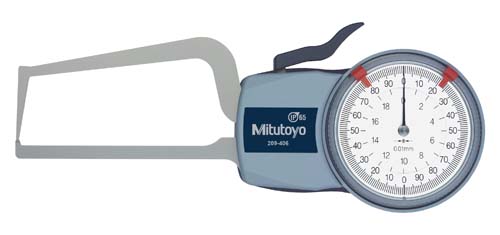

Metric | 0mm | 20mm | 0.01mm | ±0.03mm | 80mm | 7mm | 2.5mm | Chisel | Ball | 0.4mm | - | - | 1.5mm | 200g |
| 209-407 |  |

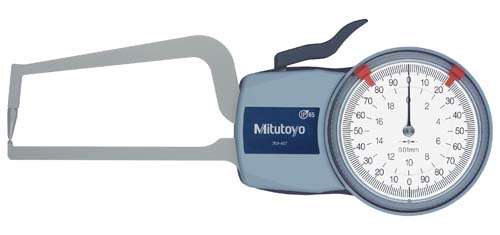

Metric | 0mm | 20mm | 0.01mm | ±0.03mm | 80mm | 7mm | 2.5mm | Ball | Ball | - | - | 1.5mm | 1.5mm | 200g |
| 209-450 |  |

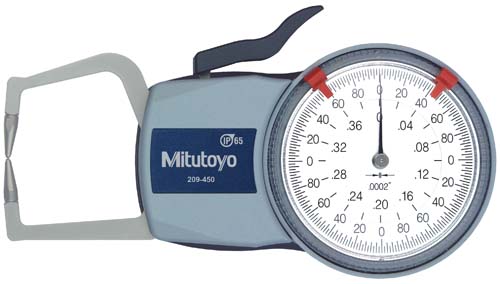

Inch | 0" | 40" | .0002" | ±.0008" | 1.37" | .75" | .75" | Ball | Ball | - | - | 1.5mm | 1.5mm | 170g |
| 209-451 |  |
Inch | 0" | 40" | .0002" | ±.001" | 1.37" | .85" | .58" | Flat | Flat | - | - | 6mm | 6mm | 175g |
| 209-452 | - | Inch | 0" | 40" | .0002" | ±.0008" | 1.37" | .75" | .035" | Ball | Ball | - | - | 1.5mm | 1.5mm | 165g |
| 209-453 | - | Inch | 0" | 40" | .0002" | ±.0008" | 1.37" | .75" | .035" | Chisel | Ball | 0.4mm | - | - | 1.5mm | 165g |
| 209-454 |  |
Inch | 0" | .80" | 0005"" | ±.0015" | 3.2" | .97" | .97" | Chisel | Chisel | 0.4mm | 0.4mm | - | - | 210g |
| 209-455 |  |
Inch | 0" | .80" | 0005"" | ±.0015" | 3.2" | .97" | .97" | Ball | Ball | - | - | 1.5mm | 1.5mm | 210g |
| 209-456 |  |
Inch | 0" | .80" | 0005"" | ±.0015" | 3.2" | .97" | .10" | Ball | Ball | - | - | 1.5mm | 1.5mm | 200g |
| 209-457 |  |

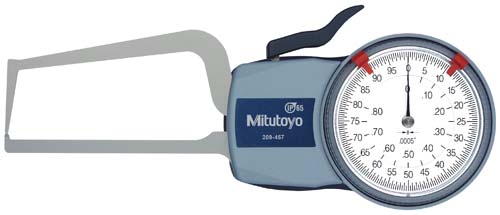

Inch | 0" | .80" | 0005"" | ±.0015" | 3.2" | .97" | .10" | Chisel | Ball | 0.4mm | - | - | 1.5mm | 200g |
| 209-603 | - | Metric | 0mm | 10mm | 0.1mm | ±0.1mm | 33mm | -mm | -mm | Ball | Ball | - | - | 2mm | 2mm | 40g |
| 209-789 | - | Inch | 0" | .50" | .005" | ±.005" | 1.38" | -" | -" | Ball | Chisel | - | 0.5mm | 2mm | - | 40g |
| 209-790 | - | Inch | 0" | .50" | .005" | ±.005" | 1.38" | -" | -" | Ball | Ball | - | - | 2mm | 2mm | 40g |
| 209-843 | - | Metric | 0mm | 10mm | 0.1mm | ±0.1mm | 36mm | -mm | -mm | Ball | Chisel | - | 0.5mm | 2mm | - | 40g |
| 209-911 | - | Metric | 0mm | 50mm | 0.05mm | ±0.05mm | 167mm | 30mm | 30mm | Ball | Ball | - | - | 3mm | 3mm | 430g |
| 209-912 |  |

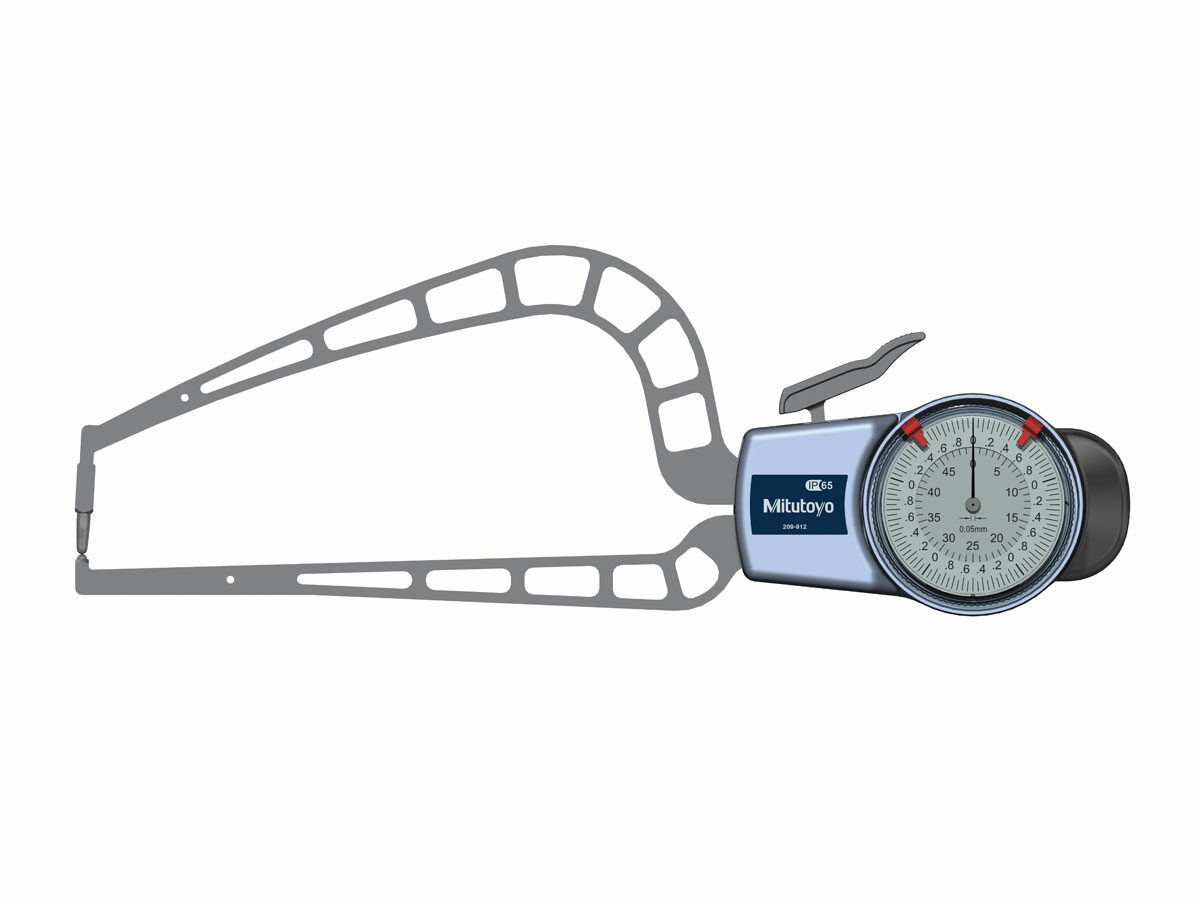

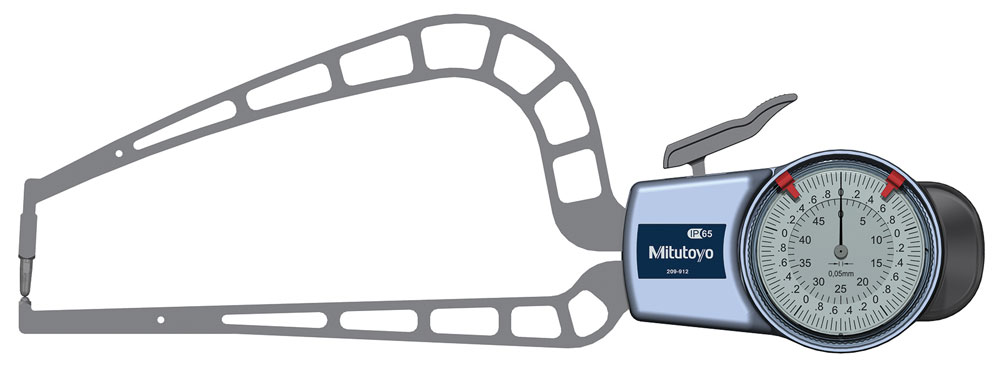

Metric | 0mm | 50mm | 0.05mm | ±0.05mm | 169mm | 30mm | 4.5mm | Ball | Ball | - | - | 3mm | 3mm | 400g |
| 209-916 | - | Inch | 0" | 2.0" | .001" | ±.002" | 6.6" | 1.2" | 1.2" | Ball | Ball | - | - | 3mm | 3mm | 430g |
| 209-917 | - | Inch | 0" | 2.0" | .001" | ±.002" | 6.6" | 1.2" | .18" | Ball | Ball | - | - | 3mm | 3mm | 400g |
| 209-921 |  |

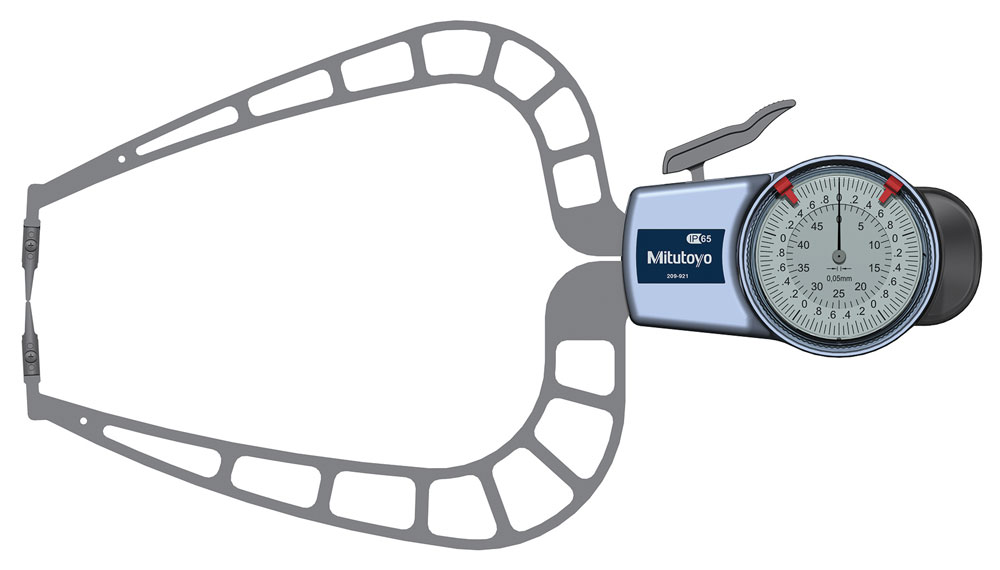

Metric | 0mm | 50mm | 0.05mm | ±0.05mm | 167mm | 30mm | 30mm | Chisel | Chisel | 0.75mm | 0.75mm | - | - | 400g |
| 209-922 | - | Metric | 0mm | 50mm | 0.05mm | ±0.05mm | 169mm | 30mm | 4.5mm | Chisel | Ball | 0.75mm | - | - | 3mm | 400g |
