The Mitutoyo internal measurement dial indicator is designed to be used as a comparison gage for inside diameter and linear measurements.
Internal Measurement Dial Caliper Gage
Features & Benefits
The Mitutoyo internal dial indicators utilize spring-loaded jaws to make constant point contact pressure to take highly accurate comparison measurements of hole diameters and groove and tube thicknesses. The dial display provides precise, readable measurements in metric or inches.
- Available in Metric and Inch models
- Available in ranges up to 120mm/7.2”
- Available with different types of jaws for various application needs
- Indicator should be used in conjunction with a setting ring or micrometer
- White dial face for easier, precise measurement readings
- Crystal is glare-free with a scratch-resistant coating
- IP65 Rating resists dusts and liquid penetration up to the force of a low-pressure water jet
- Supplied in a fitted plastic case
Technical Data
| Technology: | Mechanical |
|---|---|
| IP Rating: | IP65 |
Product List
| Order No.: | Product Image: | Units: | Min Range: | Max Range: | Graduation: | Accuracy: | Max measuring depth: | Max groove depth: | Min groove width: | Measuring contact type: | Measuring cont rad: | Measuring cont dia: | Mass: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

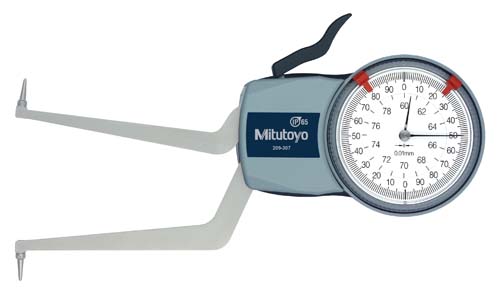

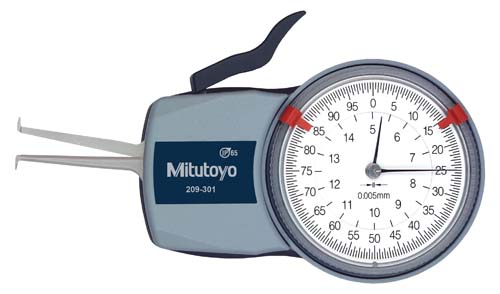

| 209-300 | - | Metric | 2.5mm | 12.5mm | 0.005mm | ±0.015mm | 12mm | 0.7mm | 0.5mm | Chisel | 0.1mm | - | 155g |
| 209-301 |  |
Metric | 5mm | 15mm | 0.005mm | ±0.015mm | 3.5mm | 2.3mm | 0.8mm | Ball | - | 1mm | 160g |

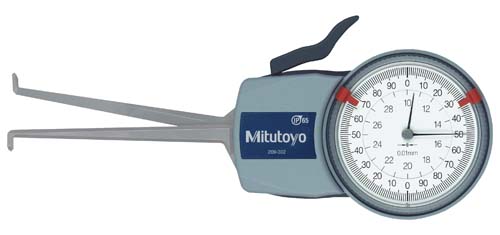

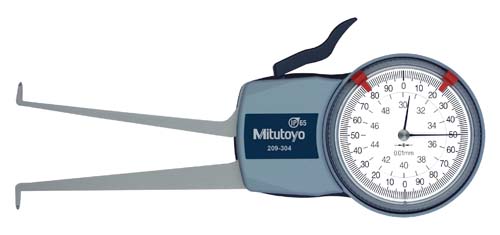

| 209-302 |  |
Metric | 10mm | 30mm | 0.01mm | ±0.03mm | 85mm | 5.2mm | 1.2mm | Ball | - | 1mm | 180g |
| 209-303 | - | Metric | 20mm | 40mm | 0.01mm | ±0.03mm | 85mm | 7mm | 1.2mm | Ball | - | 1mm | 180g |
| 209-304 |  |
Metric | 30mm | 50mm | 0.01mm | ±0.03mm | 85mm | 7mm | 1.2mm | Ball | - | 1mm | 185g |
| 209-305 |  |

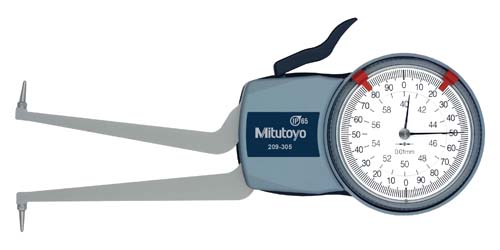

Metric | 40mm | 60mm | 0.01mm | ±0.03mm | 85mm | 8.3mm | 1.2mm | Ball | - | 1mm | 195g |
| 209-306 |  |

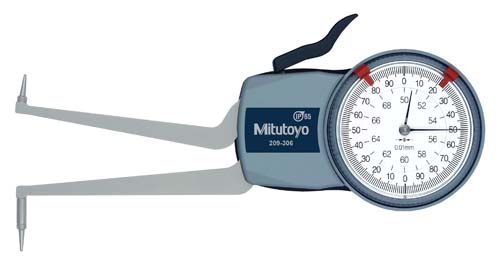

Metric | 50mm | 70mm | 0.01mm | ±0.03mm | 85mm | 8.3mm | 1.2mm | Ball | - | 1mm | 195g |
| 209-307 |  |
Metric | 60mm | 80mm | 0.01mm | ±0.03mm | 85mm | 8.3mm | 1.2mm | Ball | - | 1mm | 200g |
| 209-308 |  |

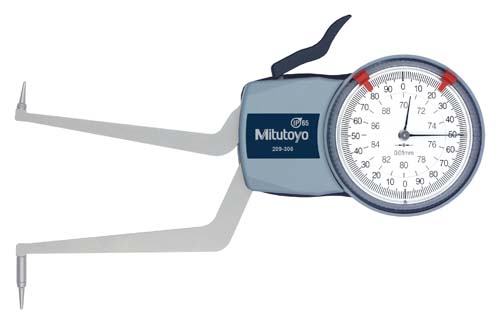

Metric | 70mm | 90mm | 0.01mm | ±0.03mm | 85mm | 8.3mm | 1.2mm | Ball | - | 1mm | 200g |
| 209-309 |  |

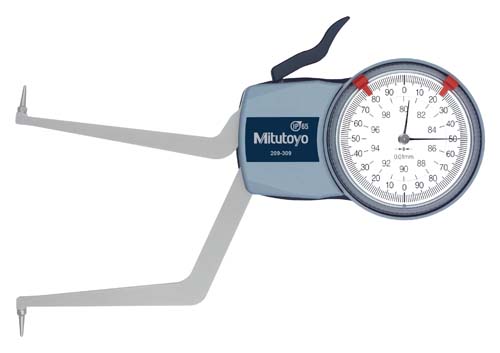

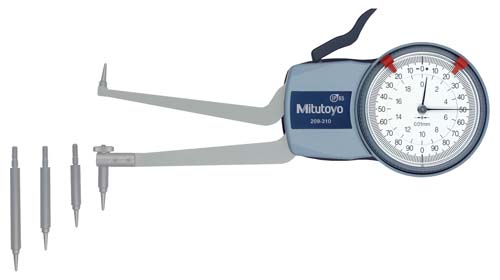

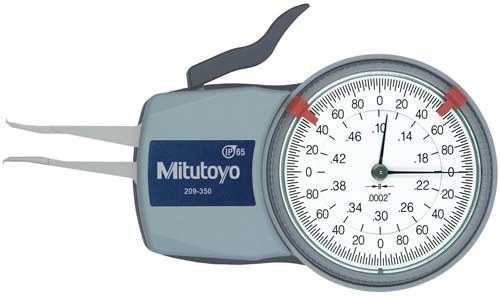

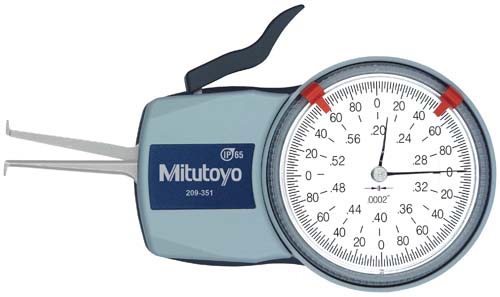

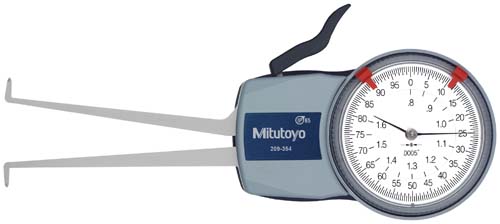

Metric | 80mm | 100mm | 0.01mm | ±0.03mm | 85mm | 8.3mm | 1.2mm | Ball | - | 1mm | 200g |
| 209-310 |  |
Metric | 50mm | 100mm | 0.01mm | ±0.03mm | 85mm | 8.3mm | 1.2mm | Ball | - | 1mm | 220g |
| 209-311 | - | Metric | 90mm | 140mm | 0.01mm | ±0.03mm | 85mm | 8.3mm | 1.2mm | Ball | - | 1mm | 230g |
| 209-312 | - | Metric | 130mm | 180mm | 0.01mm | ±0.03mm | 85mm | 8.3mm | 1.2mm | Ball | - | 1mm | 240g |
| 209-350 |  |
Inch | 0.10" | 0.50" | 0.0002" | ±0.0008" | 0.47" | 0.027" | 0.023" | Chisel | 0.1mm | - | 200g |
| 209-351 |  |
Inch | 0.20" | 0.60" | 0.0002" | ±0.0008" | 1.37" | 0.09" | 0.032" | Ball | - | 0.6mm | 200g |
| 209-352 |  |
Inch | 0.40" | 1.2" | 0.0005" | ±0.0015" | 3.3" | 0.19" | 0.06" | Ball | - | 1mm | 200g |
| 209-354 |  |
Inch | 0.80" | 1.6" | 0.0005" | ±0.0015" | 3.3" | 0.26" | 0.06" | Ball | - | 1mm | 200g |

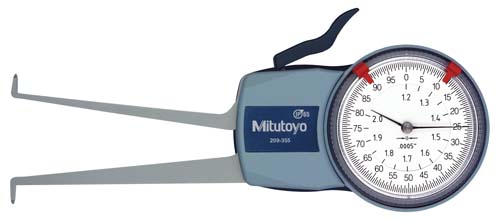

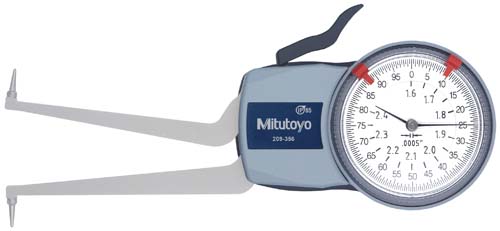

| 209-355 |  |
Inch | 1.2" | 2" | 0.0005" | ±0.0015" | 3.3" | 0.26" | 0.06" | Ball | - | 1mm | 200g |
| 209-356 |  |
Inch | 1.6" | 2.4" | 0.0005" | ±0.0015" | 3.3" | 0.31" | 0.06" | Ball | - | 1mm | 200g |
| 209-357 |  |

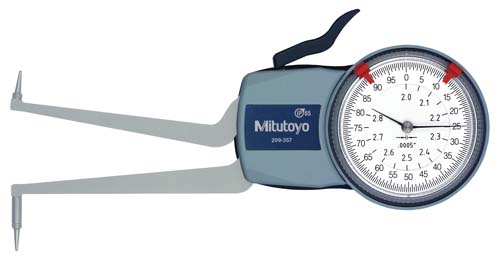

Inch | 0.2" | 2.8" | 0.0005" | ±0.0015" | 3.3" | 0.31" | 0.06" | Ball | - | 1mm | 200g |
| 209-358 | - | Inch | 2.4" | 3.2" | 0.0005" | ±0.0015" | 3.3" | 0.31" | 0.06" | Ball | - | 1mm | 250g |
| 209-359 |  |

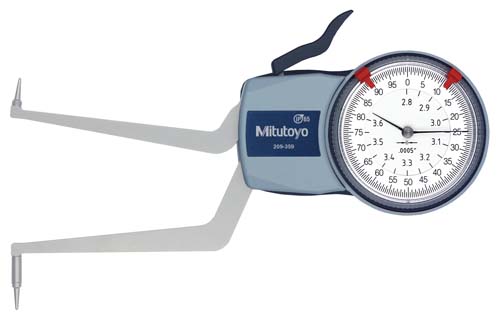

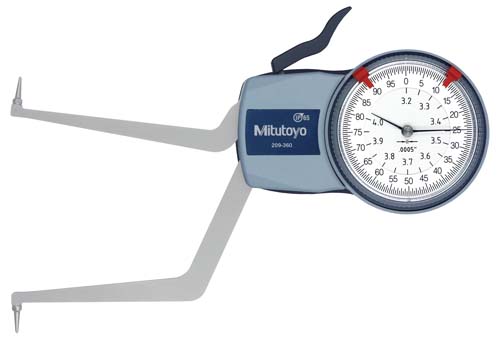

Inch | 2.8" | 3.6" | 0.0005" | ±0.0015" | 3.3" | 0.31" | 0.06" | Ball | - | 1mm | 250g |
| 209-360 |  |
Inch | 3.2" | 4" | 0.0005" | ±0.0015" | 3.3" | 0.31" | 0.06" | Ball | - | 1mm | 250g |
| 209-361 | - | Inch | 0.2" | 4" | 0.0005" | ±0.0015" | 3.3" | 0.31" | 0.06" | Interchangeable ball | - | 1mm | 250g |
| 209-362 |  |

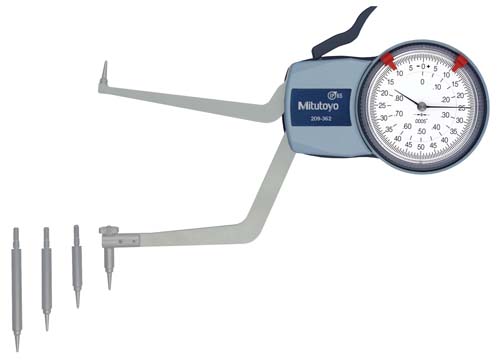

Inch | 3.6" | 5.6" | 0.0005" | ±0.0015" | 3.3" | 0.31" | 0.06" | Interchangeable ball | - | 1mm | 250g |
| 209-363 | - | Inch | 5.2" | 7.2" | 0.0005" | ±0.0015" | 3.3" | 0.31" | 0.06" | Interchangeable ball | - | 1mm | 250g |
| 209-901 | - | Metric | 15mm | 65mm | 0.05mm | ±0.05mm | 188mm | 5mm | 1.9mm | Interchangeable ball | - | 1.5mm | 355g |
| 209-902 | - | Metric | 40mm | 90mm | 0.05mm | ±0.05mm | 192mm | 8.5mm | 2.4mm | Interchangeable ball | - | 2mm | 370g |

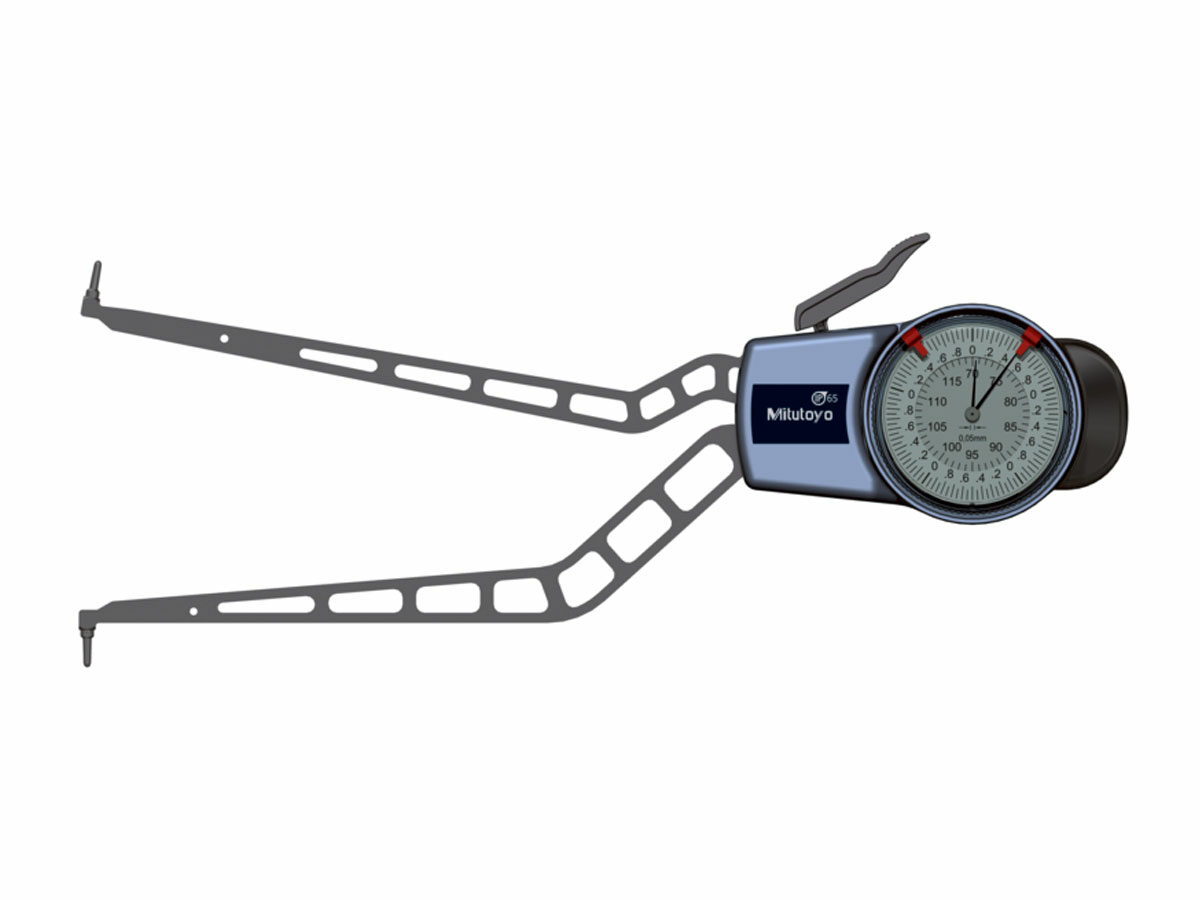

| 209-903 | - | Metric | 70mm | 120mm | 0.05mm | ±0.05mm | 192mm | 8.5mm | 2.4mm | Interchangeable ball | - | 2mm | 380g |
