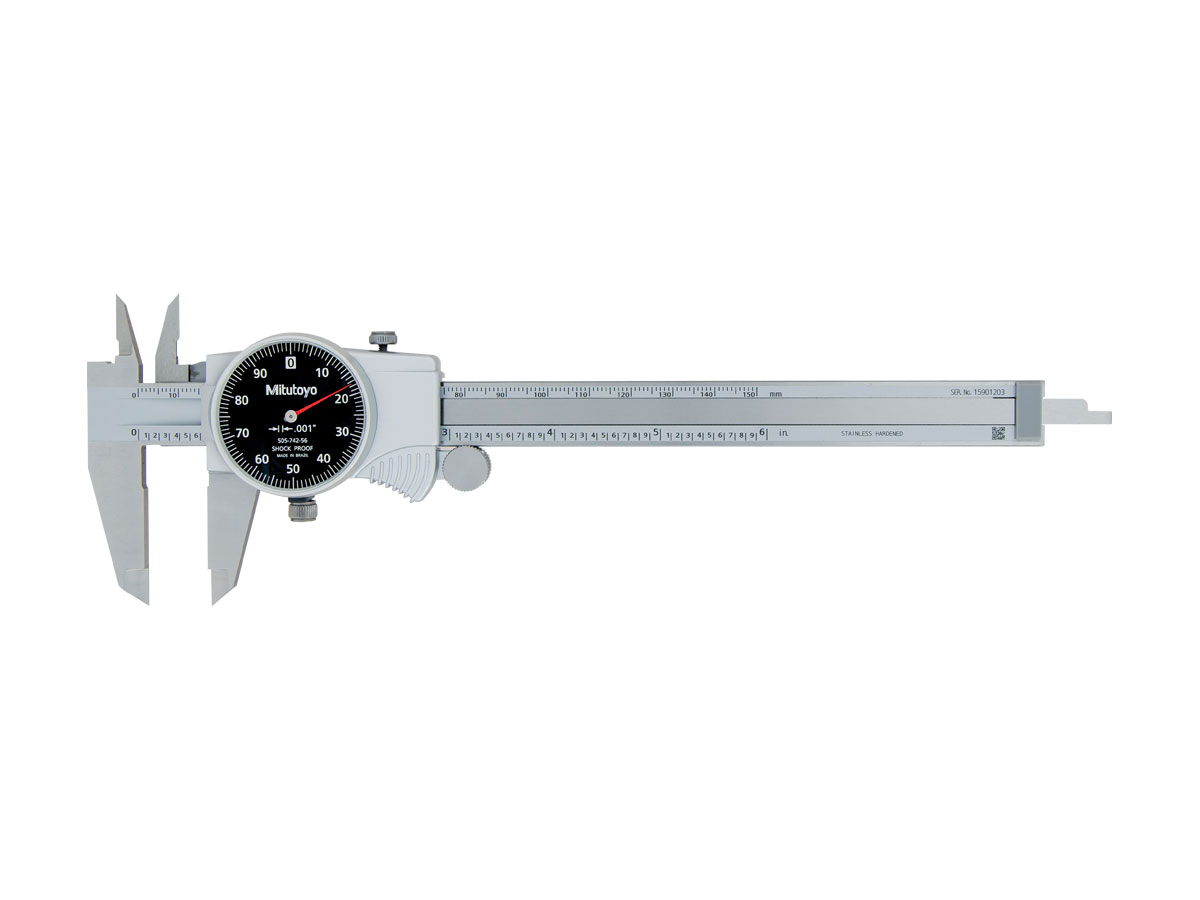

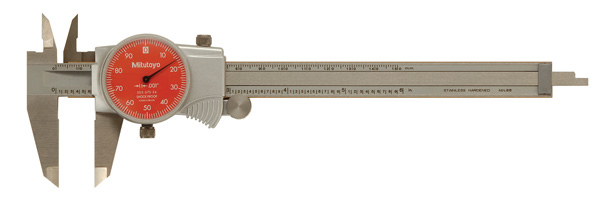

The Mitutoyo dial caliper is designed for smoother operation, better durability and readability while providing the same highly accurate four-way measurements to +/-0.03mm/.001”.

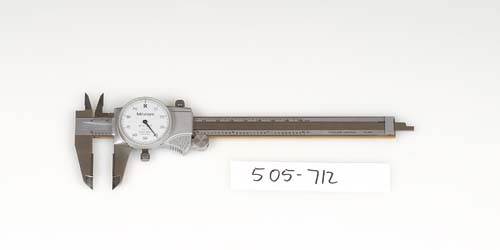

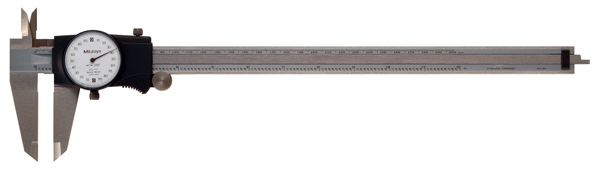

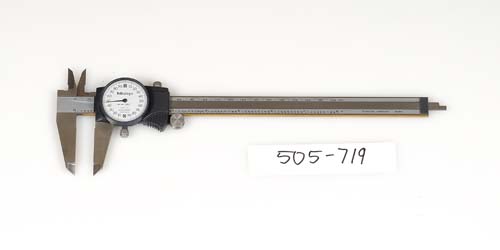

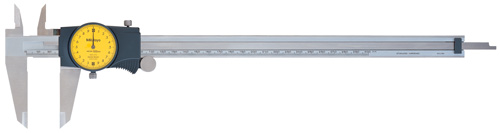

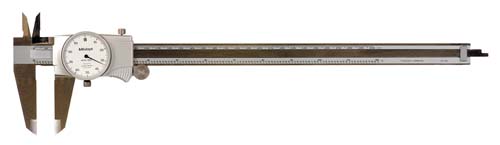

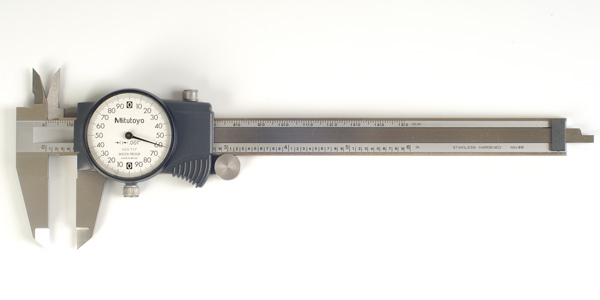

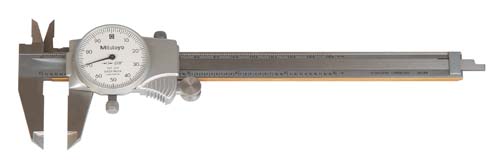

Series 505
Dial Caliper
Features & Benefits
The dial design of the Mitutoyo caliper provides ultra-smooth sliding with better shock protection while measuring outside dimensions, insider dimensions, depth and steps. The improved dial face offers faster measurement readability.
- Available in Metric and Inch models
- Available in 1mm / .100″ and 2mm / .200″ per revolutions
- Carbide-tipped outer dimension jaws are available
- Lock screw holds the dial measurement and sliding jaw position to obtain accurate measurement
- Supplied in a fitted plastic case
SERIES 505 Technical Data
| Technology: | Mechanical |
|---|
Product List
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Mass: | Graduation: | Pitch per revolution: | Remarks: |
|---|---|---|---|---|---|---|---|---|

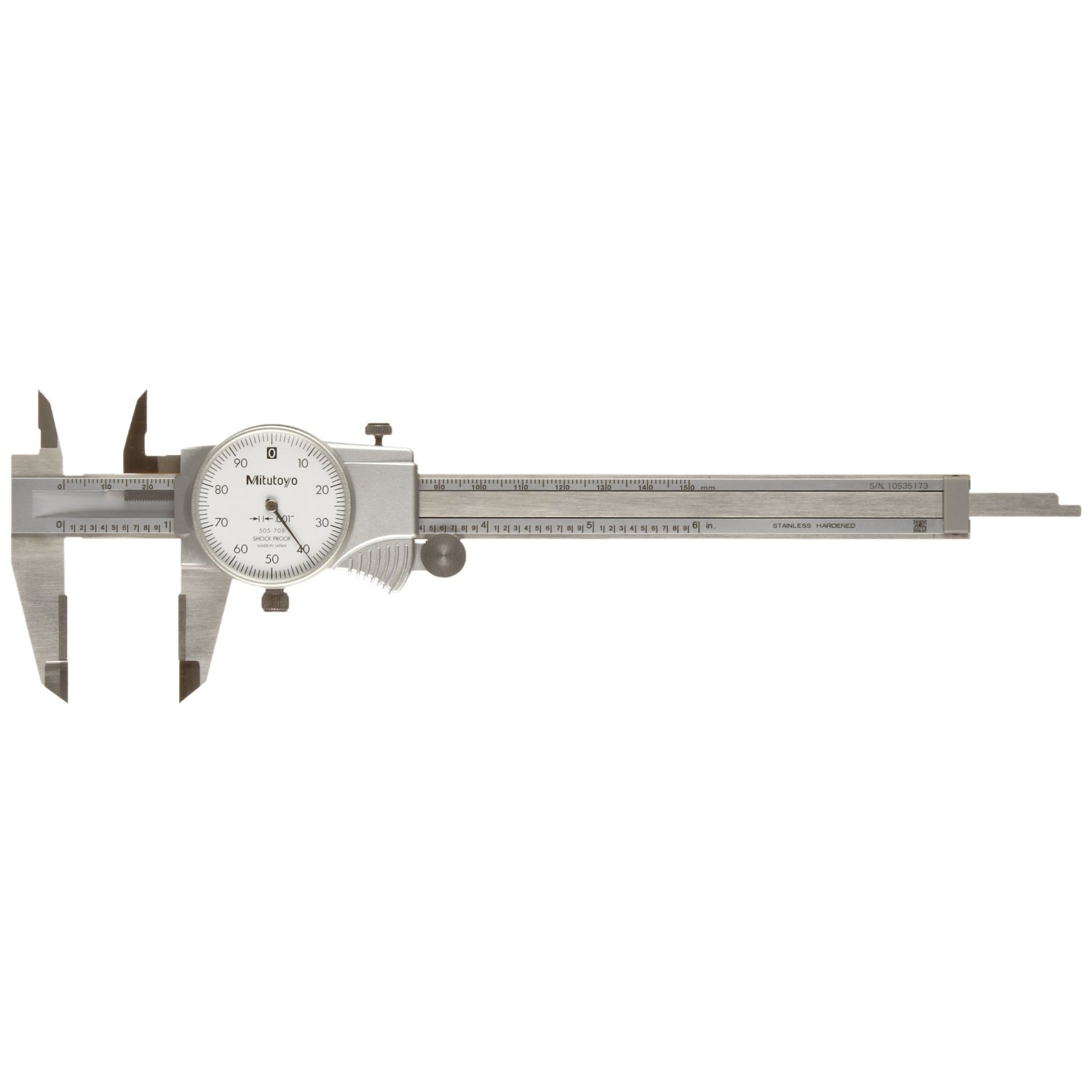

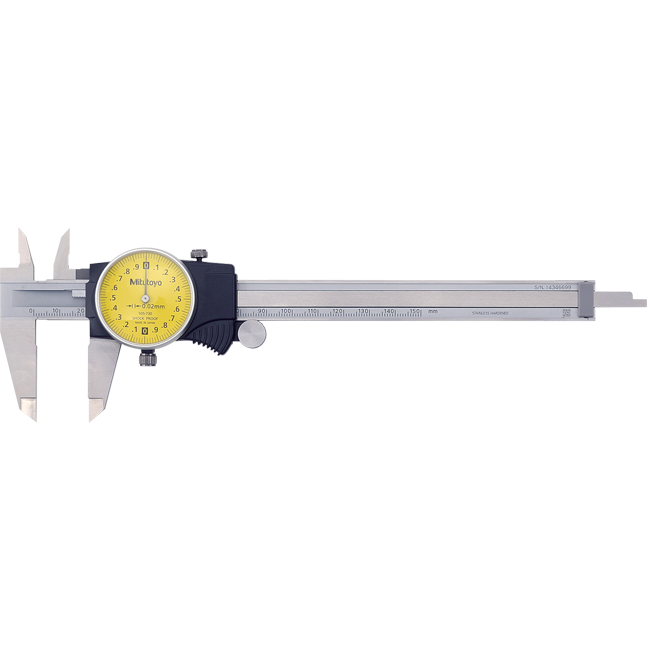

| 505-730 |  |

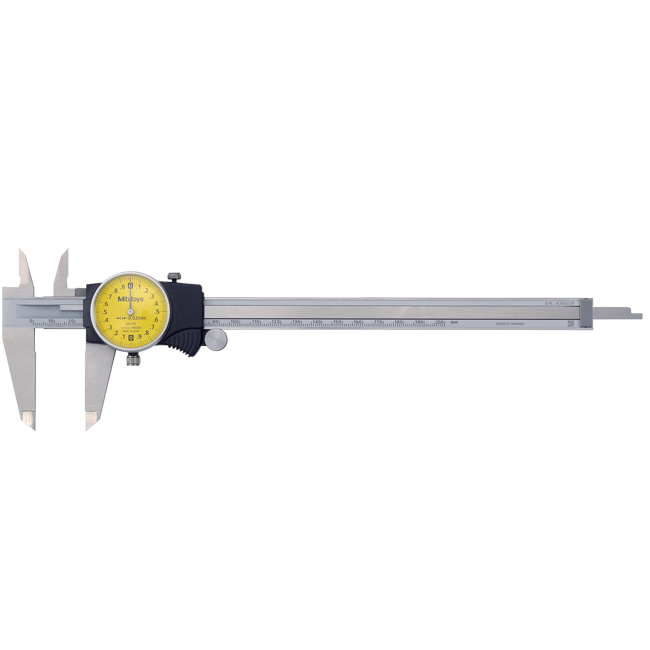

Metric | 0-150mm | ±0.03mm | 175g | 0.02mm | 2mm | - |
| 505-731 |  |
Metric | 0-200mm | ±0.03mm | 185g | 0.02mm | 2mm | - |
| 505-732 |  |
Metric | 0-150mm | ±0.02mm | 175g | 0.01mm | 1mm | - |
| 505-733 | - | Metric | 0-200mm | ±0.03mm | 185g | 0.01mm | 1mm | - |
| 505-734 | - | Metric | 0-150mm | ±0.03mm | 175g | 0.02mm | 2mm | Carbide-tipped jaws for OD measurement |
| 505-735 | - | Metric | 0-150mm | ±0.03mm | 175g | 0.02mm | 2mm | Carbide-tipped jaws for OD & ID measurement |
| 505-736 |  |
Inch | 0-6" | ±0.001" | 175g | 0.001" | 0.1" | Carbide-tipped jaws for OD measurement |
| 505-737 | - | Inch | 0-8" | ±0.002" | 185g | 0.001" | 0.1" | Carbide-tipped jaws for OD measurement |
| 505-738 |  |
Inch | 0-6" | ±0.001" | 175g | 0.001" | 0.1" | Carbide-tipped jaws for OD & ID measurement |
| 505-739 | - | Inch | 0-8" | ±0.002" | 185g | 0.001" | 0.1" | Carbide-tipped jaws for OD & ID measurement |
| 505-740 |  |
Inch | 0-6" | ±.001" | 175g | .001" | .2" | - |
| 505-741 |  |
Inch | 0-8" | ±.002" | 185g | .001" | .2" | - |
| 505-742 |  |
Inch | 0-6" | ±0.001" | 175g | 0.001" | 0.1" | - |
| 505-742-51 |  |
Inch | 0-6" | ±.001" | 175g | .001" | .1" | Blue dial face |
| 505-742-52 |  |

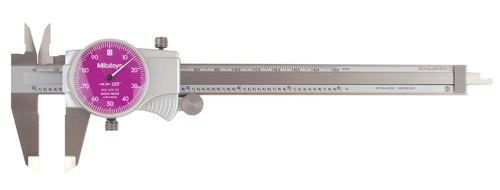

Inch | 0-6" | ±.001" | 175g | .001" | .1" | Purple dial face |
| 505-742-53 |  |

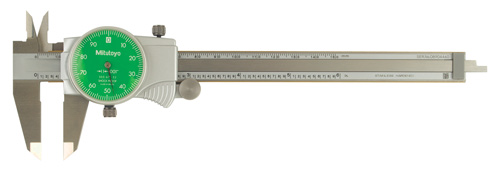

Inch | 0-6" | ±.001" | 175g | .001" | .1" | Green dial face |
| 505-742-54 |  |
Inch | 0-6" | ±.001" | 175g | .001" | .1" | Red dial face |
| 505-742-55 |  |

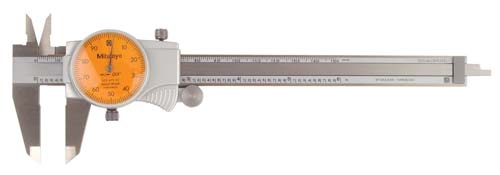

Inch | 0-6" | ±.001" | 175g | .001" | .1" | Orange dial face |
| 505-742-56 |  |

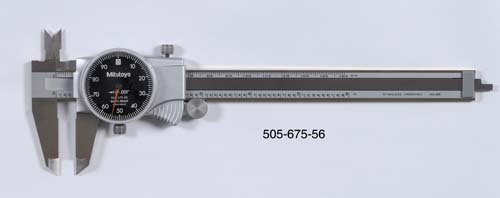

Inch | 0-6" | ±.001" | 175g | .001" | .1" | Black dial face |

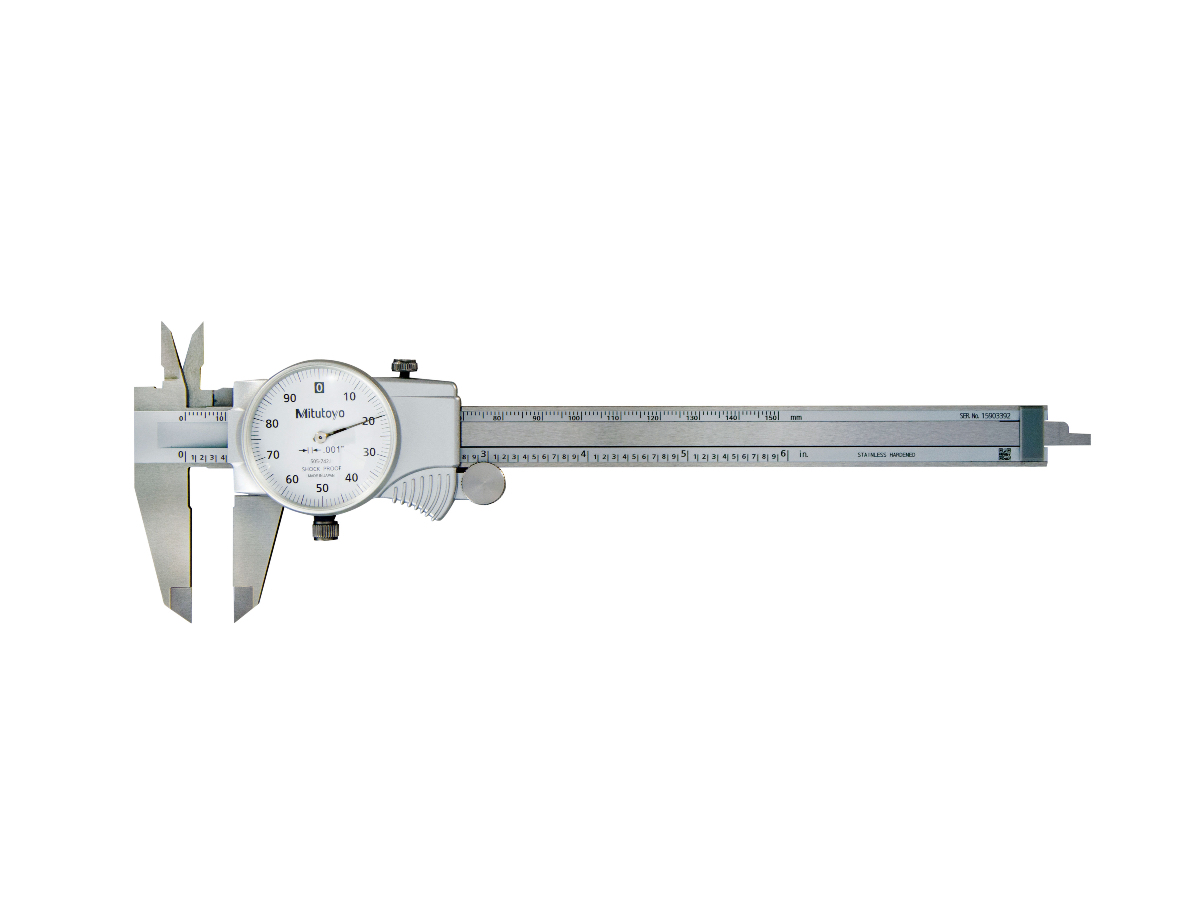

| 505-742J | - | Inch | 0-6" | ±0.001" | 175g | 0.001" | 0.1" | - |
| 505-743 |  |
Inch | 0-8" | ±.002" | 185g | .001" | .1" | - |
| 505-743J | - | Inch | 0-8" | ±0.002" | 185g | 0.001" | 0.1" | - |
| 505-744 | - | Inch | 0-6" | ±0.001" | 175g | 0.001" | 0.2" | Carbide-tipped jaws for OD measurement |
| 505-745 |  |
Metric | 0-300mm | ±0.04mm | 370g | 0.02mm | 2mm | - |
| 505-746 |  |
Inch | 0-12" | ±0.002" | 370g | 0.001" | 0.1" | - |
| 505-747 | - | Inch | 0-12" | ±0.002" | 370g | 0.001" | 0.1" | Carbide-tipped jaws for OD measurement |
| 505-748 | - | Inch | 0-12" | ±0.002" | 370g | 0.001" | 0.1" | Carbide-tipped jaws for OD & ID measurement |
| 505-749 |  |
Inch | 0-12" | ±0.002" | 370g | 0.001" | 0.2" | - |
| 505-750 | - | Inch | 0-12" | ±0.002" | 370g | 0.001" | 0.2" | Carbide-tipped jaws for OD measurement |
