The Mitutoyo ABSOLUTE Digimatic caliper is the next generation of electronic calipers. This caliper delivers highly accurate, four-way measurement capabilities with wide measurement ranges available (up to 1000mm/40”).
Features & Benefits
The Mitutoyo ABSOLUTE digital caliper delivers accurate, repeatable outside dimension, inside dimension, depth and step measurements with accuracy and unrestricted speed. The caliper’s slide and jaws are constructed of hardened stainless steel with optional carbide-tipped jaws available. The impact-resistant, easy-to-ready LCD display is highly durable and provides large character height (9.0mm in height) which improves readability.
- Available in Metric and Inch/Metric models
- Available with or without SPC output capabilities
- Carbide-tipped jaws are available
- Thumb roller included only on calipers up to and including 300mm/12” models
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
- Stainless steel construction protects caliper components and ensures accurate performance for longer duration
- SPC output function allows for quick and easy data management in real time
- Functions include Origin Set, Zero-Setting, Data Output and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, counting value composition error
- Supplied in a fitted plastic case; 1000mm/40” model is supplied in a wooden case
SERIES 500 Technical Data
| Technology: | Digimatic |
|---|---|
| Max Response Speed: | Unlimited |
| Display: | LCD |
| Battery: | SR44 (1 pc.) 938882 |
| Battery life: | Approx. 5 years under normal use |
| Length Standard: | ABSOLUTE electromagnetic induction type linear encoder |
| Optional Accessories: | 959143, 959149, 959150 |
Product List
| Order No.: | Product Image: | Units: | SPC Output: | Range: | Resolution: | Accuracy: | Repeatability: | Mass: | Remarks: |
|---|---|---|---|---|---|---|---|---|---|
| 500-150-30 |  |
Metric | Yes | 0-100mm | 0.01mm | ±0.02mm | 0.01mm | 143g | ø1.9mm rod depth bar |
| 500-151-30 |  |
Metric | Yes | 0-150mm | 0.01mm | ±0.02mm | 0.01mm | 168g | - |
| 500-152-30 |  |
Metric | Yes | 0-200mm | 0.01mm | ±0.02mm | 0.01mm | 198g | - |
| 500-153-30 |  |
Metric | Yes | 0-300mm | 0.01mm | ±0.03mm | 0.01mm | 350g | - |
| 500-154-30 |  |
Metric | Yes | 0-150mm | 0.01mm | ±0.02mm | 0.01mm | 168g | Carbide-tipped jaws for OD measurement |
| 500-155-30 |  |
Metric | Yes | 0-150mm | 0.01mm | ±0.02mm | 0.01mm | 168g | Carbide-tipped jaws for OD & ID measurement |
| 500-156-30 |  |
Metric | Yes | 0-200mm | 0.01mm | ±0.02mm | 0.01mm | 198g | Carbide-tipped jaws for OD measurement |
| 500-157-30 |  |
Metric | Yes | 0-200mm | 0.01mm | ±0.02mm | 0.01mm | 198g | Carbide-tipped jaws for OD & ID measurement |
| 500-158-30 |  |
Metric | Yes | 0-150mm | 0.01mm | ±0.02mm | 0.01mm | 168g | ø1.9mm rod depth bar |
| 500-159-30 |  |
Metric, Inch | No | 0-150mm / 0-6" | 0.01mm / 0.0005" | ±0.02mm / ±0.0010" | 0.01mm / 0.0005" | 168g | Carbide-tipped jaws for OD measurement |
| 500-160-30 |  |
Metric, Inch | No | 0-150mm / 0-6" | 0.01mm / 0.0005" | ±0.02mm / ±0.0010" | 0.01mm / 0.0005" | 168g | Carbide-tipped jaws for OD & ID measurement |
| 500-163-30 |  |
Metric, Inch | No | 0-200mm / 0-8" | 0.01mm / 0.0005" | ±0.02mm / ±0.0010" | 0.01mm / 0.0005" | 198g | Carbide-tipped jaws for OD measurement |
| 500-164-30 |  |
Metric, Inch | No | 0-200mm / 0-8" | 0.01mm / 0.0005" | ±0.02mm / ±0.0010" | 0.01mm / 0.0005" | 198g | Carbide-tipped jaws for OD & ID measurement |
| 500-165-30 |  |
Metric, Inch | No | 0-300mm / 0-12" | 0.01mm / 0.0005" | ±0.03mm / ±0.0015" | 0.01mm / 0.0005" | 350g | Carbide-tipped jaws for OD measurement |
| 500-166-30 | |
Metric, Inch | No | 0-300mm / 0-12" | 0.01mm / 0.0005" | ±0.03mm / ±0.0015" | 0.01mm / 0.0005" | 350g | Carbide-tipped jaws for OD & ID measurement |
| 500-167-30 |  |
Metric, Inch | Yes | 0-300mm / 0-12" | 0.01mm / 0.0005" | ±0.03mm / ±0.0015" | 0.01mm / 0.0005" | 350g | Carbide-tipped jaws for OD measurement |
| 500-168-30 |  |
Metric, Inch | Yes | 0-300mm / 0-12" | 0.01mm / 0.0005" | ±0.03mm / ±0.0015" | 0.01mm / 0.0005" | 350g | Carbide-tipped jaws for OD & ID measurement |
| 500-170-30 |  |
Metric, Inch | Yes | 0-100mm / 0-4" | 0.01mm / 0.0005" | ±0.02mm / ±0.0010" | 0.01mm / 0.0005" | 143g | .075" rod depth bar |
| 500-171-30 |  |
Metric, Inch | Yes | 0-150mm / 0-6" | 0.01mm / 0.0005" | ±0.02mm / ±0.0010" | 0.01mm / 0.0005" | 168g | - |
| 500-172-30 |  |
Metric, Inch | Yes | 0-200mm / 0-8" | 0.01mm / 0.0005" | ±0.02mm / ±0.0010" | 0.01mm / 0.0005" | 198g | - |
| 500-173-30 |  |
Metric, Inch | Yes | 0-300mm / 0-12" | 0.01mm / 0.0005" | ±0.03mm / ±0.0015" | 0.01mm / 0.0005" | 350g | - |
| 500-174-30 |  |
Metric, Inch | Yes | 0-150mm / 0-6" | 0.01mm / 0.0005" | ±0.02mm / ±0.0010" | 0.01mm / 0.0005" | 168g | Carbide-tipped jaws for OD measurement |
| 500-175-30 |  |
Metric, Inch | Yes | 0-150mm / 0-6" | 0.01mm / 0.0005" | ±0.02mm / ±0.0010" | 0.01mm / 0.0005" | 168g | Carbide-tipped jaws for OD & ID measurement |
| 500-176-30 |  |
Metric, Inch | Yes | 0-200mm / 0-8" | 0.01mm / 0.0005" | ±0.02mm / ±0.0010" | 0.01mm / 0.0005" | 198g | Carbide-tipped jaws for OD measurement |
| 500-177-30 |  |
Metric, Inch | Yes | 0-200mm / 0-8" | 0.01mm / 0.0005" | ±0.02mm / ±0.0010" | 0.01mm / 0.0005" | 198g | Carbide-tipped jaws for OD & ID measurement |
| 500-178-30 |  |
Metric, Inch | Yes | 0-150mm / 0-6" | 0.01mm / 0.0005" | ±0.02mm / ±0.0010" | 0.01mm / 0.0005" | 168g | .075" rod depth bar |
| 500-193-30 | |
Metric, Inch | No | 0-300mm / 0-12" | 0.01mm / 0.0005" | ±0.03mm / ±0.0015" | 0.01mm / 0.0005" | 350g | - |
| 500-195-30 |  |
Metric, Inch | No | 0-100mm / 0-4" | 0.01mm / 0.0005" | ±0.02mm / ±0.0010" | 0.01mm / 0.0005" | 143g | .075" rod depth bar |

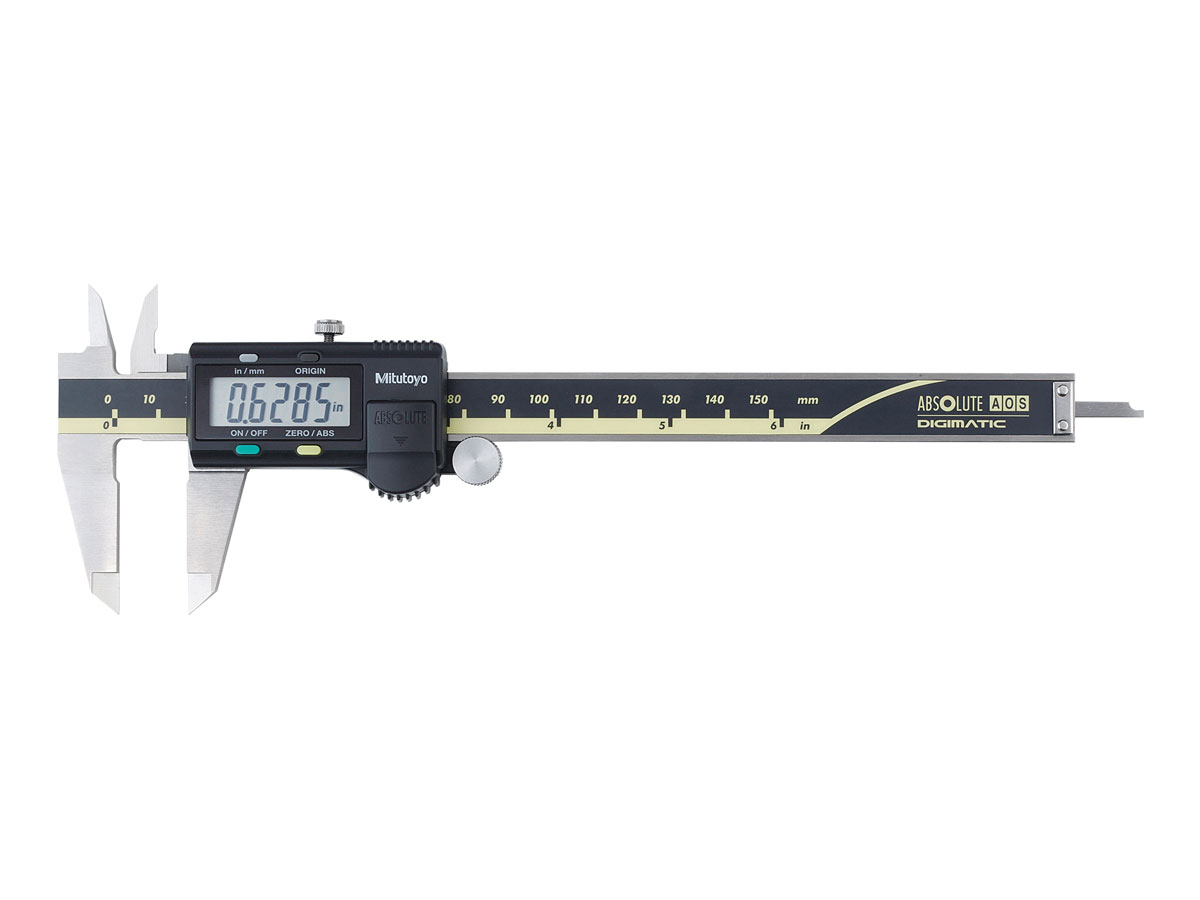

| 500-196-30 |  |
Metric, Inch | No | 0-150mm / 0-6" | 0.01mm / 0.0005" | ±0.02mm / ±0.0010" | 0.01mm / 0.0005" | 168g | - |
| 500-197-30 |  |
Metric, Inch | No | 0-200mm / 0-8" | 0.01mm / 0.0005" | ±0.02mm / ±0.0010" | 0.01mm / 0.0005" | 198g | - |
| 500-500-10 |  |
Metric | Yes | 0-450mm | 0.01mm | ±0.05mm | 0.01mm | 1170g | Without thumb roller |
| 500-501-10 |  |
Metric | Yes | 0-600mm | 0.01mm | ±0.05mm | 0.01mm | 1350g | Without thumb roller |
| 500-502-10 |  |
Metric | Yes | 0-1000mm | 0.01mm | ±0.07mm | 0.01mm | 3300g | Without thumb roller |
| 500-505-10 |  |
Metric, Inch | Yes | 0-450mm / 0-18" | 0.01mm / 0.0005" | ±0.05mm / ±0.0020" | 0.01mm / 0.0005" | 1170g | Without thumb roller |
| 500-506-10 |  |
Metric, Inch | Yes | 0-600mm / 0-24" | 0.01mm / 0.0005" | ±0.05mm / ±0.0020" | 0.01mm / 0.0005" | 1350g | Without thumb roller |
| 500-507-10 |  |
Metric, Inch | Yes | 0-1000mm / 0-40" | 0.01mm / 0.0005" | ±0.07mm / ±0.0030" | 0.01mm / 0.0005" | 3300g | Without thumb roller |
