The Mitutoyo Vernier caliper with long-style nib jaws takes highly accurate inside and outside dimensions in hard-to-reach areas of a workpiece.
Features & Benefits
The Mitutoyo Vernier scale caliper features long nib-style jaws made of hardened stainless steel to take precise inner and outer dimensions in recesses and other hard measurements to reach. The nib jaws have rounded measuring surfaces for more accurate measurements on non-flat surfaces found in pieces such as bearings. The Vernier caliper’s 14-degree face angle makes reading the scale easier and helps prevent parallax error in measurement reading. The scales are raised to slide easily and protect the graduation markings. The Vernier caliper with thumb clamp is made of hardened stainless steel that is corrosion resistant, and a satin chrome finish reduces glare.
- Available in Metric and Metric/Inch models
- A fine adjustment carriage is available on models except for 534-109 and 534-110
- Raised sliding surfaces prevent defacement and wear of scale graduations
- The caliper is made of corrosion-resistant, hardened stainless steel
- Lock screw holds the sliding jaw position for accurate measurement taking
- The caliper meets Federal Accuracy Specifications GGG-C-111B
- Most models supplied with a vinyl holster in a fitted carton

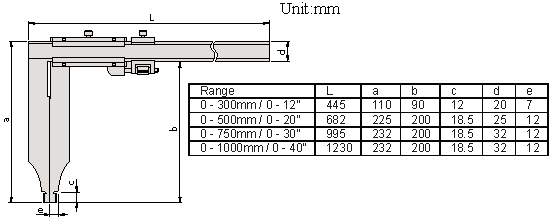

SERIES 534 Technical Data
| Technology: | Mechanical |
|---|
Product List
| Order No.: | Product Image: | Units: | Range: | Minimum dimension in ID measurement: | Accuracy: | Mass: | Graduation Lower Scale: | Graduation Upper Scale: |
|---|---|---|---|---|---|---|---|---|
| 534-101 | - | Metric, Inch | 0-300mm / 0-12" | 10.1mm | ±0.07mm | 460g | 0.05mm | 1/128" |

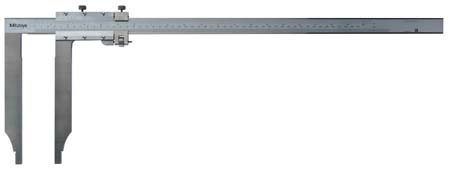

| 534-102 |  |
Metric, Inch | 0-500mm / 0-20" | 20.1mm | ±0.13mm | 1500g | 0.05mm | 1/128" |
| 534-103 | - | Metric, Inch | 0-700mm / 0-30" | 20.1mm | ±0.16mm | 2900g | 0.05mm | 1/128" |
| 534-104 | - | Metric, Inch | 0-1000mm / 0-40" | 20.1mm | ±0.20mm | 3500g | 0.05mm | 1/128" |
| 534-105 | - | Metric, Inch | 0-300mm / 0-12" | 10.1mm | ±0.04mm | 460g | 0.02mm | .001" |
| 534-106 | - | Metric, Inch | 0-500mm / 0-20" | 20.1mm | ±0.06mm | 1500g | 0.02mm | .001" |
| 534-107 | - | Metric, Inch | 0-700mm / 0-30" | 20.1mm | ±0.08mm | 2900g | 0.02mm | .001" |

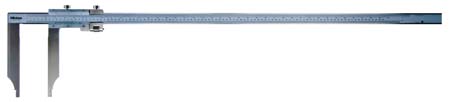

| 534-108 |  |
Metric, Inch | 0-1000mm / 0-40" | 20.1mm | ±0.10mm | 3500g | 0.02mm | .001" |
| 534-109 | - | Metric | 0-300mm | 10.1mm | ±0.07mm | 400g | 0.005mm | 0.05mm |
| 534-110 |  |
Metric | 0-500mm | 20.1mm | ±0.13mm | 1400g | 0.005mm | 0.05mm |
| 534-113 | - | Metric | 0-300mm | 10.1mm | ±0.04mm | 460g | 0.02mm | 0.02mm |
| 534-114 |  |
Metric | 0-500mm | 20.1mm | ±0.06mm | 1500g | 0.02mm | 0.02mm |
| 534-115 | - | Metric | 0-750mm | 20.1mm | ±0.08mm | 2900g | 0.02mm | 0.02mm |
| 534-116 | - | Metric | 0-1000mm | 20.1mm | ±0.10mm | 3500g | 0.02mm | 0.02mm |

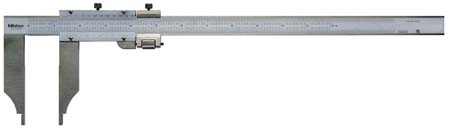

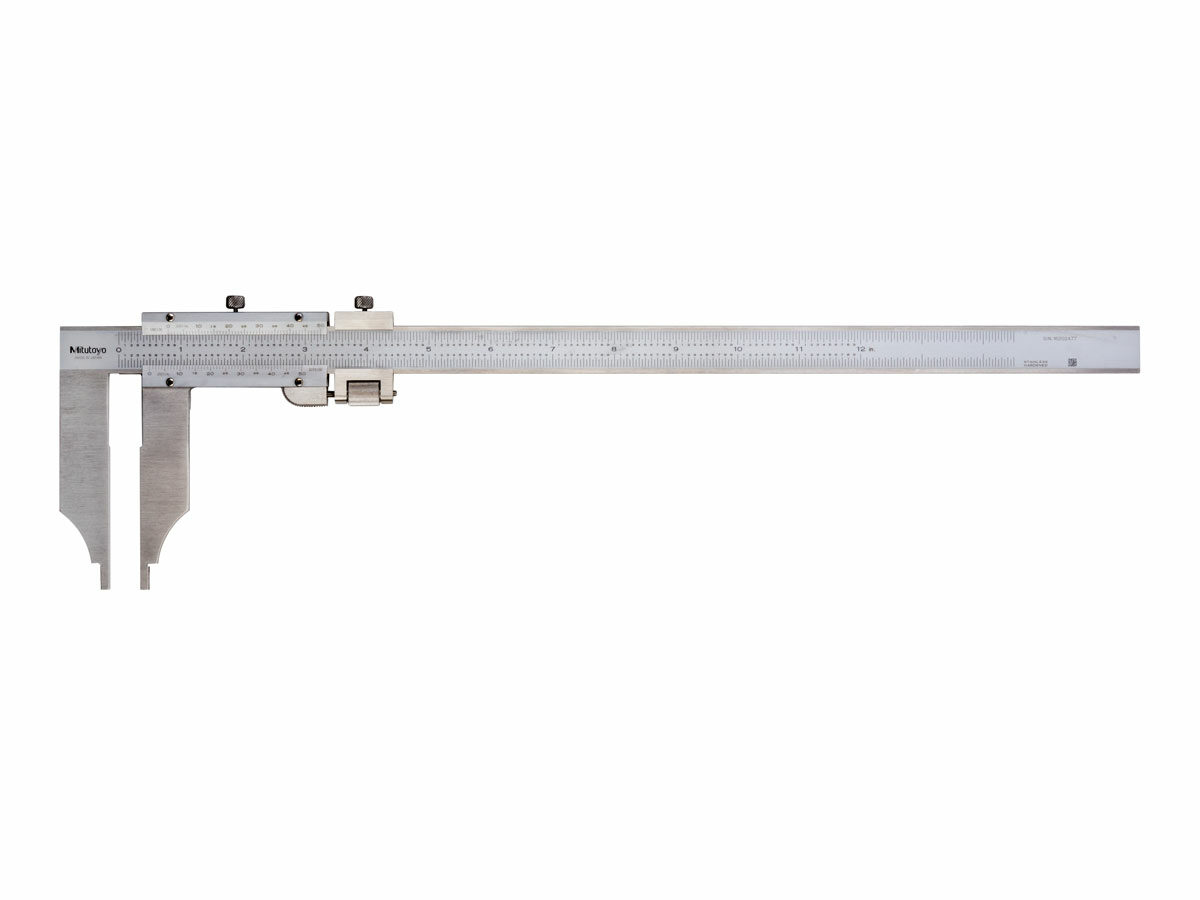

| 534-117 |  |
Inch | 0-10" | 0.304" | ±0.002" | 400g | 0.001" | .001" |
| 534-118 | - | Inch | 0-20" | 0.804" | ±0.003" | 1500g | 0.001" | .001" |

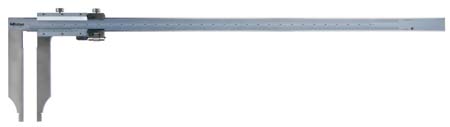

| 534-119 |  |
Inch | 0-30" | 0.804" | ±0.004" | 2900g | 0.001" | .001" |

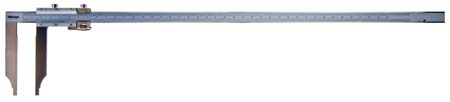

| 534-120 |  |
Inch | 0-40" | 0.804" | ±0.004" | 3500g | 0.001" | .001" |
