The Mitutoyo ABSOLUTE Digimatic depth gage provides highly accurate depth measurements for any shape that has a step, groove or slot.
Features & Benefits
The Mitutoyo ABSOLUTE Digimatic depth gage features hardened, micro-lapped measuring faces and a base for improved accuracy and wear resistance. The depth gage is constructed of hardened stainless steel and is IP67 rated for exceptional coolant-proof capabilities, making it ideal for use on the shop floor. Measurements are displayed on a digital LCD readout with SPC output for easy, automatic recording.
- Available in Metric and Inch/Metric models
- Optional wider extension bases are available (up to 450mm range models)
- Convenient mounting holes included on the base for repeatable accuracy
- Keeps track of the origin point for the life of the battery
- SPC output function with optional water-resistant SPC cable allows for quick and easy data management in real time
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on; overspeed errors are also eliminated
- Functions include Origin Set, Zero Setting, Automatic Power On/Off and inch/mm conversion (on inch/metric models only)
- Alarm: Low Voltage, Counting Value Composition Error
- Constructed of hardened stainless steel for better durability and longevity
- IP67 protection eliminates dust ingress, protects against temporary water submersion; permits use in environments exposed to cutting oil, dust, etc.
- Unnecessary to wipe or clean the scale
- Supplied with a fitted plastic case
Technical Data
| Technology: | Digimatic |
|---|---|
| Max Response Speed: | Unlimited |
| Display: | LCD |
| Battery: | SR44 (1 pc.) 938882 |
| SPC Output: | Yes |
| Repeatability: | 0.01mm |
Product List
| Order No.: | Product Image: | Units: | Length Standard: | Battery Life: | IP Rating: | Range: | Resolution: | Accuracy: | Mass: | Optional Accessories: |
|---|---|---|---|---|---|---|---|---|---|---|

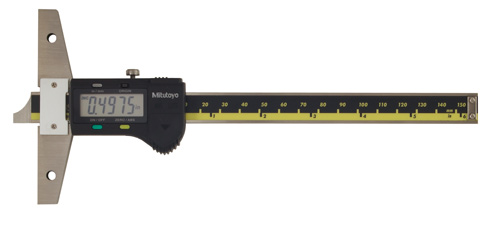

| 571-201-30 |  |
Metric | ABSOLUTE electrostatic capacitance type linear encoder | Approx. 5 years under normal use | - | 0-150mm | 0.01mm | ±0.02mm | 192g | - |
| 571-202-30 | - | Metric | ABSOLUTE electrostatic capacitance type linear encoder | Approx. 5 years under normal use | - | 0-200mm | 0.01mm | ±0.02mm | 212g | - |

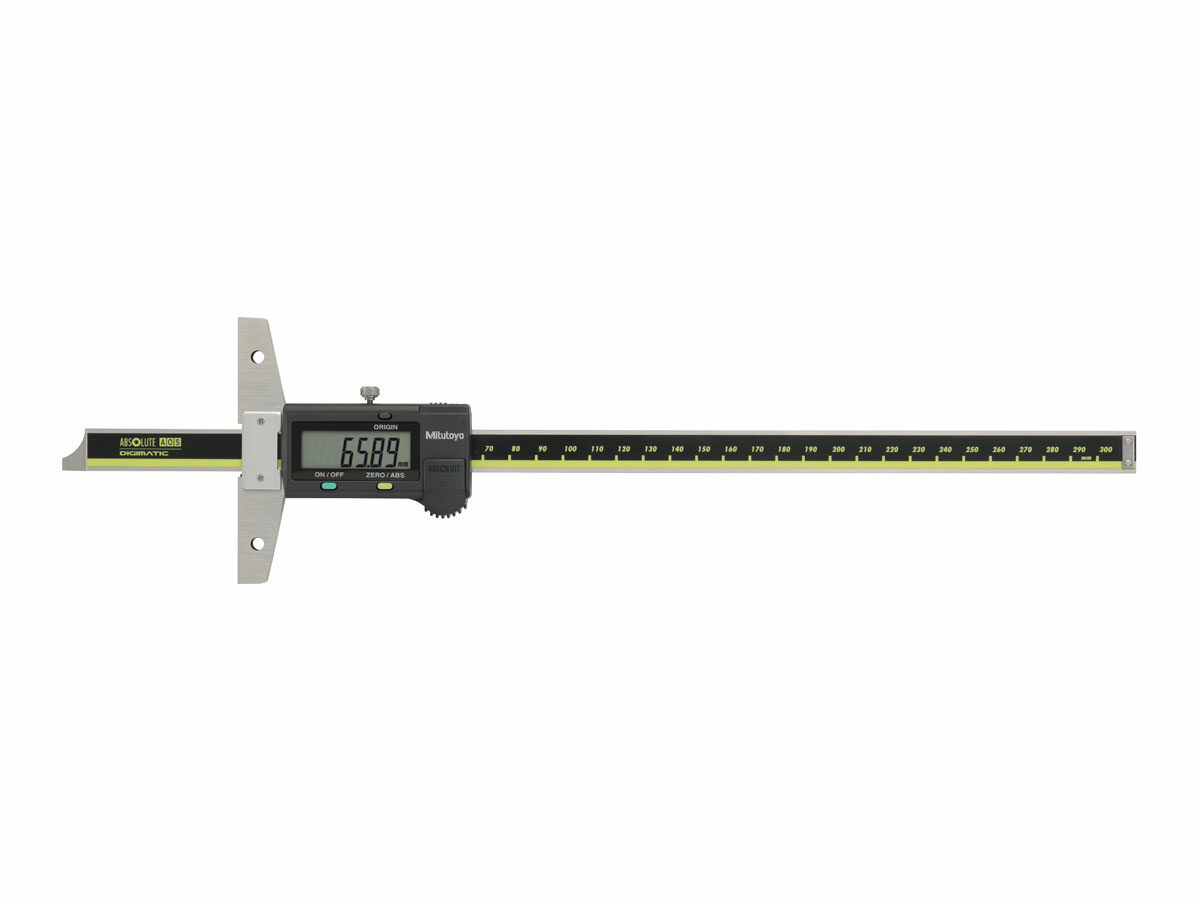

| 571-203-30 |  |
Metric | ABSOLUTE electrostatic capacitance type linear encoder | Approx. 5 years under normal use | - | 0-300mm | 0.01mm | ±0.03mm | 310g | - |
| 571-204-10 | - | Metric | ABSOLUTE electrostatic capacitance type linear encoder | Approx. 3 years under normal use | - | 0-450mm | 0.01mm | ±0.05mm | 1270g | - |
| 571-205-10 | - | Metric | ABSOLUTE electrostatic capacitance type linear encoder | Approx. 3 years under normal use | - | 0-600mm | 0.01mm | ±0.05mm | 1400g | - |
| 571-206-10 | - | Metric | ABSOLUTE electrostatic capacitance type linear encoder | Approx. 3 years under normal use | - | 0-750mm | 0.01mm | ±0.06mm | 1530g | - |
| 571-207-10 | - | Metric | ABSOLUTE electrostatic capacitance type linear encoder | Approx. 3 years under normal use | - | 0-1000mm | 0.01mm | ±0.07mm | 1760g | - |
| 571-211-30 |  |
Metric, Inch | ABSOLUTE electrostatic capacitance type linear encoder | Approx. 5 years under normal use | - | 0-150mm / 0-6" | 0.01mm / 0.0005" | ±0.02mm / ±.001" | 192g | - |
| 571-212-30 | - | Metric, Inch | ABSOLUTE electrostatic capacitance type linear encoder | Approx. 5 years under normal use | - | 0-200mm / 0-8" | 0.01mm / 0.0005" | ±0.02mm / ±.001" | 212g | - |
| 571-214-10 | - | Metric, Inch | ABSOLUTE electrostatic capacitance type linear encoder | Approx. 3 years under normal use | - | 0-450mm / 0-18" | 0.01mm / 0.0005" | ±0.05mm / ±.002" | 1270g | - |
| 571-215-10 | - | Metric, Inch | ABSOLUTE electrostatic capacitance type linear encoder | Approx. 3 years under normal use | - | 0-600mm / 0-24" | 0.01mm / 0.0005" | ±0.05mm / ±.002" | 1400g | - |

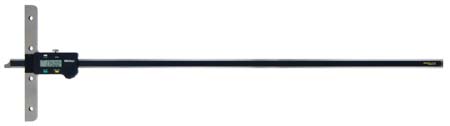

| 571-216-10 |  |
Metric, Inch | ABSOLUTE electrostatic capacitance type linear encoder | Approx. 3 years under normal use | - | 0-750mm / 0-30" | 0.01mm / 0.0005" | ±0.06mm / ±.0025" | 1530g | - |
| 571-217-10 | - | Metric, Inch | ABSOLUTE electrostatic capacitance type linear encoder | Approx. 3 years under normal use | - | 0-1000mm / 0-40" | 0.01mm / 0.0005" | ±0.07mm / ±.0025" | 1760g | - |
| 571-251-20 | - | Metric | ABSOLUTE magnetic induction type linear encoder | Approx. 5 years under normal use | IP67 | 0-150mm | 0.01mm | ±0.02mm | 199g | - |
| 571-252-20 | - | Metric | ABSOLUTE magnetic induction type linear encoder | Approx. 5 years under normal use | IP67 | 0-200mm | 0.01mm | ±0.02mm | 219g | - |
| 571-261-20 | - | Metric, Inch | ABSOLUTE magnetic induction type linear encoder | Approx. 5 years under normal use | IP67 | 0-150mm / 0-6" | 0.01mm / 0.0005" | ±0.02mm / ±.001" | 199g | - |
| 571-262-20 | - | Metric, Inch | ABSOLUTE magnetic induction type linear encoder | Approx. 5 years under normal use | IP67 | 0-200mm / 0-8" | 0.01mm / 0.0005" | ±0.02mm / ±.001" | 219g | - |
| 571-263-10 | - | Metric, Inch | ABSOLUTE magnetic induction type linear encoder | Approx. 5 years under normal use | IP67 | 0-300mm / 0-12" | 0.01mm / 0.0005" | ±0.03mm / ±.0015" | 320g | - |
