Mitutoyo peak hold dial tension gages are widely used to determine the peak contact force of other measuring instruments, electrical relays, micro-switches, valves and precision springs.
Series 546
Peak Hold Dial Tension Gage
Features & Benefits
The Mitutoyo peak hold dial tension gage measures dynamic tension in Newtons to determine the contact force of measuring instruments as well as components such as electrical relays, micro-switches, valves and precision springs. The analog dial displays the peak force on an easy-to-read white dial face for quick reference. An anti-fraction bearing in the fulcrum helps improve measurement accuracy and repeatability. External dial indicators utilize spring-loaded jaws to make constant point contact pressure to take highly.
- Available in ranges up to 5N
- Displays peak force during measurement
- Designed to be held in one hand during use
- White dial face for easier, precise measurement readings
- Crystal is glare-free with a scratch-resistant coating
Product List
| Order No.: | Product Image: | Technology: | Min Range: | Max Range: | Graduation: |
|---|---|---|---|---|---|
| 546-133 | - | Mechanical | 10mN | 100mN | 5mN |
| 546-134 | - | Mechanical | 30mN | 300mN | 10mN |
| 546-135 | - | Mechanical | 0.06N | 0.5N | 0.02N |
| 546-136 | - | Mechanical | 0.1N | 1N | 0.05N |

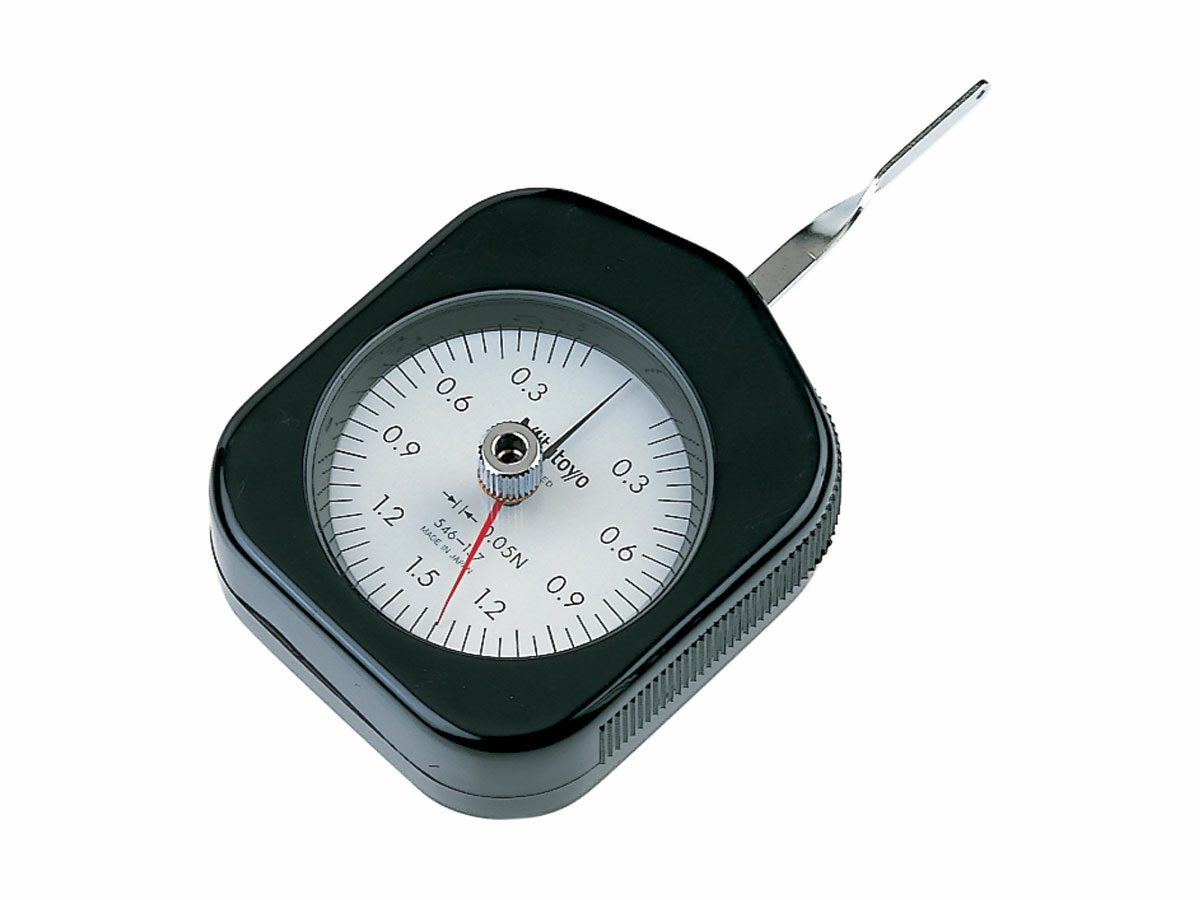

| 546-137 |  |
Mechanical | 0.15N | 1.5N | 0.05N |
| 546-138 | - | Mechanical | 3N | 3N | 0.1N |
| 546-139 | - | Mechanical | 0.6N | 5N | 0.2N |
